Consider the circuit shown in the figure (Figure 1).

Question

Question

Consider the circuit shown in the figure (Figure 1).

For related problemsolving tips and strategies, you may want to view a Video Tutor Solution of Series versus parallel combinations.

Part A

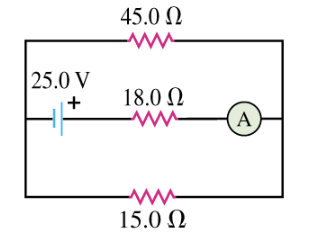

Find the reading of the idealized ammeter if the battery has an internal resistance of 3.76 Ω.

science physics

Add a comment Improve this question Transcribed image text

Answer 1

✔ Recommended Answer

Answer #1

Add a comment

Answer 2

Similar Homework Help Questions

In the circuit in (Figure 1) the capacitors are all initially uncharged, the battery has no internal resistance, and the ammeter is idealized.

In the circuit in (Figure 1) the capacitors are all initially uncharged, the battery has no internal resistance, and the ammeter is idealized.For related problemsolving tips and strategies, you may want to view a Video Tutor Solution of Charging a capacitor.Part AFind the reading of the ammeter just after the switch S is closed.Part BFind the reading of the ammeter after the switch has been closed for a very long time.
Part A In the circuit shown in (Figure 1) the batteries have negligible internal resistance and...

In the circuit shown in (Figure 1) the batteries have negligible internal resistance and the meters are both idealized. With the switch S open, the voltmeter reads 11.0 V.For related problem solving tips and strategies, you may want to view a Video Tutor Solution of A complex network.Part AFind the emf ε of the battery.Part BWhat will the ammeter read when the switch is closed?
In the circuit shown in (Figure 1) all meters are idealized and the batteries have no appreciable Internal resistance.

In the circuit shown in (Figure 1) all meters are idealized and the batteries have no appreciable Internal resistance. For related problem solving tips and strategies, you may want to view a Video Tutor Solution of A complex network. Part B Find the reading of the voltmeter with the switch S open. PartC With the switch closed, find the reading of the voltmeter. Part D With the switch closed, find the reading of the ammeter. Part E Which way (up or down) does the curent fiow through the switch?

ul Review Constants Consider the circuit shown in (Figure 1). Suppose that C = 16.0 nF,...

ul Review Constants Consider the circuit shown in (Figure 1). Suppose that C = 16.0 nF, L = 26.0 mH, and R = 70.0 12. Part A For related problemsolving tips and strategies, you may want to view a Video Tutor Solution of An underdamped l- P-C series circuit. Calculate the oscillation frequency of the circuit once the capacitor has been charged and the switch has been connected to point a. Express your answer in hertz. I ALO ROO? 1...
A circuit consists of a series combination of 6.00-kΩ and 5.00-kΩ resistors connected across a 50.0-V...

A circuit consists of a series combination of 6.00-kΩ and 5.00-kΩ resistors connected across a 50.0-V battery having negligible internal resistance. You want to measure the true potential difference (that is, the potential difference without the meter present) across the 5.00-kΩresistor using a voltmeter having an internal resistance of 10.0 kΩ. You may want to review (Pages 858 - 862) . For related problemsolving tips and strategies, you may want to view a Video Solution of Measuring resistance. Part A...
Part A Constants A capacitor is charged to a potential of 12.0 V and is then...

Part A Constants A capacitor is charged to a potential of 12.0 V and is then connected to a voltmeter having an internal resistance of 3.50 M2. After a time of 3.90 s the voltmeter reads 2.8 V. What is the capacitance? 0 AEO O ? You may want to review (Pages 862-866). C- For related problemsolving tips and strategies, you may want to view a Video Tutor Solution of Discharging a capacitor. Submit Request Answer Part B What is...

In the circuit shown in (Figure 1) both capacitors are initially charged to 40.0 V Part...

In the circuit shown in (Figure 1) both capacitors are initially charged to 40.0 VFor related problem-solving tips and strategies, you may want to view a Video Tutor Solution of Discharging a capacitor.Part AHow long after closing the switch S will the potential across each capacitor be reduced to 15.0 V ?Part BWhat will be the current at that time?
Consider a circuit containing a 24 V battery and a 15 Ω resistor. We want to...

Consider a circuit containing a 24 V battery and a 15 Ω resistor. We want to mesure the current in the circuit with an ammeter of internal resistance 3 mΩ and the voltage drop across the resistor with a voltmeter having an internal resistance of 100 kΩ. a. How should be the ammeter connected (series or parallel)? b. How should be the voltmeter connected (series or parallel)? c. Draw a schematic of the circuit d. Calculate the current across the...
for the circuit in the following figure, both meters are idealized.please break it down the circuit,...

for the circuit in the following figure, both meters are idealized.please break it down the circuit, and answer questions a and b. For the circuit shown in the following figure both meters are idealized, the battery has no appreciable internal resistance, and the ammeter reads 1.37 A. (Let R1-52.0 Ω, R2-27.0 Ω, and R3-R4-17 Ω·) (a) What does the voltmeter read? (b) what is the emf ε of the battery? R3 Ri R4 10.012 35.0 Ω a. 256 V b.465...

For the circuit shown in the figure both meters are idealized, the battery has no appreciable...

For the circuit shown in the figure both meters are idealized, the battery has no appreciable internal resistance, and the ammeter reads 1.55 A.1.What does the voltmeter read?2.What is the emf ε of the battery?

Consider the circuit shown in the figure (Figure 1).
