A circuit consists of a series combination of 6.00-kΩ and 5.00-kΩ resistors connected across a 50.0-V...

A circuit consists of a series combination of 6.00-kΩ and 5.00-kΩ resistors connected across a 50.0-V battery having negligible internal resistance. You want to measure the true potential difference (that is, the potential difference without the meter present) across the 5.00-kΩresistor using a voltmeter having an internal resistance of 10.0 kΩ.

You may want to review (Pages 858 - 862) .

For related problemsolving tips and strategies, you may want to view a Video Solution of Measuring resistance.

Part A

What potential difference does the voltmeter measure across the 5.00-kΩ resistor?

nothing

   V

V



SubmitRequest Answer

Part B

What is the true potential difference across this resistor when the meter is not present?

nothing

   V

V



SubmitRequest Answer

Part C

By what percentage is the voltmeter reading in error from the true potential difference?
%error

%error

=

nothing

 %

SubmitRequest Answer

Return to AssignmentProvide Feedback
science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

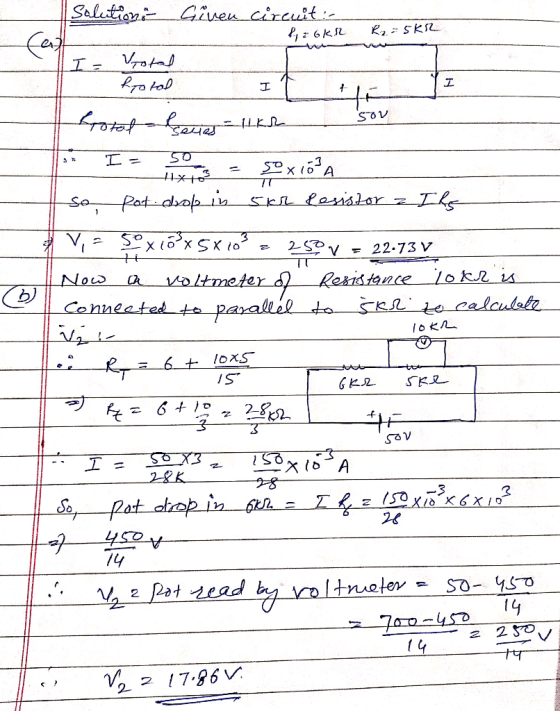

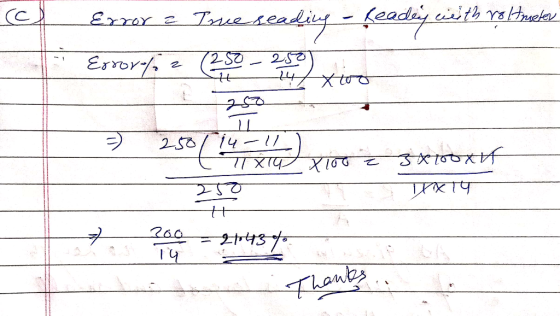

Answer #1

application of ohm law

0 0
