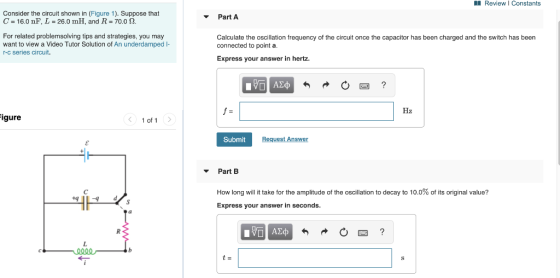

ul Review Constants Consider the circuit shown in (Figure 1). Suppose that C = 16.0 nF,...
Exercise 30.40 For the circuit of Fig.30.17 in the textbook, let C = 14.0 nF, L...
Exercise 30.40 For the circuit of Fig.30.17 in the textbook, let C = 14.0 nF, L = 21.0 mll, and R = 74.0 22. Constants Part A Calculate the oscillation frequency of the circuit once the capacitor has been charged and the switch has been connected to point a VO ΑΣΦ ? f Hz Submit Request Answer Part B How long will it take for the amplitude of the oscillation to decay to 10.0% of its original value? lva AED...
Please solve Part B II Review Constants Suppose the inductor in the circuit shown in (Figure...
Please solve Part B
II Review Constants Suppose the inductor in the circuit shown in (Figure 1) with a resonant radian frequency of 5000 rad/'s has a value of 10 mH. Submit Previous Answers Correct - Part B Calculate the roots of the characteristic equation for R = 120 32 Express your answers in radians per second to three significant figures separated by a comma. Enter your answers in rectangular form. YAXD Hvec RO ? 81.82 = Submit Previous Answers...
Calculate the oscillation frequency of the circuit once the capacitor has been charged and the switch...
Calculate the oscillation frequency of the circuit once the capacitor has been charged and the switch has been connected to point a Constants For the circuit of Fig.30.17 in the textbook, let C 14.0 nF , L 30.0 mH, and R 79.02 Hz Submit Previous Answers Request Answer X Incorrect; Try Again; 5 attempts remaining Part B How long will it take for the amplitude of the oscillation to decay to 10.0% of its original value? Submit Part C What...
Review Constants The voltage applied to the circuit shown in (Figure 1) at t = 0...
Review Constants The voltage applied to the circuit shown in (Figure 1) at t = 0 is 75 cos(4000t -60°) V, where t is in seconds. The circuit resistance is 400 12 and the initial current in the 75 mH inductor is zero. Find the numerical value of i after the switch has been closed for 850 us. Express your answer to two significant figures and include the appropriate units. Value Units Submit Request Answer Figure < 1 of 1...
Scale the bandpass filter in (Figure 1) so that the center frequency is 180 kHz and...
Scale the bandpass filter in (Figure 1) so that the center frequency is 180 kHz and the quality factor is 8, using a 2.5 nF capacitor. Figure < 1 of 1 > 8k 310 mH 10 nF Part A Determine the value of the resistor of the scaled filter Express your answer to three significant figures and include the appropriate units. R = Value Units Submit Request Answer Part B Determine the value of the inductor of the scaled filter...
Review Constants The current shown in (Figure 1) is applied to a 350 nF capacitor. The...
Review Constants The current shown in (Figure 1) is applied to a 350 nF capacitor. The initial voltage on the capacitor is zero. Part A Find the charge on the capacitor at t = 30 jus Express your answer to three significant figures and include the appropriate units. IT μΑ q= 25.103 O Submit Previous Answers Request Answer Part B Find the voltage on the capacitor at t = 50 js. Express your answer to three significant figures and include...
Constants The batteries shown in the circuit in the figure have zero internal resistances and emf...
Constants The batteries shown in the circuit in the figure have zero internal resistances and emf values Ej = 12.0 V and E2 = 15.8 V, respectively. The resistors have resistances R1 =7.40 and R2 = 10.8 0. R www & R & Part A Find the current through resistor Ri. ΑΣΦ D. SH ? I = A Submit Request Answer Part B Find the current through resistor R2. IVO ALO ? 11 A Submit Request Answer Part C Find...
Problem 10.7 9 of 14 >> A Review Constants Consider the circuit in (Figure 1). Part...
Problem 10.7 9 of 14 >> A Review Constants Consider the circuit in (Figure 1). Part A Find the average power delivered by the ideal current source in the circuit ift= 100 cos 1250/ mA. Express your answer to three significant figures and include the appropriate units. P= Value Units Submit Request Answer Figure 1 of 1 > Provide Feedback Next > 5k 80 nF
Constants Part A Consider the circuit shown in (Figure 1). Suppose that 9 kΩ Find the...
Constants Part A Consider the circuit shown in (Figure 1). Suppose that 9 kΩ Find the current i in the circuit by making a succession of appropriate source transformations Express your answer to three significant figures and include the appropriate units i,Value Units Submit Request Answer Figure 1 of 1 Part B Work back through the circuit to find the magnitude of the power developed by the 120 V source Express your answer to three significant figures and include the...
Problem 21.61 Review PartA Consider the circuit shown in the figure(Figure 1). Suppose the four resistors...
Problem 21.61 Review PartA Consider the circuit shown in the figure(Figure 1). Suppose the four resistors in this circuit have the values R-10 Ω , R 7.2 S2, R3 6.42, and R4 12 2, and that the emf of the battery is E = 18 V . Find the current through each resistor using the rules for series and parallel resistors. Express your answers using two significant figures separated by commas. I1, I2,I3, I4- Submit Request Answer Figure 1 of...
Exercise 30.40 For the circuit of Fig.30.17 in the textbook, let C = 14.0 nF, L = 21.0 mll, and R = 74.0 22. Constants Part A Calculate the oscillation frequency of the circuit once the capacitor has been charged and the switch has been connected to point a VO ΑΣΦ ? f Hz Submit Request Answer Part B How long will it take for the amplitude of the oscillation to decay to 10.0% of its original value? lva AED...
Please solve Part B
II Review Constants Suppose the inductor in the circuit shown in (Figure 1) with a resonant radian frequency of 5000 rad/'s has a value of 10 mH. Submit Previous Answers Correct - Part B Calculate the roots of the characteristic equation for R = 120 32 Express your answers in radians per second to three significant figures separated by a comma. Enter your answers in rectangular form. YAXD Hvec RO ? 81.82 = Submit Previous Answers...
Calculate the oscillation frequency of the circuit once the capacitor has been charged and the switch has been connected to point a Constants For the circuit of Fig.30.17 in the textbook, let C 14.0 nF , L 30.0 mH, and R 79.02 Hz Submit Previous Answers Request Answer X Incorrect; Try Again; 5 attempts remaining Part B How long will it take for the amplitude of the oscillation to decay to 10.0% of its original value? Submit Part C What...
Review Constants The voltage applied to the circuit shown in (Figure 1) at t = 0 is 75 cos(4000t -60°) V, where t is in seconds. The circuit resistance is 400 12 and the initial current in the 75 mH inductor is zero. Find the numerical value of i after the switch has been closed for 850 us. Express your answer to two significant figures and include the appropriate units. Value Units Submit Request Answer Figure < 1 of 1...
Scale the bandpass filter in (Figure 1) so that the center frequency is 180 kHz and the quality factor is 8, using a 2.5 nF capacitor. Figure < 1 of 1 > 8k 310 mH 10 nF Part A Determine the value of the resistor of the scaled filter Express your answer to three significant figures and include the appropriate units. R = Value Units Submit Request Answer Part B Determine the value of the inductor of the scaled filter...
Review Constants The current shown in (Figure 1) is applied to a 350 nF capacitor. The initial voltage on the capacitor is zero. Part A Find the charge on the capacitor at t = 30 jus Express your answer to three significant figures and include the appropriate units. IT μΑ q= 25.103 O Submit Previous Answers Request Answer Part B Find the voltage on the capacitor at t = 50 js. Express your answer to three significant figures and include...
Constants The batteries shown in the circuit in the figure have zero internal resistances and emf values Ej = 12.0 V and E2 = 15.8 V, respectively. The resistors have resistances R1 =7.40 and R2 = 10.8 0. R www & R & Part A Find the current through resistor Ri. ΑΣΦ D. SH ? I = A Submit Request Answer Part B Find the current through resistor R2. IVO ALO ? 11 A Submit Request Answer Part C Find...
Problem 10.7 9 of 14 >> A Review Constants Consider the circuit in (Figure 1). Part A Find the average power delivered by the ideal current source in the circuit ift= 100 cos 1250/ mA. Express your answer to three significant figures and include the appropriate units. P= Value Units Submit Request Answer Figure 1 of 1 > Provide Feedback Next > 5k 80 nF
Constants Part A Consider the circuit shown in (Figure 1). Suppose that 9 kΩ Find the current i in the circuit by making a succession of appropriate source transformations Express your answer to three significant figures and include the appropriate units i,Value Units Submit Request Answer Figure 1 of 1 Part B Work back through the circuit to find the magnitude of the power developed by the 120 V source Express your answer to three significant figures and include the...
Problem 21.61 Review PartA Consider the circuit shown in the figure(Figure 1). Suppose the four resistors in this circuit have the values R-10 Ω , R 7.2 S2, R3 6.42, and R4 12 2, and that the emf of the battery is E = 18 V . Find the current through each resistor using the rules for series and parallel resistors. Express your answers using two significant figures separated by commas. I1, I2,I3, I4- Submit Request Answer Figure 1 of...
