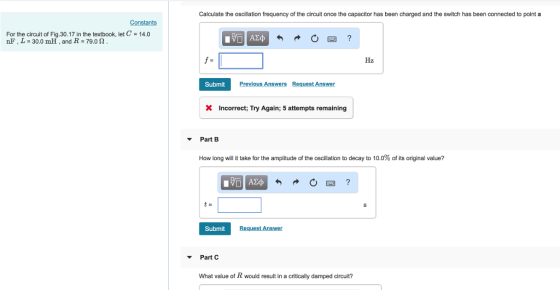

Calculate the oscillation frequency of the circuit once the capacitor has been charged and the switch has been connected to point a Constants For the circuit of Fig.30.17 in the textbook, let C 14.0 nF , L 30.0 mH, and R 79.02 Hz Submit Previous Answers Request Answer X Incorrect; Try Again; 5 attempts remaining Part B How long will it take for the amplitude of the oscillation to decay to 10.0% of its original value? Submit Part C What value of R would result in a critically damped circuit?

0 0
Add a comment Improve this question Transcribed image text
Answer #1

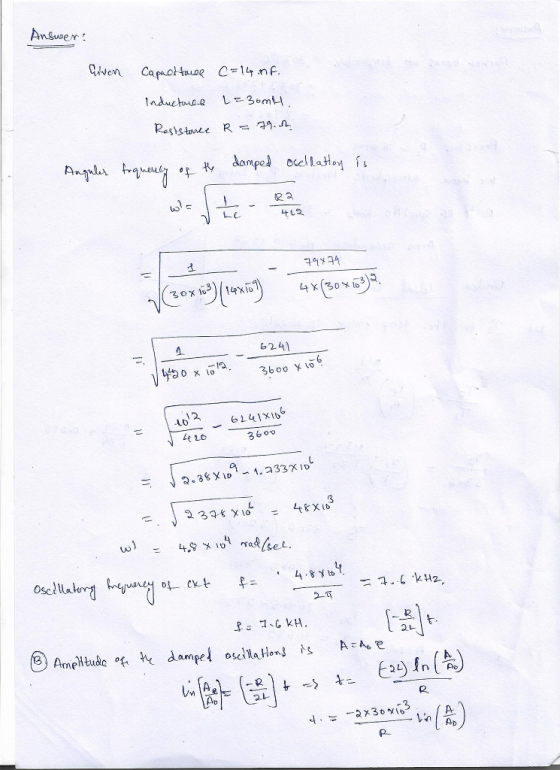

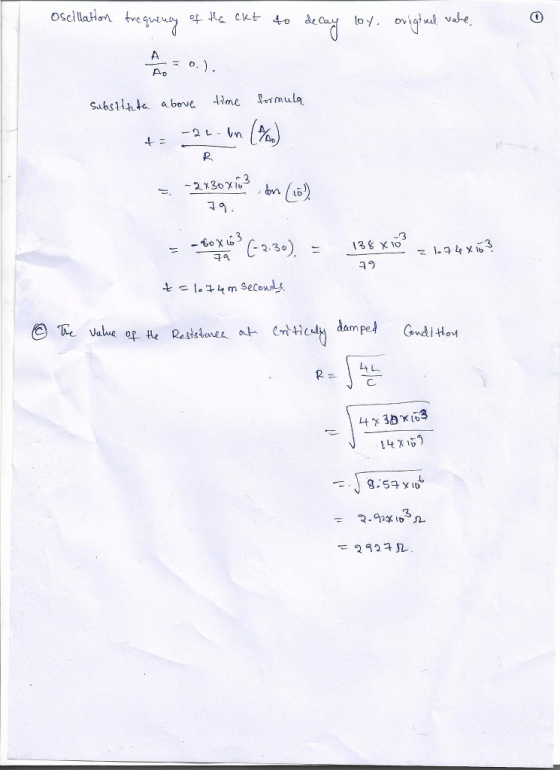

624 3600 x 10 Le 2b 360 3 oscla Ar AdA. Ad
