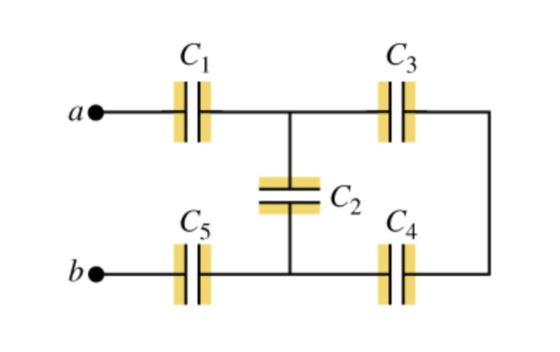

In the figure (Figure 1), C1 = C5 = 8.3 μF and C2= C3 = C4 = 4.3 μF. The applied potential is Vab = 250 V.

Question

Question

C1 C3 =C2 C5 СА be

a) What is the equivalent capacitance of the network between points a and b?

b) Calculate the charge on capacitor C1.

c) Calculate the potential difference across capacitor C1.

d) Calculate the charge on capacitor C2.

e) Calculate the potential difference across capacitor C2.

f) Calculate the charge on capacitor C3.

g) Calculate the potential difference across capacitor C3.

h) Calculate the charge on capacitor C4.

i) Calculate the potential difference across capacitor C4.

j) Calculate the charge on capacitor C5.

k) Calculate the potential difference across capacitor C5.

science physics

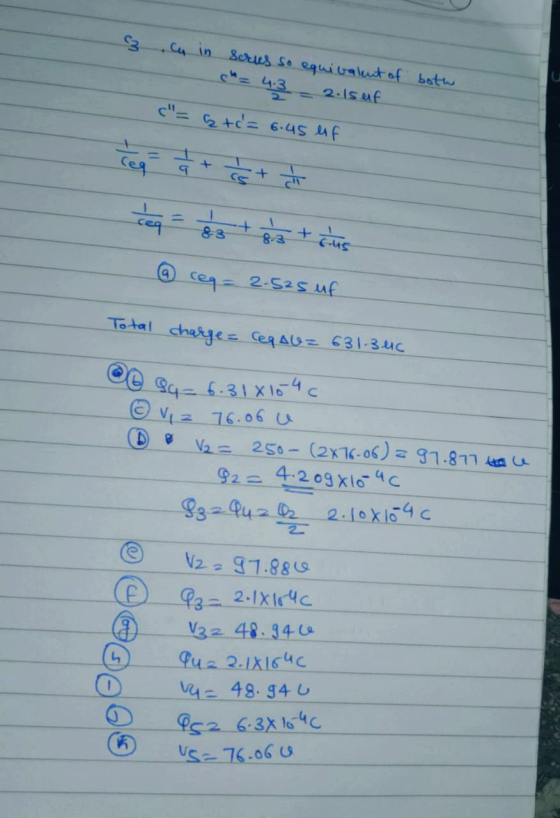

Answer 1
