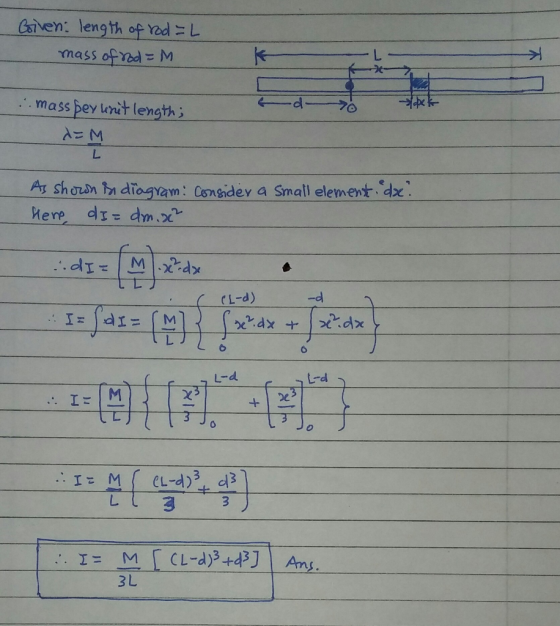

Calculate by direct integration the moment of inertia for a thin rod of mass M and length L about an axis located distance d from one end.
Calculate by direct integration the moment of inertia for a thin rod of mass M and length L about an axis located distance d from one end. Express your answer in terms of the given quantities. I = ________________________
Homework Answers
Add Answer to:
Calculate by direct integration the moment of inertia for a thin rod of mass M and length L about an axis located distance d from one end.
1. A thin rod of length L and total mass M has a linear mass density...
1. A thin rod of length L and total mass M has a linear mass density that varies with position as λ(x)-γ?, where x = 0 is located at the left end of the rod and γ has dimensions M/L3. ĮNote: requires calculus] (a) Find γ in terms of the total mass M and the length L. (b) Calculate the moment of inertia of this rod about an axis through its left end, oriented perpen dicular to the rod; expressed...
A very thin, straight, uniform rod has a length of 3.00 m and a total mass...
A very thin, straight, uniform rod has a length of 3.00 m and a total mass of 7.00 kg. Treating the rod as essentially a line segment of mass (distributed uniformly), do the following: (i) Use integration to prove that the rod's center of mass is located at its center point. (Reminders: dmnds mass (and that axis is perpendicular to the rod). with the previous result-to calculate lemr the moment of inertia of the rod about an axis through one...
Consider a thin rod of length L and mass M situated with one end at the...
Consider a thin rod of length L and mass M
situated with one end at the origin x = 0 of the
coordinate system as shown
Mostly need help with part B. Thank you
a) Four 1 kg boxes sit on a 5 m long uniform rod of mass 4 kg, such that the total mass of the system is 8 kg. The boxes are spaced 1 m apart, with the first box sitting at the left end of the...
A thin rod of mass M and length L has a fixed rotation axis a distance...
A thin rod of mass M and length L has a fixed rotation axis a distance L/6 from one end. (a) Using the parallel-axis theorem, find the moment of inertia of the rod about its rotation axis. (b) Suppose the rod is held horizontally at rest and then released. Draw a free-body diagram of the rod at the moment of its release, and find its angular acceleration at this moment. (Remember that gravity acts at the rod’s center.) (c) Find...
1. a. A very thin, straight, uniform rod has a length of 3.00 m and a...
1. a. A very thin, straight, uniform rod has a length of 3.00 m and a total mass of 700 kg. Treating the rod as essentially a line segment of mass (distributed uniformly), do the following: (i) Use integration to prove that the rod's center of mass is located at its center point. ii) Now use integration to calculatethe moment of inertia of the rod about an axis through that center of (ii) Now use two different methods-first by direct...
(a) Knowing that the moment of inertia of a thin uniform metallic rod of mass m...
(a) Knowing that the moment of inertia of a thin uniform metallic rod of mass m and length L about an axis through its center of mass is (1/12) ml?, what is its moment of inertial about a parallel axis through one of its ends (show your calculation). (b) A physical pendulum consisting of a thin metallic rod of mass m = 200.0 g and of length L = 1.000 m is suspended from the upper end by a frictionless...
L- Pivot Point 13.) A uniform, thin rod of length L and mass M is allowed to pivot about its end,...
L- Pivot Point 13.) A uniform, thin rod of length L and mass M is allowed to pivot about its end, as shown in the figure above (a) Using integral calculus, derive the rotational inertia for the rod around its end to show that it is ML2/3 The rod is fixed at one end and allowed to fall from the horizontal position A through the vertical position B. (b) Derive an expression for the velocity of the free end of...
(a) Knowing that the moment of inertia of a thin uniform metallic rod of mass m...
(a) Knowing that the moment of inertia of a thin uniform metallic rod of mass m and length L about an axis through its center of mass is (1/12) mL?. what is its moment of inertial about a parallel axis through one of its ends (show your calculation). (b) A physical pendulum consisting of a thin metallic rod of mass m = 200.0 g and of length L - 1.000 m is suspended from the upper end by a frictionless...
The Parallel-Axis Theorem allows one to find the moment of inertia of an object if the...
The Parallel-Axis Theorem allows one to find the moment of inertia of an object if the moment of inertia through the center of mass (c.o.m.) is known and the second axis is parallel to the axis through the c.o.m.. The equation is given by I= Icom +md2, where Icom is the moment of inertia about an axis through the c.o.m., m is the mass of the object, d is the perpendicular distance from the axis through the c.o.m. to the...
Consider a thin rod of length L whose mass per unit of length is given by...
Consider a thin rod of length L whose mass per unit of length is given by λ(x)=M/3L^2(x + L/4). Calculate (a) the mass of the rod and (b) the moment of inertia about an axis through the rod at L/2.
1. A thin rod of length L and total mass M has a linear mass density that varies with position as λ(x)-γ?, where x = 0 is located at the left end of the rod and γ has dimensions M/L3. ĮNote: requires calculus] (a) Find γ in terms of the total mass M and the length L. (b) Calculate the moment of inertia of this rod about an axis through its left end, oriented perpen dicular to the rod; expressed...
A very thin, straight, uniform rod has a length of 3.00 m and a total mass of 7.00 kg. Treating the rod as essentially a line segment of mass (distributed uniformly), do the following: (i) Use integration to prove that the rod's center of mass is located at its center point. (Reminders: dmnds mass (and that axis is perpendicular to the rod). with the previous result-to calculate lemr the moment of inertia of the rod about an axis through one...
Consider a thin rod of length L and mass M
situated with one end at the origin x = 0 of the
coordinate system as shown
Mostly need help with part B. Thank you
a) Four 1 kg boxes sit on a 5 m long uniform rod of mass 4 kg, such that the total mass of the system is 8 kg. The boxes are spaced 1 m apart, with the first box sitting at the left end of the...
1. a. A very thin, straight, uniform rod has a length of 3.00 m and a total mass of 700 kg. Treating the rod as essentially a line segment of mass (distributed uniformly), do the following: (i) Use integration to prove that the rod's center of mass is located at its center point. ii) Now use integration to calculatethe moment of inertia of the rod about an axis through that center of (ii) Now use two different methods-first by direct...
(a) Knowing that the moment of inertia of a thin uniform metallic rod of mass m and length L about an axis through its center of mass is (1/12) ml?, what is its moment of inertial about a parallel axis through one of its ends (show your calculation). (b) A physical pendulum consisting of a thin metallic rod of mass m = 200.0 g and of length L = 1.000 m is suspended from the upper end by a frictionless...
L- Pivot Point 13.) A uniform, thin rod of length L and mass M is allowed to pivot about its end, as shown in the figure above (a) Using integral calculus, derive the rotational inertia for the rod around its end to show that it is ML2/3 The rod is fixed at one end and allowed to fall from the horizontal position A through the vertical position B. (b) Derive an expression for the velocity of the free end of...
(a) Knowing that the moment of inertia of a thin uniform metallic rod of mass m and length L about an axis through its center of mass is (1/12) mL?. what is its moment of inertial about a parallel axis through one of its ends (show your calculation). (b) A physical pendulum consisting of a thin metallic rod of mass m = 200.0 g and of length L - 1.000 m is suspended from the upper end by a frictionless...
