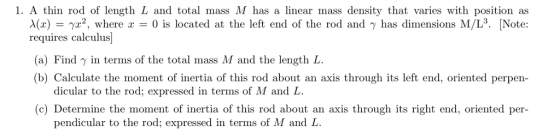

![1. A thin rod of length L and total mass M has a linear mass density that varies with position as λ(x)-γ?, where x = 0 is located at the left end of the rod and γ has dimensions M/L3. ĮNote: requires calculus] (a) Find γ in terms of the total mass M and the length L. (b) Calculate the moment of inertia of this rod about an axis through its left end, oriented perpen dicular to the rod; expressed in terms of M and L (c) Determine the moment of inertia of this rod about an axis through its right end, oriented per- pendicular to the rod; expressed in terms of M and L](http://img.homeworklib.com/questions/8235c0a0-c00b-11eb-9be4-096e91a8d6dd.png?x-oss-process=image/resize,w_560)
Homework Answers
Add Answer to:
1. A thin rod of length L and total mass M has a linear mass density...
Consider a thin rod of length L whose mass per unit of length is given by...
Consider a thin rod of length L whose mass per unit of length is given by λ(x)=M/3L^2(x + L/4). Calculate (a) the mass of the rod and (b) the moment of inertia about an axis through the rod at L/2.
A very thin, straight, uniform rod has a length of 3.00 m and a total mass...
A very thin, straight, uniform rod has a length of 3.00 m and a total mass of 7.00 kg. Treating the rod as essentially a line segment of mass (distributed uniformly), do the following: (i) Use integration to prove that the rod's center of mass is located at its center point. (Reminders: dmnds mass (and that axis is perpendicular to the rod). with the previous result-to calculate lemr the moment of inertia of the rod about an axis through one...
1. a. A very thin, straight, uniform rod has a length of 3.00 m and a...
1. a. A very thin, straight, uniform rod has a length of 3.00 m and a total mass of 700 kg. Treating the rod as essentially a line segment of mass (distributed uniformly), do the following: (i) Use integration to prove that the rod's center of mass is located at its center point. ii) Now use integration to calculatethe moment of inertia of the rod about an axis through that center of (ii) Now use two different methods-first by direct...
Three identical thin rods, each of length L an mass m, are welded perpendicular to one...
Three identical thin rods, each of length L an mass m, are welded perpendicular to one another as shown in Figure P10.23. The assembly is rotated about an axis that passes through the end of one rod and is parallel to another Determine the moment of inertia of this structure. (Answer in terms of m and L.) Axis of rotationn Figure P10.23
A thin rod of mass M and length L has a fixed rotation axis a distance...
A thin rod of mass M and length L has a fixed rotation axis a distance L/6 from one end. (a) Using the parallel-axis theorem, find the moment of inertia of the rod about its rotation axis. (b) Suppose the rod is held horizontally at rest and then released. Draw a free-body diagram of the rod at the moment of its release, and find its angular acceleration at this moment. (Remember that gravity acts at the rod’s center.) (c) Find...
Calculate by direct integration the moment of inertia for a thin rod of mass M and length L about an axis located distance d from one end.
Calculate by direct integration the moment of inertia for a thin rod of mass M and length L about an axis located distance d from one end. Express your answer in terms of the given quantities. I = ________________________
The dogs model a baseball bat as a rod of increasing linear mass density that goes as: λ = 1.2x moment of inertia if the bat is length L and it is swung about the low density end? (b) What is the mom...
The dogs model a baseball bat as a rod of increasing linear mass density that goes as: λ = 1.2x moment of inertia if the bat is length L and it is swung about the low density end? (b) What is the moment of inertia if it is swung about an axis that is 0.1L away from the low density end? 2. . (a) what is the
The dogs model a baseball bat as a rod of increasing linear mass...
A thin, uniform rod has length L and the linear density a (i.e. total mass M=al)....
A thin, uniform rod has length L and the linear density a (i.e. total mass M=al). A point mass m is placed at distance x from one end of the rod, along the axis of the rod. Calculate the gravitational force of the rod on the point mass m. (Hint: element of the mass is dM = adx) -GmM/x? O-GmM/(L2-x2) -GmM/(x+.5L) -GmM/(x2+Lx)
(a) Knowing that the moment of inertia of a thin uniform metallic rod of mass m...
(a) Knowing that the moment of inertia of a thin uniform metallic rod of mass m and length L about an axis through its center of mass is (1/12) ml?, what is its moment of inertial about a parallel axis through one of its ends (show your calculation). (b) A physical pendulum consisting of a thin metallic rod of mass m = 200.0 g and of length L = 1.000 m is suspended from the upper end by a frictionless...
Use calculus to derive the moment of inertia of a uniform rod of length L and...
Use calculus to derive the moment of inertia of a uniform rod of
length L and mass M rotating about an axis at 0.25L.
Addn Problem: Use calculus to derive the moment of inertia of a uniform rod of length L and mass M rotating about an axis at 0.251
A very thin, straight, uniform rod has a length of 3.00 m and a total mass of 7.00 kg. Treating the rod as essentially a line segment of mass (distributed uniformly), do the following: (i) Use integration to prove that the rod's center of mass is located at its center point. (Reminders: dmnds mass (and that axis is perpendicular to the rod). with the previous result-to calculate lemr the moment of inertia of the rod about an axis through one...
1. a. A very thin, straight, uniform rod has a length of 3.00 m and a total mass of 700 kg. Treating the rod as essentially a line segment of mass (distributed uniformly), do the following: (i) Use integration to prove that the rod's center of mass is located at its center point. ii) Now use integration to calculatethe moment of inertia of the rod about an axis through that center of (ii) Now use two different methods-first by direct...
Three identical thin rods, each of length L an mass m, are welded perpendicular to one another as shown in Figure P10.23. The assembly is rotated about an axis that passes through the end of one rod and is parallel to another Determine the moment of inertia of this structure. (Answer in terms of m and L.) Axis of rotationn Figure P10.23
The dogs model a baseball bat as a rod of increasing linear mass density that goes as: λ = 1.2x moment of inertia if the bat is length L and it is swung about the low density end? (b) What is the moment of inertia if it is swung about an axis that is 0.1L away from the low density end? 2. . (a) what is the
The dogs model a baseball bat as a rod of increasing linear mass...
A thin, uniform rod has length L and the linear density a (i.e. total mass M=al). A point mass m is placed at distance x from one end of the rod, along the axis of the rod. Calculate the gravitational force of the rod on the point mass m. (Hint: element of the mass is dM = adx) -GmM/x? O-GmM/(L2-x2) -GmM/(x+.5L) -GmM/(x2+Lx)
(a) Knowing that the moment of inertia of a thin uniform metallic rod of mass m and length L about an axis through its center of mass is (1/12) ml?, what is its moment of inertial about a parallel axis through one of its ends (show your calculation). (b) A physical pendulum consisting of a thin metallic rod of mass m = 200.0 g and of length L = 1.000 m is suspended from the upper end by a frictionless...
Use calculus to derive the moment of inertia of a uniform rod of
length L and mass M rotating about an axis at 0.25L.
Addn Problem: Use calculus to derive the moment of inertia of a uniform rod of length L and mass M rotating about an axis at 0.251
