A long straight wire is in the same plane as a rectangular, conducting loop. The wire carries a constant current I as shown in the figure.

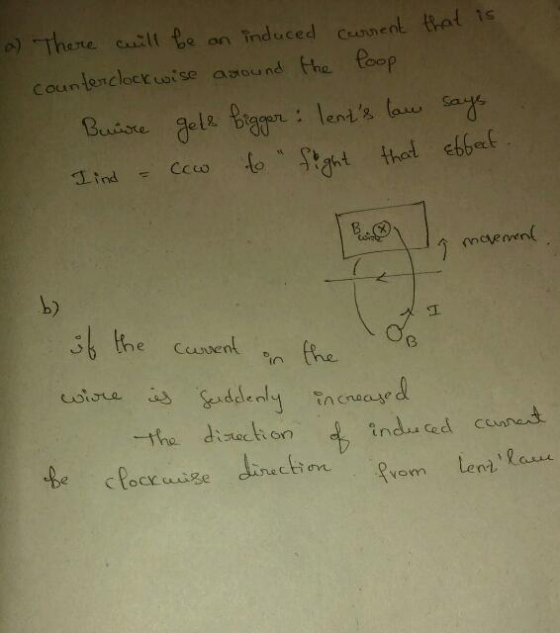

A long straight wire is in the same plane as a rectangular, conducting loop. The wire carries a constant current I as shown in the figure. a) If the wire is suddenly moved toward the loop, in which direction will the induced current be? b) If the current in the wire is suddenly increased, in which direction will the induced current be? EXPLAIN your answers!
Homework Answers
Add Answer to:
A long straight wire is in the same plane as a rectangular, conducting loop. The wire carries a constant current I as shown in the figure.
A long, straight wire carries a current and lies in the plane of a rectangular loops of wire, as shown in the figure.
A long, straight wire carries a current and lies in the plane of a rectangular loops of wire, as shown in the figure. Determine the maximum emf, |epsilon|, induced in the loop by the magnetic field created by the current in the straight wire.
In the figure below, the current in the long, straight wire is l1 = 5.00 A, and the wire lies in the plane of the rectangular loop, which carries 13.0 A
Problem 5 In the figure below, the current in the long, straight wire is l1 = 5.00 A, and the wire lies in the plane of the rectangular loop, which carries 13.0 A. The dimensions shown are c = 0.100 m, a = 0.150 m, and l = 0.500 m. Find the magnitude and direction of the net force exerted by the magnetic field due to the straight wire on the loop.
The long, straight wire shown in the figure a carries constant current I. A metal bar with length L is moving at constant velocity v, as shown in the figure. Point a is a distance d from the wire.
The long, straight wire shown in the figure a carries constant current I. A metal bar with length L is moving at constant velocity v, as shown in the figure. Point a is a distance d from the wire. Part A Calculate the emf induced in the bar. Part B Which point, a or b, is at higher potential? Part C If the bar is replaced by a rectangular wire loop of resistance R (the figure b), what is the magnitude of the current induced in...
A long wire carries a current in the direction shown above. The current I varies linearly with time t as follows: I-ct, where c is a positive constant. The long wire is in the same plane as a...
A long wire carries a current in the direction shown above. The current I varies linearly with time t as follows: I=ct, where c is a positive constant. The long wire is in the same plane as a square loop of wire of side b, as shown in the diagram. The side of the loop nearest the long wire is parallel to it and a distance a from it. The loop has a resistance R and is fixed in space. a. Determine...
A long straight wire and rectangular thin wire loop shown in the figure below are in...
A long straight wire and rectangular thin wire loop shown in the figure below are in the same plane with the geometrical dimensions specified as a=0.444 cm, b=2.75 cm and c=80.5 cm. The total resistance of the wire loop R=1.95 1. The long wire is driven by a triangle-wave generator resulting in the time-dependent current waveform I(t) also depicted in the figure. The magnitude of the waveform Io=13.24 A and the frequency f=56 Hz (temporal period of the waveform T=1/f)....
In the figure below, the current in the long, straight wire is I1 = 6.60 A and the wire lies in the plane of the rectangular loop, which carries a current I2 = 10.0 A.
In the figure below, the current in the long, straight wire is I1 = 6.60 A and the wire lies in the plane of the rectangular loop, which carries a current I2 = 10.0 A. The dimensions in the figure are c = 0.100 m, a = 0.150 m, and l = 0.690 m. Find the magnitude and direction of the net force exerted on the loop by the magnetic field created by the wire.
In the figure below, the current in the long, straight wire is I1 = 3.30 A and the wire lies in the plane of the rectangular loop, which carries a current I2 = 10.0 A
In the figure below, the current in the long, straight wire is
I1 = 3.30 A and the wire lies in the plane of the rectangular loop,
which carries a current I2 = 10.0 A. The dimensions in the figure
are c = 0.100 m, a = 0.150 m, and ℓ = 0.605 m. Find the magnitude
and direction of the net force exerted on the loop by the magnetic
field created by the wire.
The current I in a long, straight wire is constant and is directed toward the right as in (Figure 1).
The current I in a long, straight wire is constant and is directed toward the right as in (Figure 1). Conducting loops A, B, C, and D are moving, in the directions shown, near the wire. Part A For each loop, is the direction of the induced current clockwise or counterclockwise, or is the induced current zero? Drag the appropriate items to their respective bins. Part B For each loop, what is the direction of the net force that the wire exerts on the...
A long, straight wire carries a current I. A rectangular loop with two sides parallel to...
A long, straight wire carries a current I. A rectangular loop with two sides parallel to the straight wire has sides a and b with its near side a distance d from the straight wire, as shown in Figure below. Compute the magnetic flux through the rectangular loop, and evaluate your answer for a = 0.042 cm, b = 0.096 cm, d = 0.019 cm, and I = 15 A.
Long straight wire carries current to the right of the page. A rectangular loop is positioned...
Long straight wire carries current to the right of the page. A rectangular loop is positioned directly under the wire in the plane of the page and carries current in clockwise direction. The net force exerted by this loop on the straight wire with current is directed a. towards the loop b. away from the loop c. to the right of the page d. to the left of the page e. is zero
A long straight wire and rectangular thin wire loop shown in the figure below are in the same plane with the geometrical dimensions specified as a=0.444 cm, b=2.75 cm and c=80.5 cm. The total resistance of the wire loop R=1.95 1. The long wire is driven by a triangle-wave generator resulting in the time-dependent current waveform I(t) also depicted in the figure. The magnitude of the waveform Io=13.24 A and the frequency f=56 Hz (temporal period of the waveform T=1/f)....
In the figure below, the current in the long, straight wire is
I1 = 3.30 A and the wire lies in the plane of the rectangular loop,
which carries a current I2 = 10.0 A. The dimensions in the figure
are c = 0.100 m, a = 0.150 m, and ℓ = 0.605 m. Find the magnitude
and direction of the net force exerted on the loop by the magnetic
field created by the wire.
