Long straight wire carries current to the right of the page. A rectangular loop is positioned...

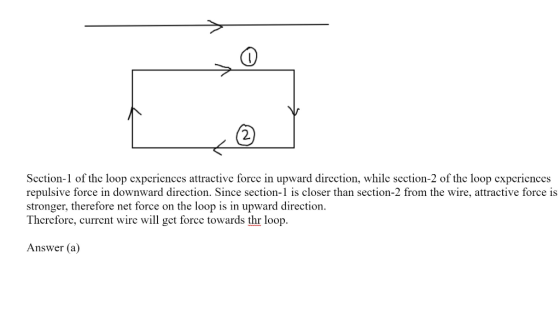

Long straight wire carries current to the right of the page. A rectangular loop is positioned directly under the wire in the plane of the page and carries current in clockwise direction. The net force exerted by this loop on the straight wire with current is directed
a. towards the loop
b. away from the loop
c. to the right of the page
d. to the left of the page
e. is zero
Homework Answers
Add Answer to:
Long straight wire carries current to the right of the page. A
rectangular loop is positioned...
A flat rectangular wire loop is positioned next to a long straight current-carrying wire
Problem 6: A flat rectangular wire loop is positioned next to a long straight current-carrying wire. Both the loop and the wire are in the plane of the page, and the direction of the current is clearly indicated in the figure.Part (a) Which image best indicates the direction of the magnetic field due to the current in the long straight wire at a point inside the loop? Part (b) How does the magnitude of the magnetic field change as the perpendicular...
In the figure below, the current in the long, straight wire is l1 = 5.00 A, and the wire lies in the plane of the rectangular loop, which carries 13.0 A
Problem 5 In the figure below, the current in the long, straight wire is l1 = 5.00 A, and the wire lies in the plane of the rectangular loop, which carries 13.0 A. The dimensions shown are c = 0.100 m, a = 0.150 m, and l = 0.500 m. Find the magnitude and direction of the net force exerted by the magnetic field due to the straight wire on the loop.
In the figure below, the current in the long, straight wire is I1 = 6.60 A and the wire lies in the plane of the rectangular loop, which carries a current I2 = 10.0 A.
In the figure below, the current in the long, straight wire is I1 = 6.60 A and the wire lies in the plane of the rectangular loop, which carries a current I2 = 10.0 A. The dimensions in the figure are c = 0.100 m, a = 0.150 m, and l = 0.690 m. Find the magnitude and direction of the net force exerted on the loop by the magnetic field created by the wire.
In the figure below, the current in the long, straight wire is I1 = 3.30 A and the wire lies in the plane of the rectangular loop, which carries a current I2 = 10.0 A
In the figure below, the current in the long, straight wire is
I1 = 3.30 A and the wire lies in the plane of the rectangular loop,
which carries a current I2 = 10.0 A. The dimensions in the figure
are c = 0.100 m, a = 0.150 m, and ℓ = 0.605 m. Find the magnitude
and direction of the net force exerted on the loop by the magnetic
field created by the wire.
The long, straight wire carries a current of 16.0 A. A rectangular loop whose long edges...
The long, straight wire carries a current of 16.0 A. A rectangular loop whose long edges are parallel to the wire carries a current of 4.00 A. The parallel edge closest to the wire is 2.6 cm and the farthest parallel edge is 10.0 cm. Find the magnitude of the net force exerted on the loop by the magnetic field of the wire.. 82x10-5N 73x105N 8.0 x 10^-5N 75 x 10^-5N
A long, straight wire perpendicular to this page carries a current of 4.62 A directed into...
A long, straight wire perpendicular to this page carries a current of 4.62 A directed into the page. Find the magnetic field at the following points, all 10.5 cm from the wire. (a) 10.5 cm to the left of the wire magnitude direction (b) 10.5 cm directly below the wire magnitude direction (c) 10.5 cm to the right of the wire magnitude direction (d) 10.5 cm directly above the wire magnitude direction
4. (a) A long straight wire carrying a current is placed near a current-carrying rectangular loop...
4. (a) A long straight wire carrying a current is placed near
a current-carrying rectangular loop. Describe how, and why, the
loop would move as a result of the magnetic forces from the long
wire. The current in the loop is counterclockwise.
(b) Suppose that you were to put in a different
loop below the long wire (and still in the plane of the page).
Draw the shape of a loop that would...
...experience a total magnetic force of zero...
In the figure below, the current in the long, straight wire is, - 7.40 A and...
In the figure below, the current in the long, straight wire is, - 7.40 A and the wire lies in the plane of the rectangular loop, which carries a current Iz - 10.0 A. The dimensions in the figure are 0.100 m, a -0.150 m, and != 0.480 m. Find the magnitude and direction of the net force exerted on the loop by the magnetic field created by the wire. magnitude UN direction Gard to the right
In In the figure below, the current in the long, straight wire is 11 = 7.00...
In In the figure below, the current in the long, straight wire is 11 = 7.00 A and the wire lies in the plane of the rectangular loop, which carries a current 12 = 10.0 A. The dimensions in the figure are c = 0.100 m, a = 0.150 m, and f = 0.510 m. Find the magnitude and direction of the net force exerted on the loop by the magnetic field created by the wire. magnitude direction- Select-- μΝ...
A square loop of wire carries a current I. Current is flowing in a counterclockwise direction...
A square loop of wire carries a current I. Current is flowing in
a counterclockwise direction as shown.
16) If this loop is placed in a
uniform magnetic field pointing out the page, what is the direction
of the net force on the loop?
up
down
left
right
zero
17) Now the loop is placed near a
horizontal wire with current moving to the left. If the horizontal
wire is right below the loop (in the plane of the page), what is...
In the figure below, the current in the long, straight wire is
I1 = 3.30 A and the wire lies in the plane of the rectangular loop,
which carries a current I2 = 10.0 A. The dimensions in the figure
are c = 0.100 m, a = 0.150 m, and ℓ = 0.605 m. Find the magnitude
and direction of the net force exerted on the loop by the magnetic
field created by the wire.
The long, straight wire carries a current of 16.0 A. A rectangular loop whose long edges are parallel to the wire carries a current of 4.00 A. The parallel edge closest to the wire is 2.6 cm and the farthest parallel edge is 10.0 cm. Find the magnitude of the net force exerted on the loop by the magnetic field of the wire.. 82x10-5N 73x105N 8.0 x 10^-5N 75 x 10^-5N
4. (a) A long straight wire carrying a current is placed near
a current-carrying rectangular loop. Describe how, and why, the
loop would move as a result of the magnetic forces from the long
wire. The current in the loop is counterclockwise.
(b) Suppose that you were to put in a different
loop below the long wire (and still in the plane of the page).
Draw the shape of a loop that would...
...experience a total magnetic force of zero...
In the figure below, the current in the long, straight wire is, - 7.40 A and the wire lies in the plane of the rectangular loop, which carries a current Iz - 10.0 A. The dimensions in the figure are 0.100 m, a -0.150 m, and != 0.480 m. Find the magnitude and direction of the net force exerted on the loop by the magnetic field created by the wire. magnitude UN direction Gard to the right
In In the figure below, the current in the long, straight wire is 11 = 7.00 A and the wire lies in the plane of the rectangular loop, which carries a current 12 = 10.0 A. The dimensions in the figure are c = 0.100 m, a = 0.150 m, and f = 0.510 m. Find the magnitude and direction of the net force exerted on the loop by the magnetic field created by the wire. magnitude direction- Select-- μΝ...
A square loop of wire carries a current I. Current is flowing in
a counterclockwise direction as shown.
16) If this loop is placed in a
uniform magnetic field pointing out the page, what is the direction
of the net force on the loop?
up
down
left
right
zero
17) Now the loop is placed near a
horizontal wire with current moving to the left. If the horizontal
wire is right below the loop (in the plane of the page), what is...
