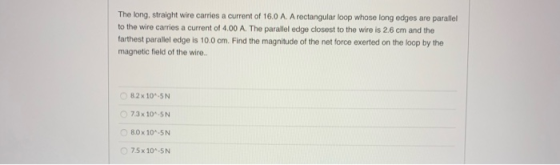

The long, straight wire carries a current of 16.0 A. A rectangular loop whose long edges...

Question

Question

science physics

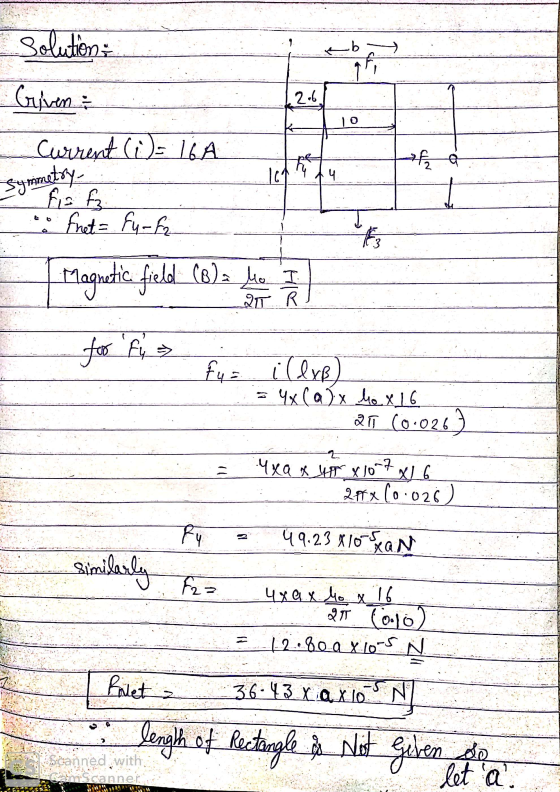

Answer 1

Answer #1

Answer 2

Similar Homework Help Questions

The long straight wire carries a current of 30 A and the rectangular loop carries a...

The long straight wire carries a current of 30 A and the rectangular loop carries a current of 20 A. Calculate the resultant force acting on the loop. Assume that a = 1.0 cm, b = 8.0 cm and L = 30 cm.
A long, straight wire carries a current I. A rectangular loop with two sides parallel to...

A long, straight wire carries a current I. A rectangular loop with two sides parallel to the straight wire has sides a and b with its near side a distance d from the straight wire, as shown in Figure below. Compute the magnetic flux through the rectangular loop, and evaluate your answer for a = 0.042 cm, b = 0.096 cm, d = 0.019 cm, and I = 15 A.
In the figure below, the current in the long, straight wire is I1 = 6.60 A and the wire lies in the plane of the rectangular loop, which carries a current I2 = 10.0 A.

In the figure below, the current in the long, straight wire is I1 = 6.60 A and the wire lies in the plane of the rectangular loop, which carries a current I2 = 10.0 A. The dimensions in the figure are c = 0.100 m, a = 0.150 m, and l = 0.690 m. Find the magnitude and direction of the net force exerted on the loop by the magnetic field created by the wire.

In the figure below, the current in the long, straight wire is I1 = 3.30 A and the wire lies in the plane of the rectangular loop, which carries a current I2 = 10.0 A

In the figure below, the current in the long, straight wire is I1 = 3.30 A and the wire lies in the plane of the rectangular loop, which carries a current I2 = 10.0 A. The dimensions in the figure are c = 0.100 m, a = 0.150 m, and ℓ = 0.605 m. Find the magnitude and direction of the net force exerted on the loop by the magnetic field created by the wire.
Long straight wire carries current to the right of the page. A rectangular loop is positioned...

Long straight wire carries current to the right of the page. A rectangular loop is positioned directly under the wire in the plane of the page and carries current in clockwise direction. The net force exerted by this loop on the straight wire with current is directed a. towards the loop b. away from the loop c. to the right of the page d. to the left of the page e. is zero
A rectangular current loop is located near a long, straight wire that carries a current of...

A rectangular current loop is located near a long, straight wire that carries a current of IW = 12 A (see the drawing). The current in the loop is IL = 22 A. Determine the magnitude of the net magnetic force that acts on the loop. N

In the figure below, the current in the long, straight wire is l1 = 5.00 A, and the wire lies in the plane of the rectangular loop, which carries 13.0 A

Problem 5 In the figure below, the current in the long, straight wire is l1 = 5.00 A, and the wire lies in the plane of the rectangular loop, which carries 13.0 A. The dimensions shown are c = 0.100 m, a = 0.150 m, and l = 0.500 m. Find the magnitude and direction of the net force exerted by the magnetic field due to the straight wire on the loop.
A long, straight wire (see the figure below) carries current I1 = 4.4 A and is...

A long, straight wire (see the figure below) carries current I1 = 4.4 A and is a distance h = 15 cm from a rectangular current loop that carries a current I2 = 1.51 A. A long, straight wire (see the figure below) carries current 11-4.4 A and is a distance h = 15 cm from a rectangular current loop that carries a current 12-1.51 A t0 2 (a) If the loop has length L = 49 cm and width...
vA rectangular current loop is located near a long, straight wire that carries a current of...

vA rectangular current loop is located near a long, straight wire that carries a current of 12 A (see the drawing). The current in the loop is 25 A. Determine the magnitude of the net magnetic force that acts on the loop. 12 A 0.11 m 25 A 0.15 m -0.50 m

3. A long straight verticalement of wire B s straight vertical segment of wire traverses a...

3. A long straight verticalement of wire B s straight vertical segment of wire traverses a magnetic field of magnitud 2 .0 T in the direction shown in the diagram. field is 0.060 m. When the switch is closed, a current of 1- e direction shown in the diagram. The length of the wire that lies in the magica 4.0 A flows through the wire, from m. When the switch is closed a current of Po to point P. Which...
