The long straight wire carries a current of 30 A and the rectangular loop carries a...

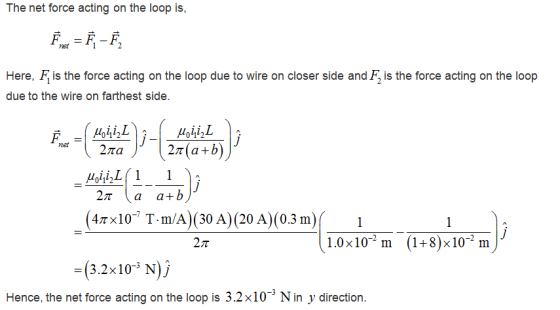

The long straight wire carries a current of 30 A and the rectangular loop carries a current of 20 A. Calculate the resultant force acting on the loop. Assume that a = 1.0 cm, b = 8.0 cm and L = 30 cm.
Homework Answers
Add Answer to:
The long straight wire carries a current of 30 A and the
rectangular loop carries a...
The long, straight wire carries a current of 16.0 A. A rectangular loop whose long edges...
The long, straight wire carries a current of 16.0 A. A rectangular loop whose long edges are parallel to the wire carries a current of 4.00 A. The parallel edge closest to the wire is 2.6 cm and the farthest parallel edge is 10.0 cm. Find the magnitude of the net force exerted on the loop by the magnetic field of the wire.. 82x10-5N 73x105N 8.0 x 10^-5N 75 x 10^-5N
In the figure, a long straight wire carries a current i1 = 25.3 A and a rectangular loop carries current i2 = 16.7 A. Ta...
In the figure, a long straight wire carries a current
i1 = 25.3 A and a rectangular loop carries
current i2 = 16.7 A. Take a = 1.41 cm,
b = 7.65 cm, and L = 43.1 cm. What is the
magnitude of the net force on the loop due to
i1?
In Fig. 29-65, a long straight wire carries a current i1 = 27.8 A and a rectangular loop carries...
In Fig. 29-65, a long straight wire carries a current i1 = 27.8 A and a rectangular loop carries current i2 = 19.6 A. Take a = 1.05 cm, b = 7.13 cm, and L = 22.8cm. What is the magnitude of the net force on the loop due to i1?Number__________Units N
Long straight wire carries current to the right of the page. A rectangular loop is positioned...
Long straight wire carries current to the right of the page. A rectangular loop is positioned directly under the wire in the plane of the page and carries current in clockwise direction. The net force exerted by this loop on the straight wire with current is directed a. towards the loop b. away from the loop c. to the right of the page d. to the left of the page e. is zero
A rectangular current loop is located near a long, straight wire that carries a current of...
A rectangular current loop is located near a long, straight wire
that carries a current of IW = 12 A (see the drawing). The current in the
loop is IL
= 22 A. Determine the magnitude of
the net magnetic force that acts on the loop. N
A long, straight wire (see the figure below) carries current I1 = 4.4 A and is...
A long, straight wire (see the figure below) carries current I1
= 4.4 A and is a distance h = 15 cm from a rectangular current loop
that carries a current I2 = 1.51 A.
A long, straight wire (see the figure below) carries current 11-4.4 A and is a distance h = 15 cm from a rectangular current loop that carries a current 12-1.51 A t0 2 (a) If the loop has length L = 49 cm and width...
A long, straight wire carries a current I. A rectangular loop with two sides parallel to...
A long, straight wire carries a current I. A rectangular loop with two sides parallel to the straight wire has sides a and b with its near side a distance d from the straight wire, as shown in Figure below. Compute the magnetic flux through the rectangular loop, and evaluate your answer for a = 0.042 cm, b = 0.096 cm, d = 0.019 cm, and I = 15 A.
In the figure, a long straight wire carries a current i1 = 26.8 A and a...
In the figure, a long straight wire carries a current
i1 = 26.8 A and a rectangular loop carries
current i2 = 28.2 A. Take a = 0.765
cm, b = 9.11 cm, and L = 37.9 cm. What is the
magnitude of the net force on the loop due to
i1?
Question 5 A long, straight wire carries a current of 14 A. Next to the wire...
Question 5 A long, straight wire carries a current of 14 A. Next to the wire is a square loop with sides 1.0 m in length. The loop carries a current of 2.5 A in the direction indicated. a. What is the direction of the net force exerted on the loop? Explain b. Calculate the magnitude of the net force acting on the loop.
A long, straight wire (see the figure below) carries current 114.2 A and is a distance...
A long, straight wire (see the figure below) carries current 114.2 A and is a distance h 15 cm from a rectangular current loop that carries a current I2 1.58 A (a) If the loop has length L = 40 cm and width w = 28 cm, what are the magnitude and direction of the force exerted by the wire on the loop? magnitude 4.19e-6 direction toward the long straight wire (b) What is the force exerted by the current...
The long, straight wire carries a current of 16.0 A. A rectangular loop whose long edges are parallel to the wire carries a current of 4.00 A. The parallel edge closest to the wire is 2.6 cm and the farthest parallel edge is 10.0 cm. Find the magnitude of the net force exerted on the loop by the magnetic field of the wire.. 82x10-5N 73x105N 8.0 x 10^-5N 75 x 10^-5N
In the figure, a long straight wire carries a current
i1 = 25.3 A and a rectangular loop carries
current i2 = 16.7 A. Take a = 1.41 cm,
b = 7.65 cm, and L = 43.1 cm. What is the
magnitude of the net force on the loop due to
i1?
A rectangular current loop is located near a long, straight wire
that carries a current of IW = 12 A (see the drawing). The current in the
loop is IL
= 22 A. Determine the magnitude of
the net magnetic force that acts on the loop. N
A long, straight wire (see the figure below) carries current I1
= 4.4 A and is a distance h = 15 cm from a rectangular current loop
that carries a current I2 = 1.51 A.
A long, straight wire (see the figure below) carries current 11-4.4 A and is a distance h = 15 cm from a rectangular current loop that carries a current 12-1.51 A t0 2 (a) If the loop has length L = 49 cm and width...
In the figure, a long straight wire carries a current
i1 = 26.8 A and a rectangular loop carries
current i2 = 28.2 A. Take a = 0.765
cm, b = 9.11 cm, and L = 37.9 cm. What is the
magnitude of the net force on the loop due to
i1?
Question 5 A long, straight wire carries a current of 14 A. Next to the wire is a square loop with sides 1.0 m in length. The loop carries a current of 2.5 A in the direction indicated. a. What is the direction of the net force exerted on the loop? Explain b. Calculate the magnitude of the net force acting on the loop.
A long, straight wire (see the figure below) carries current 114.2 A and is a distance h 15 cm from a rectangular current loop that carries a current I2 1.58 A (a) If the loop has length L = 40 cm and width w = 28 cm, what are the magnitude and direction of the force exerted by the wire on the loop? magnitude 4.19e-6 direction toward the long straight wire (b) What is the force exerted by the current...
