A long, straight wire perpendicular to this page carries a current of 4.62 A directed into...

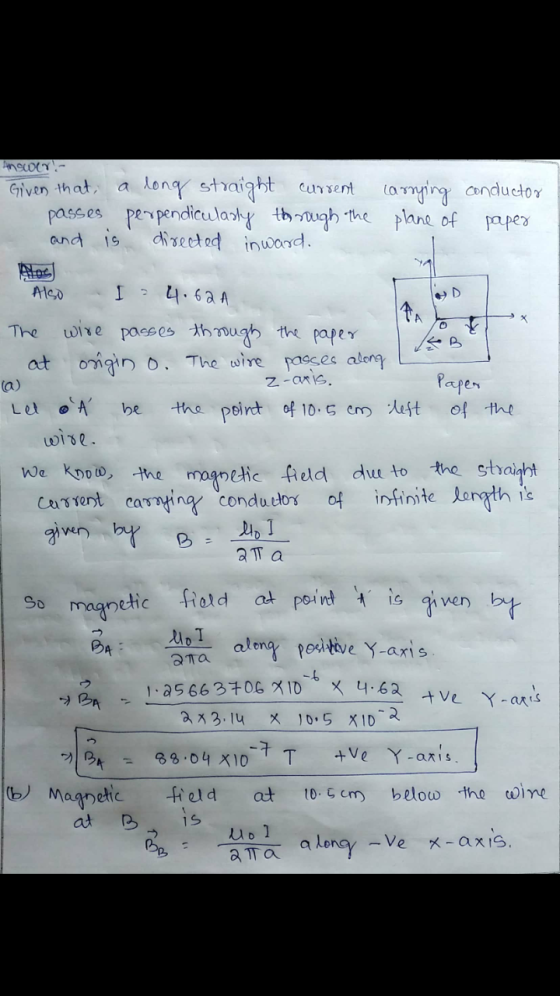

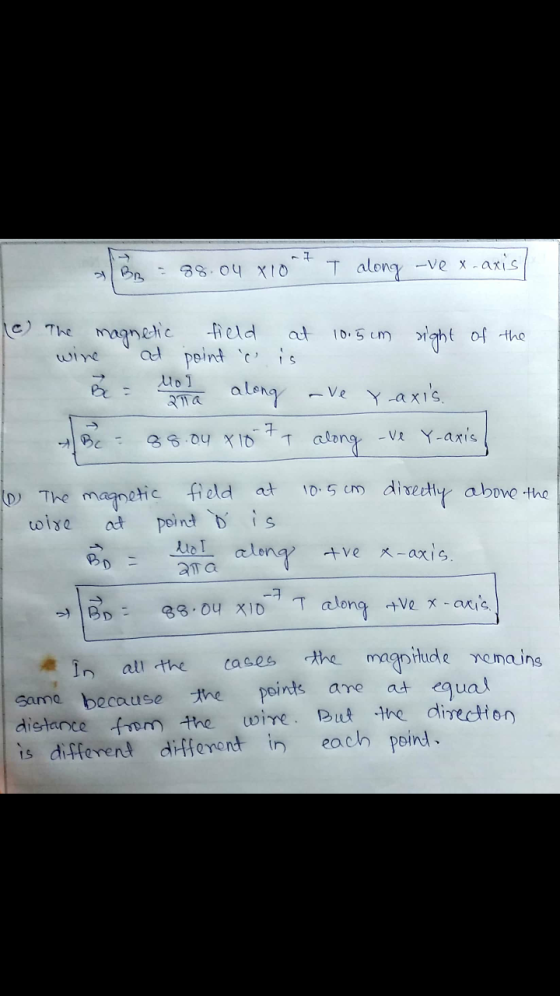

A long, straight wire perpendicular to this page carries a current of 4.62 A directed into the page. Find the magnetic field at the following points, all 10.5 cm from the wire. (a) 10.5 cm to the left of the wire magnitude direction (b) 10.5 cm directly below the wire magnitude direction (c) 10.5 cm to the right of the wire magnitude direction (d) 10.5 cm directly above the wire magnitude direction
Homework Answers
Add Answer to:
