Question

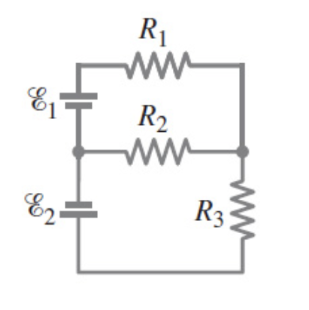

Consider the circuit shown in (Figure 1). The batteries have emfs of ε1 = 9.0 V and ε2 = 12.0 V and the resistors have values of R1 = 27Ω, R2 = 60 Ω, and R3 = 33 Ω.

Consider the circuit shown in (Figure 1). The batteries have emfs of ε1 = 9.0 V and ε2 = 12.0 V and the resistors have values of R1 = 27Ω, R2 = 60 Ω, and R3 = 33 Ω.


Determine the magnitudes of the currents in each resistor shown in the figure. Ignore internal resistance of the batteries.

Determine the directions of the currents in each resistor. Ignore internal resistance of the batteries.

1 0
Add a comment Improve this question Transcribed image text

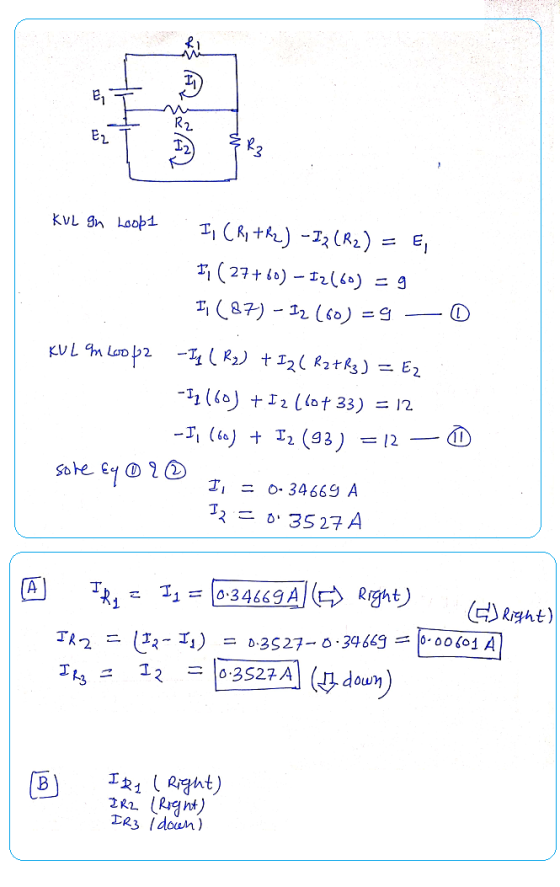

Answer #1

Please rate

if any mistake in this answer please comment i will clarify your doubt . thank you

> How did you get the I1 and I2? Your words weren't clear (solve by "" 2 "")

SmileyTheHelper Sat, Nov 13, 2021 10:11 AM

Add a comment
