A 163.8-N bird feeder is supported by three cables as shown in the figure below. Find the tension in each cable.

left cable N
right cable N
bottom cable N

(IMAGE)
http://www.webassign.net/sercp9/4-p-019.gif

science physics

Answer 1

Answer #1

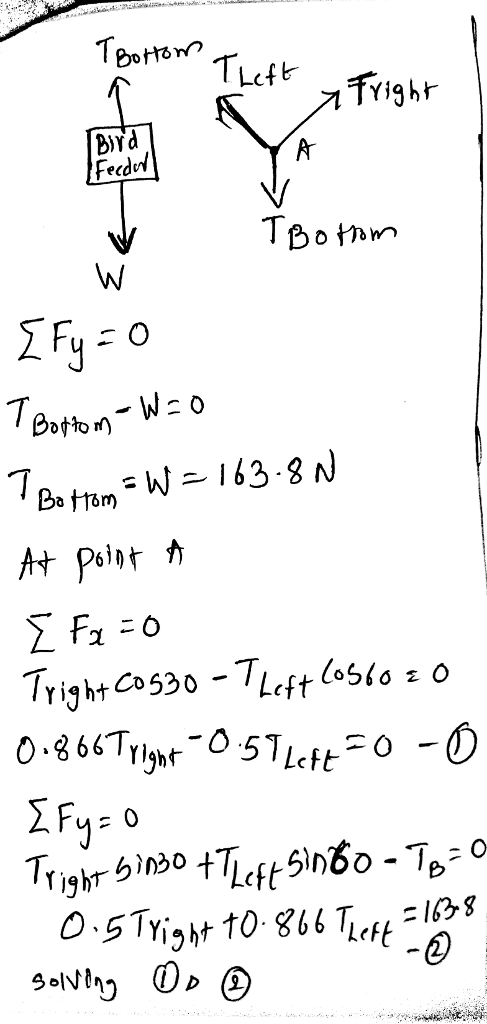

TLeft Bird Ar По Botto Left Tight O.STY

Tension in each cable

T_left=141.855 N

T_right=81.9 N

T_Bottom =163.8 N
