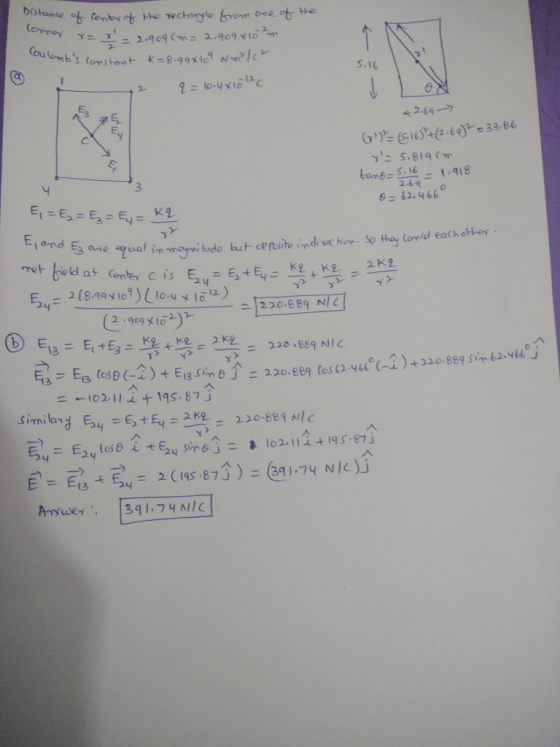

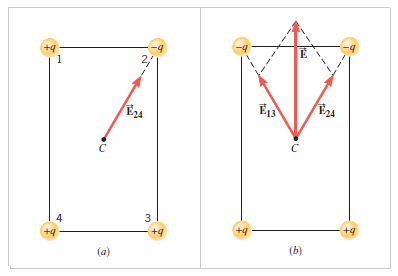

Four charges with equal magnitudes of 10.4 × 10-12 C are placed at the corners of a rectangle. The lengths of the sides of the rectangles are 2.69 cm and 5.16 cm. Find the magnitude of the electric field at the center of the rectangle in Figures a and b.
Homework Answers
Add Answer to:
Four charges with equal magnitudes of 10.4 × 10-12 C are placedat the corners of...
Four charges with equal magnitudes of 11.5x10-12 C are placed at the corners of a rectangle.
Review Conceptual Example 11 before attempting to work this problem. Four charges with equal magnitudes of 11.5x10-12 C are placed at the corners of a rectangle. The lengths of the sides of the rectangles are 2.53 cm and 4.69 cm. Find the magnitude of the electric field at the center of the rectangle in Figures a and b.
RE Review Conceptual Example 11 before attempting to work this problem. Four charges with equal magnitudes...
RE Review Conceptual Example 11 before attempting to work this problem. Four charges with equal magnitudes of 10.2 x 10 C are placed at the corners of a rectangle. The lengths of the sides of the rectangles are 3.68 cm and 5.11 cm. Find the magnitude of the electric field at the center of the rectangle in Figures a and b. h 1 E24 +4 (a) (b) (a) Number Units (b) Number Units Show Work is REQUIRED for this question:...
7. Four equal charges, each of + 7.0 /C are placed at the corners of a...
7. Four equal charges, each of + 7.0 /C are placed at the corners of a 0.50 m x 0.75 m rectangle (a) Calculate the direction and magnitude of the electric force F., on gı due to the other three charges. (b) Find the direction and magnitude of the electric field E at point P. (See Figure 1.) 42 0.75 m 93 0.50 m qi q4 Figure 1
The magnitude of each of the charges in the figure below is 8.15 x 10 12...
The magnitude of each of the charges in the figure below is 8.15 x 10 12 С. The lengths of the sides of the re tan field at the center of the rectangle in the figures below. figure 1 figure 2 es are 324 cm and 52 c Find the magnitude of he electric N/C N/C figure 1 figure 2
In the diagram below four equal positive charges are held in place on the corners of...
In
the diagram below four equal positive charges are held in place on
the corners of a square. The sides of the square have length
2L. Rank the
magnitude of the electric field at the four locations (A, B, C, D)
from least to greatest.
In the diagram below four equal positive charges are held in place on the corners of a square. The sides of the square have length 2L. Rank the magnitude of the electric field at the...
Four equal charges of +3.2×10-6 C are placed on the corners of one face of a...
Four equal charges of +3.2×10-6 C are placed on the corners of one face of a cube of edge length 14.0 cm. A charge of -3.2×10-6 C is placed at the center of the cube. What is the magnitude of the force on the charge at the center of the cube?
Four point charges of equal magnitude Q = 55 nC are placed on the corners of...
Four point charges of equal magnitude Q = 55 nC are placed on
the corners of a rectangle of sides D1 = 29 cm and D2 = 12 cm. The
charges on the left side of the rectangle are positive while the
charges on the right side of the rectangle are negative. Refer to
the figure.e) Calculate the value of the vertical component of the net
force, in newtons.f) Calculate the magnitude of the net force, in newtons, on the...
4. Three point-like charges are placed at the corners of a rectangle as shown in the...
4. Three point-like charges are placed at the corners of a rectangle as shown in the figure, a -36.0 cm and b 66.0 cm. Find the magnitude of the electric field at the center of the rectangle. Let qi -3 +15.0 uC and q-29.0 uC Lic. N/C 12 43 q1
4. Three point-like charges are placed at the corners of a rectangle as shown in the...
4. Three point-like charges are placed at the corners of a rectangle as shown in the figure, a = | 18.0 cm and b = 52.0 cm. Find the magnitude of the electric field at the center of the rectangle. N/C 92 q, 41
Four point charges are located at the corners of a square.
Four point charges are located at the corners of a square. Each charge has magnitude 1.00 nC and the square has sides of length 4.00 cm. Find the magnitude of the electric field (in N/C) at the center of the square if all of the charges are positive and three of the charges are positive and one is negative. HINT (a) all the charges are positive N/C (b) three of the charges are positive and one is negative.
RE Review Conceptual Example 11 before attempting to work this problem. Four charges with equal magnitudes of 10.2 x 10 C are placed at the corners of a rectangle. The lengths of the sides of the rectangles are 3.68 cm and 5.11 cm. Find the magnitude of the electric field at the center of the rectangle in Figures a and b. h 1 E24 +4 (a) (b) (a) Number Units (b) Number Units Show Work is REQUIRED for this question:...
7. Four equal charges, each of + 7.0 /C are placed at the corners of a 0.50 m x 0.75 m rectangle (a) Calculate the direction and magnitude of the electric force F., on gı due to the other three charges. (b) Find the direction and magnitude of the electric field E at point P. (See Figure 1.) 42 0.75 m 93 0.50 m qi q4 Figure 1
The magnitude of each of the charges in the figure below is 8.15 x 10 12 С. The lengths of the sides of the re tan field at the center of the rectangle in the figures below. figure 1 figure 2 es are 324 cm and 52 c Find the magnitude of he electric N/C N/C figure 1 figure 2
In
the diagram below four equal positive charges are held in place on
the corners of a square. The sides of the square have length
2L. Rank the
magnitude of the electric field at the four locations (A, B, C, D)
from least to greatest.
In the diagram below four equal positive charges are held in place on the corners of a square. The sides of the square have length 2L. Rank the magnitude of the electric field at the...
4. Three point-like charges are placed at the corners of a rectangle as shown in the figure, a -36.0 cm and b 66.0 cm. Find the magnitude of the electric field at the center of the rectangle. Let qi -3 +15.0 uC and q-29.0 uC Lic. N/C 12 43 q1
4. Three point-like charges are placed at the corners of a rectangle as shown in the figure, a = | 18.0 cm and b = 52.0 cm. Find the magnitude of the electric field at the center of the rectangle. N/C 92 q, 41
