Homework Answers
Add Answer to:

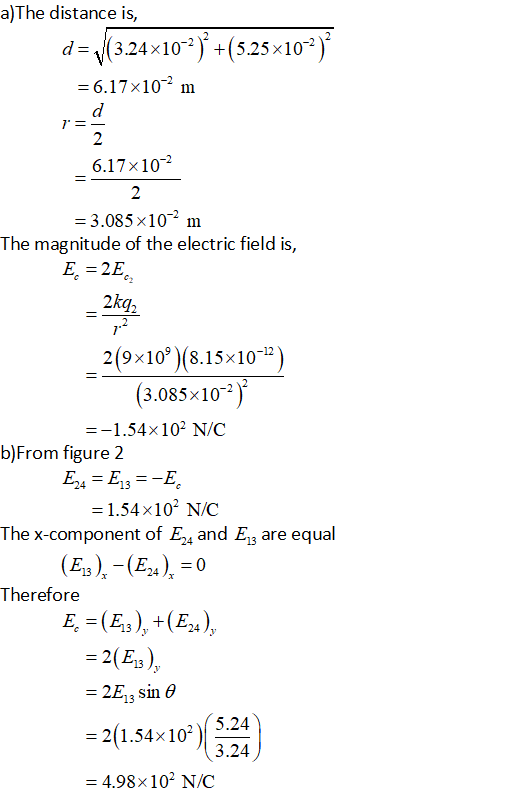

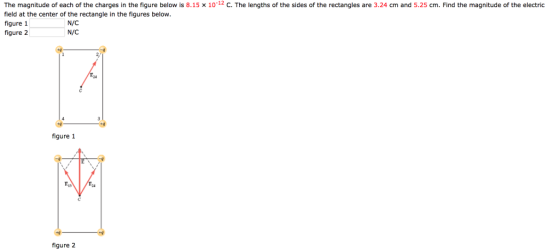

The magnitude of each of the charges in the figure below is 8.15 x 10 12...
Four charges with equal magnitudes of 10.4 × 10-12 C are placedat the corners of...
Four charges with equal magnitudes of 10.4 × 10-12 C are placed
at the corners of a rectangle. The lengths of the sides of the
rectangles are 2.69 cm and 5.16 cm. Find the magnitude of the
electric field at the center of the rectangle in Figures a and
b.
Four charges with equal magnitudes of 11.5x10-12 C are placed at the corners of a rectangle.
Review Conceptual Example 11 before attempting to work this problem. Four charges with equal magnitudes of 11.5x10-12 C are placed at the corners of a rectangle. The lengths of the sides of the rectangles are 2.53 cm and 4.69 cm. Find the magnitude of the electric field at the center of the rectangle in Figures a and b.
RE Review Conceptual Example 11 before attempting to work this problem. Four charges with equal magnitudes...
RE Review Conceptual Example 11 before attempting to work this problem. Four charges with equal magnitudes of 10.2 x 10 C are placed at the corners of a rectangle. The lengths of the sides of the rectangles are 3.68 cm and 5.11 cm. Find the magnitude of the electric field at the center of the rectangle in Figures a and b. h 1 E24 +4 (a) (b) (a) Number Units (b) Number Units Show Work is REQUIRED for this question:...
Four point charges have the same magnitude of 2.4 x 10-12 c and are fixed to...
Four point charges have the same magnitude of 2.4 x 10-12 c and are fixed to the corners of a square that is 5.1 cm on a side. Three of the charges are positive and one is negative. Determine the magnitude of the net electric field that exists at the center of the square Nu UnitšT N/C
Three point-like charges are placed at the comers of a rectangle as shown in the figure,...
Three point-like charges are placed at the comers of a rectangle as shown in the figure, a 34.0 cm and b- 52.0 cm. Find the magnitude of the electric field at the center of the rectangle. Let qi- +12.0 pC and q-390 uC N/C 42 a3 91
In the figure, four charges, given in multiples of 9.00×10-6 C form the corners of a...
In the figure, four charges, given in multiples of 9.00×10-6 C
form the corners of a square and four more charges lie at the
midpoints of the sides of the square. The distance between adjacent
charges on the perimeter of the square is d = 3.90×10-2 m. What are
the magnitude and direction of the electric field at the center of
the square? The magnitude of E, Ex, and Ey?
52| 1
In the figure, four charges, given in multiples of 2.00×10-6 C form the corners of a...
In the figure, four charges, given in multiples of
2.00×10-6 C form the corners of a square and
four more charges lie at the midpoints of the sides of the square.
The distance between adjacent charges on the perimeter of the
square is d = 4.70×10-2 m. What are the
magnitude and direction of the electric field at the center of the
square? The magnitude of E? Ex? Ey? (Answers
are E= 6.05e7 N/C, Ex= 5.32e7 N/C, Ey= 2.88e7 N/C)...
Four point charges are located at the corners of a square. Each charge has magnitude 2.80...
Four point charges are located at the corners of a square. Each charge has magnitude 2.80 nC and the square has sides of length 3.00 cm. Find the magnitude of the electric field (in N/C) at the center of the square if all of the charges are positive and three of the charges are positive and one is negative.
4. Three point-like charges are placed at the corners of a rectangle as shown in the...
4. Three point-like charges are placed at the corners of a rectangle as shown in the figure, a -36.0 cm and b 66.0 cm. Find the magnitude of the electric field at the center of the rectangle. Let qi -3 +15.0 uC and q-29.0 uC Lic. N/C 12 43 q1
Three point-like charges are placed at the corners of a rectangle as shown in the figure,...
Three point-like charges are placed at the corners of a rectangle as shown in the figure, a = 34.0 cm and b = 62.0 cm. Find the magnitude of the electric field at the center of the rectangle. Let q 1 = q 3 = +16.0 µC and q 2 = −26.0 µC.
Four charges with equal magnitudes of 10.4 × 10-12 C are placed
at the corners of a rectangle. The lengths of the sides of the
rectangles are 2.69 cm and 5.16 cm. Find the magnitude of the
electric field at the center of the rectangle in Figures a and
b.
RE Review Conceptual Example 11 before attempting to work this problem. Four charges with equal magnitudes of 10.2 x 10 C are placed at the corners of a rectangle. The lengths of the sides of the rectangles are 3.68 cm and 5.11 cm. Find the magnitude of the electric field at the center of the rectangle in Figures a and b. h 1 E24 +4 (a) (b) (a) Number Units (b) Number Units Show Work is REQUIRED for this question:...
Four point charges have the same magnitude of 2.4 x 10-12 c and are fixed to the corners of a square that is 5.1 cm on a side. Three of the charges are positive and one is negative. Determine the magnitude of the net electric field that exists at the center of the square Nu UnitšT N/C
Three point-like charges are placed at the comers of a rectangle as shown in the figure, a 34.0 cm and b- 52.0 cm. Find the magnitude of the electric field at the center of the rectangle. Let qi- +12.0 pC and q-390 uC N/C 42 a3 91
In the figure, four charges, given in multiples of 9.00×10-6 C
form the corners of a square and four more charges lie at the
midpoints of the sides of the square. The distance between adjacent
charges on the perimeter of the square is d = 3.90×10-2 m. What are
the magnitude and direction of the electric field at the center of
the square? The magnitude of E, Ex, and Ey?
52| 1
In the figure, four charges, given in multiples of
2.00×10-6 C form the corners of a square and
four more charges lie at the midpoints of the sides of the square.
The distance between adjacent charges on the perimeter of the
square is d = 4.70×10-2 m. What are the
magnitude and direction of the electric field at the center of the
square? The magnitude of E? Ex? Ey? (Answers
are E= 6.05e7 N/C, Ex= 5.32e7 N/C, Ey= 2.88e7 N/C)...
4. Three point-like charges are placed at the corners of a rectangle as shown in the figure, a -36.0 cm and b 66.0 cm. Find the magnitude of the electric field at the center of the rectangle. Let qi -3 +15.0 uC and q-29.0 uC Lic. N/C 12 43 q1
