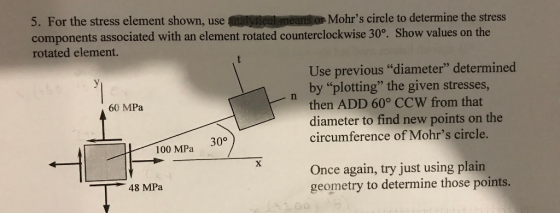

Use Mohr's circle 5. For the stress element shown, use components associated with an element rotated...
3. The state of plane stress at a point is shown on the element below. Construct Mohr's circle. Determine the principal stresses acting at this point and their orientation D,. Also determine the maximum in-plane shear stresses and the orientation of the element upon which they act. What is the state of stress if it is rotated 20° counterclockwise? (20 points) 90 MPa 60 MPa -20 MPa
For the stress state shown, use Mohr's Circle to determine the following: (a) Principal stresses σ1 and σ2, the associated shear stress τx'y', and the element orientation θp. Clearly indicate magnitude and direction. (b) Maximum in-plane shear stress τmax,in plane , the associated normal stresses σx' and σy', and the element orientation θs. Clearly indicate magnitude and direction. (c) Absolute maximum shear stress τmax,absolute · Show all work using Mohr's Circle. If your drawings do not indicate that you used Mohr's Circle appropriately, you...

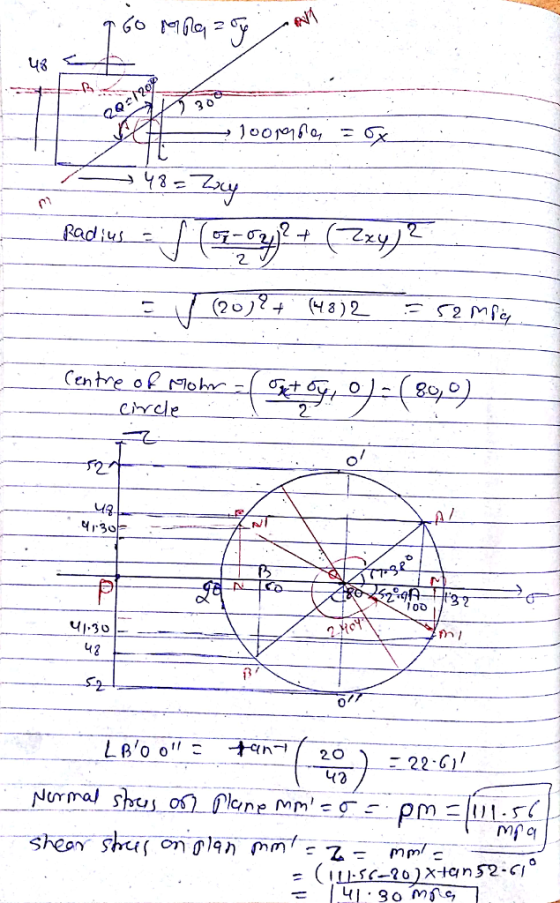

Solve using Mohr's Circle
90 MPa 30 MPa 60 MPa Fig. P7.14 7.13 through 7.16 For the given state of stress, determine the normal and shearing stresses after the element shown has been rotated through (a) 25° clockwise, (b) 10° counterclockwise. 7.36 Solve Prob. 7.14, using Mohr's circle.
Problem 1.8. Mohr's circle Draw Mohr's circle for the state of stress defined by 01 = 80 MPa, 02 = -20 MPa and T12 = 40 MPa. Using this circle, (1) calculate the stress on axes rotated 60 degrees counterclock- wise from the reference axes, and (2) determine the principal stresses and the corresponding directions. Do these results agree with the results in section 1.3.3?
your Consider the element in plane stress as shown below. () (2 points) Draw corresponding Mohr's circle coordinate axes with appropriate labels, center point A. radius of the circle (1) (3 points) Using the Mohir's circle, find the magnitude of the principal stresses and principal directions. Show them on a sketch of a properly oriented clement (c) (3 points) Using the Mohr's circle, find the magnitude of the maximun shear stress and associated normal stresses Show them on a sketch...
3. For each of the plane stress states listed below draw a Mohr's Circle diagram properly labeled, find the principal normal and shear stresses and determine the angle from the X- axis to di. Draw the principal stress element and the maximum shear stress element. (a) 0 = -8 MPa, ay = 7 MPa, Try = 6 MPa (CW) (b) 0 = 9 MPa, y = -6 MPa, Try = 3 MPa (CW) (c) 0:= -4 MPa, y = 12...
Required information Solve the following problems using Mohr's circle Given: P 84 MPa P 50 MPa Draw Mohr's circle and use it to determine the normal and shearing stresses after the element shown has been rotated through 25 clockwise. (Round the final answers to two decimal places.) Normal stresses: MPa (+ tensile; - compressive) Ox' Gy[ MPa (+tensile; - compressive) Shearing stress: Txy MPa (+CCW on the positive X-face)
Figure 4 shows an element experiencing several stress components. Determine the following: 1. The stress components Oxvxr. Oysy, and T xuy, acting on the element oriented at a counter clockwise angle = 40° from the horizontal x axis 2. The principal stresses, the maximum shear stress and their associated angles For each of the stress state calculated in parts 1 and 2, show all results on sketches of properly oriented elements. Note: Solutions MUST be obtained using Mohr's circle ONLY....
Paragraph Styles Problem 2 (6 points) For the stress element shown below: a) Draw Mohr's circle b) Use Mohr's circle to calculate: 01,02, Tmax, 0p1, 0,1 60 MPa 20 MPa 90 MPa
with drawings
Question 4 (CLO5) (6 points) The state of the stress at a point is shown on the element. Determine the following: (a) The principal stresses, and the corresponding orientation of the element (b) The maximum in-plane shear stress and the associated average normal stress at the point. Show the corresponding orientation of the element. (c) Using Mohr's circle (only), determine the stress components at the same point on another element oriented 30° counterclockwise from the position shown. Draw...
