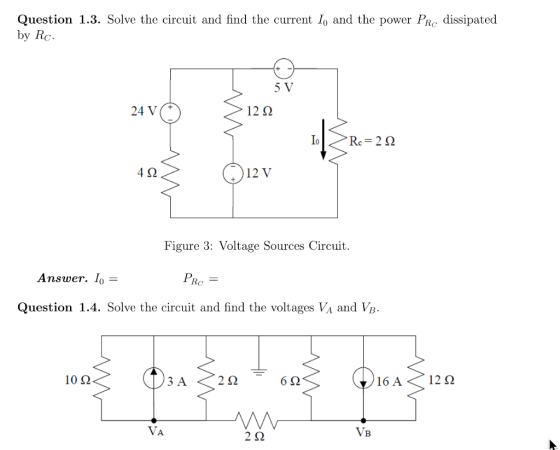

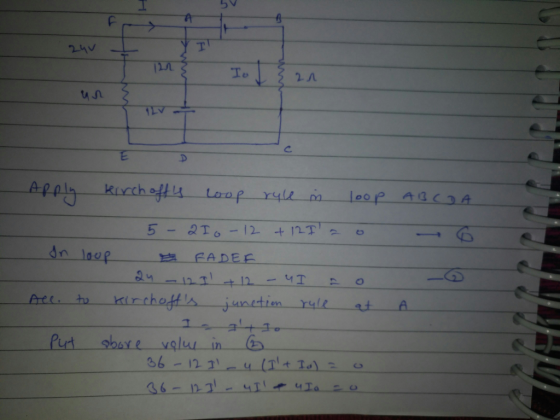

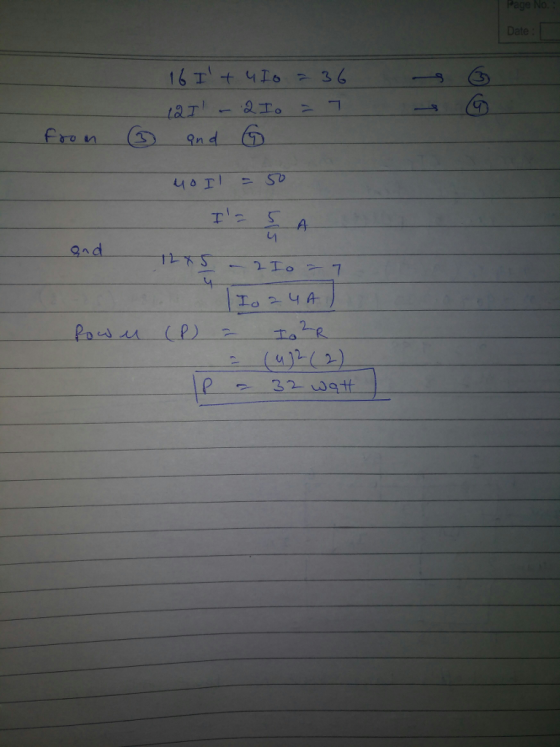

Question 1.3. Solve the circuit and find the current lo and the power PRo dissipated by...
PLEASE HELP! Jan. 31, 2018 Name: Section: I. Consider the circuit shown in figure (a) Write...
PLEASE HELP!
Jan. 31, 2018 Name: Section: I. Consider the circuit shown in figure (a) Write the mesh-current equations (b) Write the for the circuit. D。~of SOL the circuit DO NOT SOLVE shown in figure 2. The sinusoidal source is the circuit to the frequency domain er the circuit (a) Transto with the mesh-current method to find thement (b) Use phasors with the mesh (c) Find the average power absorbed source is 、dt) = 2 sin (100t + 90") volts....
It Kind of goes without saying but if you have no knowledge than dont comment or try and answer this question you dope Questions 1-3 below are about the amplifier circuit of Figure 1. Here Vcc is a...
It
Kind of goes without saying but if you have no knowledge than dont
comment or try and answer this question you dope
Questions 1-3 below are about the amplifier circuit of Figure 1. Here Vcc is a fixed voltage The base voltage vB(t) is time-varying, and is of the form vB(t) V(t) where VB is a DC offset, and vb(t) is a time-varying purely AC signal. Suppose the amplitude of vb is A. Assume that the capacitor C is...
Learning Goal: To use the node-voltage method to solve circuits with branches containing only a voltage...
Learning Goal: To use the node-voltage method to solve circuits with branches containing only a voltage source. The node-voltage method is a general technique for solving circuits. Fundamentally, it involves writing KCL equations at essential nodes. When the circuit contains a dependent source, you must write a constraint equation for each dependent source, in addition to the KCL equations. When the circuit contains one or more voltage sources that are the only components in branches connecting two essential nodes, the...
Question 8 5 pts The circuit shown in the figure below contains three resistors (R1, R2,...
Question 8 5 pts The circuit shown in the figure below contains three resistors (R1, R2, and Rs) and three batteries (VA. Vg, and V). The resistor values are: R2-2 Ohms, R2-R3-6 Ohms, and the battery voltages are VA-25 V. V8-15V, and Vc-20 V. When the circuit is connected, what will be the power dissipated by R2? VC R 3 VA VB R2 R₃ 10W 2.0 W oooo 5.0 W 6.0 W 7.5 W Question 9 5 pts The circuit...
please solve them all 2) For the circuit shown in Figure 1. Find the following: A....
please solve them all
2) For the circuit shown in Figure 1. Find the following: A. How many independent loops are present in the circuit? B. How many nodes are present in the circuit? C. Write a KVL equation at every independent loop (mesh) in the circuit in terms of the indicated voltage and current variables. D. Write a KCL equation at every node in the circuit. Write those equations using the indicated voltage variables by incorporating Ohm's Law for...
Question 4 (10 points) Solve for the node voltage V, shown in figure 4. -i5 2...
Question 4 (10 points) Solve for the node voltage V, shown in figure 4. -i5 2 1092 V w 20/90° 8 +j102 ) 10/0° Figure 4 Question 1 (10 points) a) Find the the voltages v/ , V, and vz for the circuit shown in figure 1. (2.5 points per node) b) Find the power delivered to the 10 22 resistance. (2.5 points) - M " 5 92 3.5 A 2. 53 3100 24 Figure 1
F LOpoint For the circuit shown in Figure 3 3. 1. Draw the DC equivalent circuit...
F LOpoint For the circuit shown in Figure 3 3. 1. Draw the DC equivalent circuit by opening caps and shorting inductors 2. Analyze the DC equivalent circuit as we have in previous labs (assume a region, analyze and check assumptions). Check your DC operating point using LT Spice. 3. Calculate the small signal parameters (transconductance, output resistance, input resistance) 4. Draw the AC equivalent circuit by shorting de voltage sources, opening dc current sources, shorting caps and opening inductors....
QUESTION 3 [40 marks] (1) [20 marks] Find the Thevenin equivalent of the circuit given in...
QUESTION 3 [40 marks] (1) [20 marks] Find the Thevenin equivalent of the circuit given in Figure 5. 40 оа 6Ω 0.25 Vx W 8V ЗА 4Ω b Figure 5 (ii) [20 marks] In the circuit of Figure 6, the switch has been in the close position for a long time before opening at time t = 0; a. (2 marks) Find the capacitor voltage v.(0) for t < 0. b. (15 marks) Give an expression for the capacitor voltage...
Question 3. Unregulated supply Rz IL Vin IR Ib (a) The circuit on the right shows...
Question 3. Unregulated supply Rz IL Vin IR Ib (a) The circuit on the right shows a series regulator connected to the output of an unregulated power supply. The transistor has B =50, and a 6 volt Zener diode is used. When the load current, Il, is 1 amp the de input voltage from the unregulated supply, Vin, is 11 volt, VBE = 1 volt and the Zener diode current, Iz, is 20 mA. For these conditions, calculate Iz (i)...
solve with steps Question-2: Find V. and i, in the following circuit. [3+3+4=10] 30.02 15.02 450...
solve with steps
Question-2: Find V. and i, in the following circuit. [3+3+4=10] 30.02 15.02 450 vo -5mV 3300 3301 iO 400 32002 32002 2mV 1
PLEASE HELP!
Jan. 31, 2018 Name: Section: I. Consider the circuit shown in figure (a) Write the mesh-current equations (b) Write the for the circuit. D。~of SOL the circuit DO NOT SOLVE shown in figure 2. The sinusoidal source is the circuit to the frequency domain er the circuit (a) Transto with the mesh-current method to find thement (b) Use phasors with the mesh (c) Find the average power absorbed source is 、dt) = 2 sin (100t + 90") volts....
It
Kind of goes without saying but if you have no knowledge than dont
comment or try and answer this question you dope
Questions 1-3 below are about the amplifier circuit of Figure 1. Here Vcc is a fixed voltage The base voltage vB(t) is time-varying, and is of the form vB(t) V(t) where VB is a DC offset, and vb(t) is a time-varying purely AC signal. Suppose the amplitude of vb is A. Assume that the capacitor C is...
Learning Goal: To use the node-voltage method to solve circuits with branches containing only a voltage source. The node-voltage method is a general technique for solving circuits. Fundamentally, it involves writing KCL equations at essential nodes. When the circuit contains a dependent source, you must write a constraint equation for each dependent source, in addition to the KCL equations. When the circuit contains one or more voltage sources that are the only components in branches connecting two essential nodes, the...
Question 8 5 pts The circuit shown in the figure below contains three resistors (R1, R2, and Rs) and three batteries (VA. Vg, and V). The resistor values are: R2-2 Ohms, R2-R3-6 Ohms, and the battery voltages are VA-25 V. V8-15V, and Vc-20 V. When the circuit is connected, what will be the power dissipated by R2? VC R 3 VA VB R2 R₃ 10W 2.0 W oooo 5.0 W 6.0 W 7.5 W Question 9 5 pts The circuit...
please solve them all
2) For the circuit shown in Figure 1. Find the following: A. How many independent loops are present in the circuit? B. How many nodes are present in the circuit? C. Write a KVL equation at every independent loop (mesh) in the circuit in terms of the indicated voltage and current variables. D. Write a KCL equation at every node in the circuit. Write those equations using the indicated voltage variables by incorporating Ohm's Law for...
Question 4 (10 points) Solve for the node voltage V, shown in figure 4. -i5 2 1092 V w 20/90° 8 +j102 ) 10/0° Figure 4 Question 1 (10 points) a) Find the the voltages v/ , V, and vz for the circuit shown in figure 1. (2.5 points per node) b) Find the power delivered to the 10 22 resistance. (2.5 points) - M " 5 92 3.5 A 2. 53 3100 24 Figure 1
F LOpoint For the circuit shown in Figure 3 3. 1. Draw the DC equivalent circuit by opening caps and shorting inductors 2. Analyze the DC equivalent circuit as we have in previous labs (assume a region, analyze and check assumptions). Check your DC operating point using LT Spice. 3. Calculate the small signal parameters (transconductance, output resistance, input resistance) 4. Draw the AC equivalent circuit by shorting de voltage sources, opening dc current sources, shorting caps and opening inductors....
QUESTION 3 [40 marks] (1) [20 marks] Find the Thevenin equivalent of the circuit given in Figure 5. 40 оа 6Ω 0.25 Vx W 8V ЗА 4Ω b Figure 5 (ii) [20 marks] In the circuit of Figure 6, the switch has been in the close position for a long time before opening at time t = 0; a. (2 marks) Find the capacitor voltage v.(0) for t < 0. b. (15 marks) Give an expression for the capacitor voltage...
Question 3. Unregulated supply Rz IL Vin IR Ib (a) The circuit on the right shows a series regulator connected to the output of an unregulated power supply. The transistor has B =50, and a 6 volt Zener diode is used. When the load current, Il, is 1 amp the de input voltage from the unregulated supply, Vin, is 11 volt, VBE = 1 volt and the Zener diode current, Iz, is 20 mA. For these conditions, calculate Iz (i)...
solve with steps
Question-2: Find V. and i, in the following circuit. [3+3+4=10] 30.02 15.02 450 vo -5mV 3300 3301 iO 400 32002 32002 2mV 1
