How far below the water surface should a vertical square 1m on a side with two...

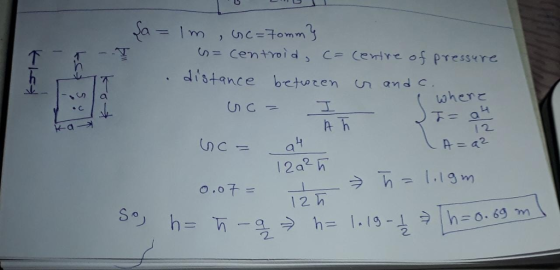

How far below the water surface should a vertical square 1m on a side with two sides horizontal to be immersed so that the center of pressure will be 70mm below the center of gravity?
a.) 0.69 m
b.) 0.79 m
c.) 0.89 m
d.) 0.99 m
Homework Answers
