Question

As shown in the figure, a ball with a mass of 0.450 g and positive charge of q=33.0 uc is suspended on a string of negligible mass in a uniform electric field Tm Uniform E-field we observe that the ball hangs at an angle of θ= 20.0° from the vertical, what is the magnitude of the electric field? Submit Answer Tries 0/10

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

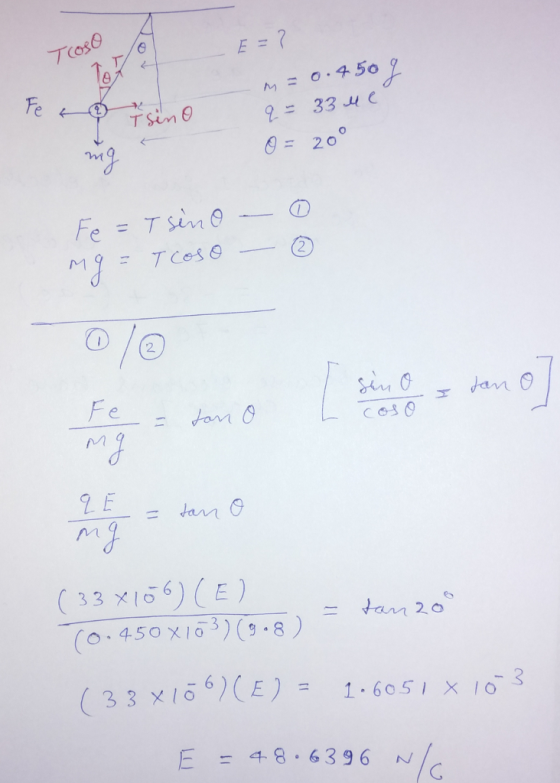

9-= 33.ue nt (33×156) (E ) (0,450×เจ๊3)(9.8) (33x1ō 6)(E) = 1.6051×10 3 E =千8.6396 л./..

0 0
Add a comment
