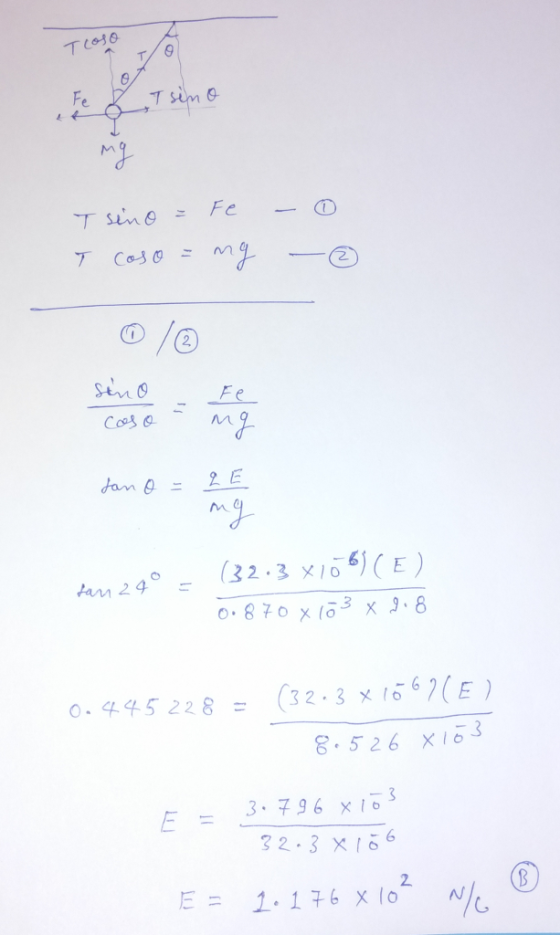

As shown in the figure, a ball with a mass of 0.870 g and
positive charge of q=32.3 μC is suspended on a string of negligible
mass in a uniform electric field.
We observe that the ball hangs at an angle of θ=24.0o
from the vertical. What is the magnitude of the electric
field?
(in N/C)
| A: 9.412×101 | B: 1.176×102 | C: 1.471×102 | D: 1.838×102 | E: 2.298×102 | F: 2.872×102 | G: 3.590×102 | H: 4.488×102 |
Homework Answers
Add Answer to:
As shown in the figure, a ball with a mass of 0.870 g and
positive charge...
As shown in the figure, a ball with a mass of 0.990 g and positive charge...
As shown in the figure, a ball with a mass of 0.990 g and
positive charge of q=40.8 μC is suspended on a string of negligible
mass in a uniform electric field.
We observe that the ball hangs at an angle of θ=23.0o
from the vertical. What is the magnitude of the electric
field?
(in N/C)
A: 5.712×101
B: 7.597×101
C: 1.010×102
D: 1.344×102
E: 1.787×102
F: 2.377×102
G: 3.162×102
H: 4.205×102
As shown in the figure, a ball with a mass of 0.450 g and positive charge...
As shown in the figure, a ball with a mass of 0.450 g and positive charge of q=33.0 uc is suspended on a string of negligible mass in a uniform electric field Tm Uniform E-field we observe that the ball hangs at an angle of θ= 20.0° from the vertical, what is the magnitude of the electric field? Submit Answer Tries 0/10
Find the magnitude of the electric field Uniform E-field As shown in the figure above, a...
Find the magnitude of the electric field
Uniform E-field As shown in the figure above, a ball of mass 0.900 g and positive charge q 39.0C is saspended on a string of negligible mass in a uniform electrie field. We observe that the ball hangs at an angle of the vertical. What is the magnitude of the electric fleld? 15.0 from Submt Al
In the figure below, a small charge with a mass of 2.00g and a charge of...
In the figure below, a small charge with a mass of 2.00g and a
charge of −0.820μC is attached to the end of a massless string. The
charge hangs at an angle of 30.0° when a uniform electric field, E,
is applied in the horizontal direction. Calculate the magnitude of the
electric field.
In the figure below, a small charge with a mass of 2.00 g and a charge of-0.820 μC is attached to the end of a massless string....
Chapter 158... Bonus Question : Force on a Point.. 65 A thle triomponent of ti0 dlect...
Chapter 158... Bonus Question : Force on a Point.. 65 A thle triomponent of ti0 dlect rt fest at the rigin loce fx10 N acts on the charge as shown in the figure. What is the x-component of the electric field at the origin? (Note: 1 V/m 1 N/C) (in V/m) [ A: 6.794, B: 7.678 c: 8.676/ D: 9.8031E : 1.108x10 F: 1.252x10 G: 1.415x10H: 1.598x101 Submit Answer Tries O/20 TimersEvaluate PrintInfo As shown in the fiqure, a ball...
A small 12.6 g plastic ball is tied to a very light 28.6 cm string that...
A small 12.6 g plastic ball is tied to a very light 28.6 cm string that is attached to vertical wall of room (see figure). A uniform horizontal electric field exists in this room. When the ball has been given an excess charge of - 1.33 μC, you observe that it remains suspended, with the string making an angle of 17.4° with the wall. Find the magnitude of the electric field in the room.
A small object of mass 3.74 g and charge −17.5 μC is suspended motionless above the...
A small object of mass 3.74 g and charge −17.5 μC is suspended motionless above the ground when immersed in a uniform electric field perpendicular to the ground. What are the magnitude and direction of the electric field? magnitude _____ N/C direction ________
A 6.70-g charged insulating ball hangs on a 26.0 cm long string in a uniform horizontal...
A 6.70-g charged insulating ball hangs on a 26.0 cm long string in a uniform horizontal electric field, as shown in the figure below. Given the charge on the ball is 8.20 μC find the strength of the neldN/C 8°
A small object of mass 3.72 g and charge −18.9 μC is suspended motionless above the...
A small object of mass 3.72 g and charge −18.9 μC is suspended motionless above the ground when immersed in a uniform electric field perpendicular to the ground. What are the magnitude and direction of the electric field? magnitude N/C direction ---Select--- East downward West upward
A small 1.45 g plastic ball that has a charge q of 1.75 C is suspended by a string that has a length L of 1.00 m in a uniform electric field
A small 1.45 g plastic ball that has a charge q of 1.75 C is suspended by a string that has a length L of 1.00 m in a uniform electric field, as shown in the figure. If the ball is in equilibrium when the string makes a 9.80 angle with the vertical as indicated by θ, what is the electric field strength E?
As shown in the figure, a ball with a mass of 0.450 g and positive charge of q=33.0 uc is suspended on a string of negligible mass in a uniform electric field Tm Uniform E-field we observe that the ball hangs at an angle of θ= 20.0° from the vertical, what is the magnitude of the electric field? Submit Answer Tries 0/10
Find the magnitude of the electric field
Uniform E-field As shown in the figure above, a ball of mass 0.900 g and positive charge q 39.0C is saspended on a string of negligible mass in a uniform electrie field. We observe that the ball hangs at an angle of the vertical. What is the magnitude of the electric fleld? 15.0 from Submt Al
In the figure below, a small charge with a mass of 2.00g and a
charge of −0.820μC is attached to the end of a massless string. The
charge hangs at an angle of 30.0° when a uniform electric field, E,
is applied in the horizontal direction. Calculate the magnitude of the
electric field.
In the figure below, a small charge with a mass of 2.00 g and a charge of-0.820 μC is attached to the end of a massless string....
Chapter 158... Bonus Question : Force on a Point.. 65 A thle triomponent of ti0 dlect rt fest at the rigin loce fx10 N acts on the charge as shown in the figure. What is the x-component of the electric field at the origin? (Note: 1 V/m 1 N/C) (in V/m) [ A: 6.794, B: 7.678 c: 8.676/ D: 9.8031E : 1.108x10 F: 1.252x10 G: 1.415x10H: 1.598x101 Submit Answer Tries O/20 TimersEvaluate PrintInfo As shown in the fiqure, a ball...
A 6.70-g charged insulating ball hangs on a 26.0 cm long string in a uniform horizontal electric field, as shown in the figure below. Given the charge on the ball is 8.20 μC find the strength of the neldN/C 8°
