A sinusoidal wave is travelling on a string under tension T = 8.0(N), having a mass...
A sinusoidal wave is travelling on a string under tension T = 8.0(N), having a mass per unit length of 1 = 0.0128(kg/m). It’s displacement function is D(x,t) = Acos(kx - t). It’samplitude is 0.001m and its wavelength is 0.8m. It reaches the end of this string, and continues on to a string with 2 = 0.0512(kg/m) and the same tension as the first string.

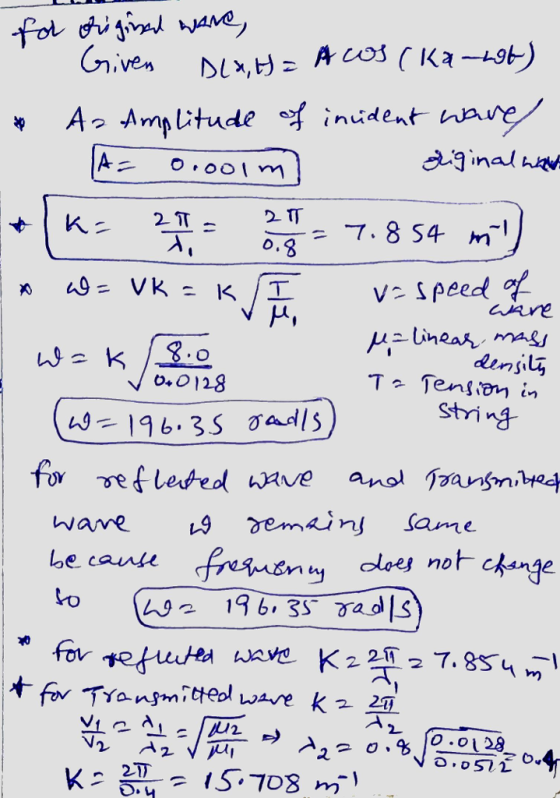

Give the values of A, k, and , for the original wave, as well as k and the reflected wave and the transmitted wave.
