A sinusoidal wave is traveling on a string with speed 34.5 cm/s. The displacement of the...

A sinusoidal wave is traveling on a string with speed 34.5 cm/s. The displacement of the particles of the string at x = 19 cm is found to vary with time according to the equation y = (8.9 cm) sin[2.2 - (4 s-1)t]. The linear density of the string is 3.8 g/cm. What are (a) the frequency and (b) the wavelength of the wave? If the wave equation is of the form y(x,t) = ym sin(kx - ωt), what are (c) ym, (d) k, and (e) ω, and (f) the correct choice of sign in front of ω? (g) What is the tension in the string?

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

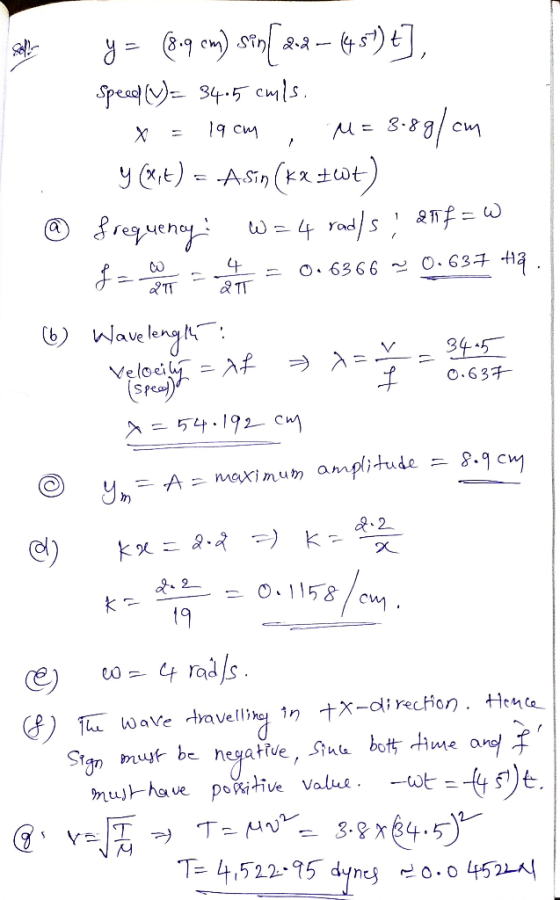

Answer #1

Please rate it dear, if you like this

0 0
Add a comment
