At time t = 0 and at position x = 0 m along a string, a traveling sinusoidal wave with an angular...
At time t = 0 and at position x = 0 m along a string, a traveling sinusoidal wave with an angular frequency of 450 rad/s has displacement y = +4.4 mm and transverse velocity u = -0.71m/s. If the wave has the general form y(x, t) = ym sin(kx - ωt + φ), what is phase constant φ?

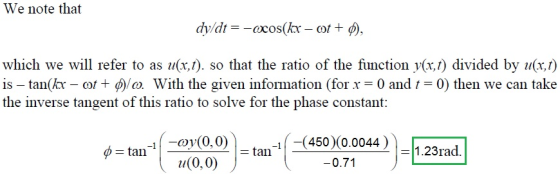

Homework Answers
I hope you understood the problem and got your answers, If yes rate me!! or else comment for a better solutions
