6. Use the vitual work method include both shear and bending deformamons to determine the verical...

Question

Question

engineering Civil-Engineering

Answer 1

Answer #1

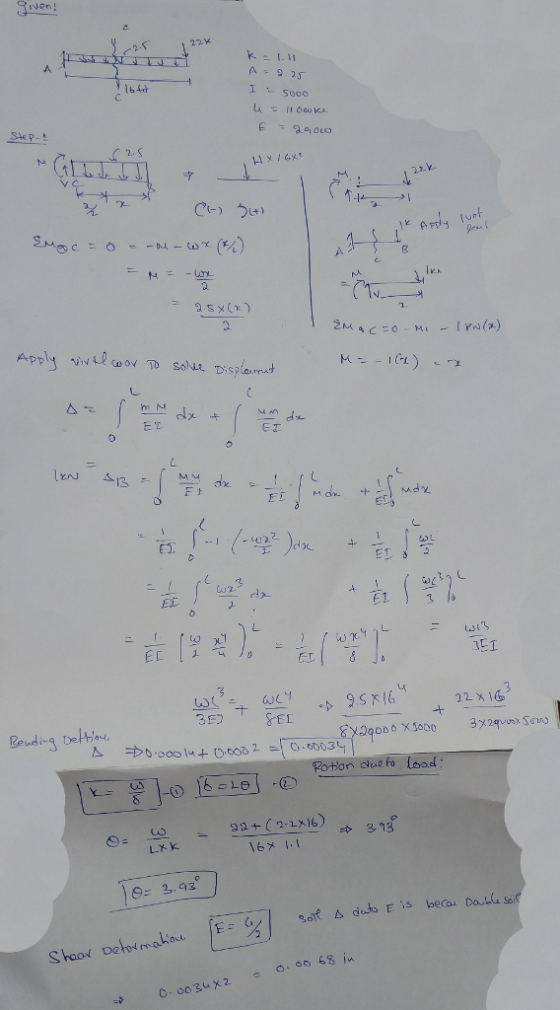

RINen! inry. 22Y 1 : 500。 Step- 21 (-) ぅ(+) Apunt doe 22 x16 ad LYk

Answer 2

Similar Homework Help Questions

6. Use the virtual work method include both shear and bending deformations to determine the vertical...

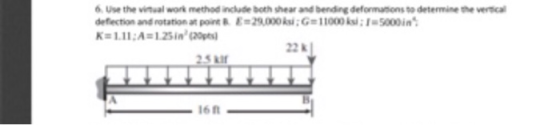

6. Use the virtual work method include both shear and bending deformations to determine the vertical deflection and rotation at point B. E-29,000 ksi; G= 11000 ksi; 1:5000 in"; K = 1.1 1 ; A = 1.25 in 2 (20pts) 22 k 2.5 klf 16 ft
5. Use the virtual work method using visual integration and only bending deformations to find the indicated deflec...

5. Use the virtual work method using visual integration and only bending deformations to find the indicated deflections/rotations in each structure. Calculate the deflection at point D and the rotation at point B.I-1.46-10'mm and E 200 GPa. (20pts) 80 KN Moment release 60 KN 5 m 5 m 5 m 5 m 6. Use the virtual work method include both shear and bending deformations to determine the vertical deflection and rotation at point B. E-29,000 ksi; G 11000 ksi 1...
2. Use the double integration method to solve for the requested quantities. (Use whatever coordinate system...

2. Use the double integration method to solve for the requested quantities. (Use whatever coordinate system you desire for the generation of the equations. You will then use your equations to solve for the quantities at the specific locations.) (20pts) Determine for 6, and where E-1.99-10° psi and 950 in' 1 klf EI 15 ft 5 ft 3. Use the virtual work method to determine the deflection of each of the joints indicated. E ksi. Find ΔΕΧ and Bar areas:...

7. Use the virtual work method, considering both bending and spring energy to find the vertical...

7. Use the virtual work method, considering both bending and spring energy to find the vertical deflection at points A and C. E-29000ksi, -500in ,k 300000(20pts) 1 klf 10k R
2. Use the double integration method to solve for the requested quantities. (Use whatever coordinate system...

2. Use the double integration method to solve for the requested quantities. (Use whatever coordinate system you desire for the generation of the equations. You will then use your equations to solve for the quantities at the specific locations.) (20pts) Determine for 6, and Ac where E 1.99. 106 psi and I-950 in' 1 klf El 15 ft 5 ft 3. Use the virtual work method to determine the deflection of each of the joints indicated. E 29,000 ksi. Find...
Problem 4. Determine the reactions and draw the shear and bending moment diagrams for the beams...

Problem 4. Determine the reactions and draw the shear and bending moment diagrams for the beams shown below using the slope-deflection method. 20 k 3 k/ft 1.5 k/ft E 29,000 ksi 1 1,650 in.4

Determine the reactions and draw the shear and bending moment diagrams for the beams shown in...

Determine the reactions and draw the shear and bending moment diagrams for the beams shown in Figs. P16.1-P16.5 by using the moment-distribution method. 2 k/ft 36 f24 ft El- constant E -29,000 ksi 1-1,530 in.4
Determine the reactions and draw the shear and bending momentdiagram. Use the method of consistent...

Determine the reactions and draw the shear and bending moment diagram. Use the method of consistent deformations and select the reaction at the roller support to be the redundant.
Use the virtual work method uning visual inbegration and only bending deformations to find the ndicated deflection...

Use the virtual work method uning visual inbegration and only bending deformations to find the ndicated deflection/rotations in each structure Calulane the defflection at point D and the rotation point B. 1.46 30mm and -200 GPa (20pts OKN Momet release 0LN

What is the horizontal displacement at C to the nearest 0.0001 in? Include bending, axial, and...

What is the horizontal displacement at C to the nearest 0.0001 in? Include bending, axial, and shear energy. The members are rectangle (A'=A). E = 29,000 ksi G = 11,000 ksi 1 - 428 in A-A-67 in? W=7k/ft -8 ft B tc w 10 ft 384 CHAPTER 9 DEFLECTIONS USING ENERGY METHODS EXAMPLE 9.12 Determine the horizontal displacement of point on the frame shown in Fig. 9-25a. Take E = 29(10%) ksi, G = 12(10) ksi, I = 600 in.....
