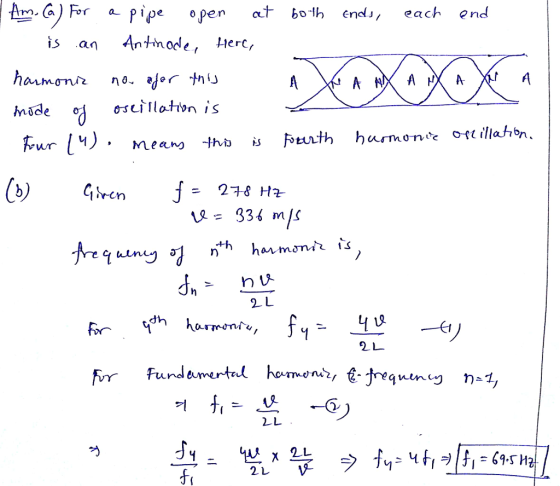

![2. [1pt] A standing sound wave in a hollow tube is shown below What is the harmonic number for this mode of oscillation? You only have 2 tries! Answer Incorrect, ONE try left!! Submit All Answers Last Answer: S 3. [lpt] If the frequency of this standing wave is 278 Hz, what is the fundamental frequency of the tube? Use 336 m/s for the phase speed of sound in air. Submit All Answers Answer](http://img.homeworklib.com/questions/b84eb380-6eee-11ea-9733-01f3e7a0e8bb.png?x-oss-process=image/resize,w_560)
Homework Answers
Add Answer to:
2. [1pt] A standing sound wave in a hollow tube is shown below What is the...
The amplitude of a standing sound wave in a long pipe closed at the left end...
The amplitude of a standing sound wave in a long pipe closed at the left end is sketched below. The vertical axis is the maximum displacement of the air, and the horizontal axis is along the length of the pipe. What is the harmonic number for the mode of oscillation illustrated? Submit Answer Tries 0/20 The length of the pipe is 0.380 m. What is the pitch (frequency) of the sound? Use 340 m/s for the speed of sound in...
1. [1pt] Consider standing sound waves in a tube. Answer true (T) or false (F) to...
1. [1pt] Consider standing sound waves in a tube. Answer true (T) or false (F) to the following statements; e.g., enter FFF. The highest pressure and lowest pressure in the standing wave both occur where the particle displacement is the smallest. The frequency of the standing wave increases as the harmonic mode increases. For a pipe closed at one end, the pressure varies more at the closed end than at the open end.
A tube, open at the left end and closed at the right, has standing-wave patterns at...
A tube, open at the left end and closed at the right, has standing-wave patterns at frequencies of 198 Hz and 330 Hz. The speed of sound in air is 343 m/s. The lowest two harmonics (normal modes) that these two standing waves could be are m = and The frequency of the fundamental (m = 1) is Hz. The wavelength of the fundamental mode is m. The tube is m long
In a Kundt's tube filled with a gas at atmospheric pressure, a standing sound wave with...
In a Kundt's tube filled with a gas at atmospheric pressure, a standing sound wave with a frequency of 1.40 kHz is generated. A maximum of the standing wave is measured at 56.2 cm and the next maximum is at 68.2 cm. What is the speed (in m/s) of sound wave in the tube? Lütfen birini seçin: O 344 O 712 O 178 O 336 O 172
Date WS4 Sound Standing Waves I. A tuning fork is set into vibeation above a vertical open tube i...
help
Date WS4 Sound Standing Waves I. A tuning fork is set into vibeation above a vertical open tube illed with water as shown. The wat level is allowed to drop slowly. As it does so, the air in the tube above the water level is heard to monate with the nning fork when thedstance tom the ope to he water level is at25m and again at 0.375 m. If the speed of sound in air is 343what is the...
The first harmonic of a series created by a standing air wave in a tube open...
The first harmonic of a series created by a standing air wave in a tube open at both ends is 250 Hz. If the length of the tube is 66.0 cm, calculate the speed of sound of the air. Give your answer in m/s to 3 sf.
6. The standing wave is formed in a tube of length L which is open at...
6. The standing wave is formed in a tube of length L which is open at both ends. The shape of this standing wave is shown in the picture, whereas the frequency of the 5th harmonic is 450 Hz. Speed of sound is 343 m/s. Find (a) length L of the tube, and (b) harmonic’s number n; (c) wavelength, and (d) frequency of the wave shown in the picture.
The animation below shows a representation of a particular longitudinal standing wave that is set up...
The animation below shows a representation of a particular
longitudinal standing wave that is set up in a pipe which is open
at both ends. A somewhat simpler transverse representation of the
standing wave is shown in red, above the pipe. The speed of sound
is 340 m/s, and the frequency of the standing wave is 720 Hz. The
animation shows the wave in slow motion.
the length of the pipe is .708 m
(b) What is the fundamental frequency...
The figure shows a standing sound wave in an 80-cm- long tube. The tube is filled...
The figure shows a standing sound wave in an 80-cm- long tube. The tube is filled with an unknown gas. Take f = 580 Hz (Figure 1) What is the speed of sound in this gas? Express your answer to two significant figures and include the appropriate units.
A 0.75m long instrument tube has two open sides as a standing sound wave moves through...
A 0.75m long instrument tube has two open sides as a standing sound wave moves through it (speed of sound is 343 m/s). You count 4 nodes in the tube. (a) Find the wavelength and frequency. (b) You suddenly close both ends of the tube. The number of nodes doesn't change, but their positions do What is different about the air pressure and displacement? How did the wavelength and frequency change?
The amplitude of a standing sound wave in a long pipe closed at the left end is sketched below. The vertical axis is the maximum displacement of the air, and the horizontal axis is along the length of the pipe. What is the harmonic number for the mode of oscillation illustrated? Submit Answer Tries 0/20 The length of the pipe is 0.380 m. What is the pitch (frequency) of the sound? Use 340 m/s for the speed of sound in...
A tube, open at the left end and closed at the right, has standing-wave patterns at frequencies of 198 Hz and 330 Hz. The speed of sound in air is 343 m/s. The lowest two harmonics (normal modes) that these two standing waves could be are m = and The frequency of the fundamental (m = 1) is Hz. The wavelength of the fundamental mode is m. The tube is m long
In a Kundt's tube filled with a gas at atmospheric pressure, a standing sound wave with a frequency of 1.40 kHz is generated. A maximum of the standing wave is measured at 56.2 cm and the next maximum is at 68.2 cm. What is the speed (in m/s) of sound wave in the tube? Lütfen birini seçin: O 344 O 712 O 178 O 336 O 172
help
Date WS4 Sound Standing Waves I. A tuning fork is set into vibeation above a vertical open tube illed with water as shown. The wat level is allowed to drop slowly. As it does so, the air in the tube above the water level is heard to monate with the nning fork when thedstance tom the ope to he water level is at25m and again at 0.375 m. If the speed of sound in air is 343what is the...
The animation below shows a representation of a particular
longitudinal standing wave that is set up in a pipe which is open
at both ends. A somewhat simpler transverse representation of the
standing wave is shown in red, above the pipe. The speed of sound
is 340 m/s, and the frequency of the standing wave is 720 Hz. The
animation shows the wave in slow motion.
the length of the pipe is .708 m
(b) What is the fundamental frequency...
The figure shows a standing sound wave in an 80-cm- long tube. The tube is filled with an unknown gas. Take f = 580 Hz (Figure 1) What is the speed of sound in this gas? Express your answer to two significant figures and include the appropriate units.
