Homework Answers
Add Answer to:

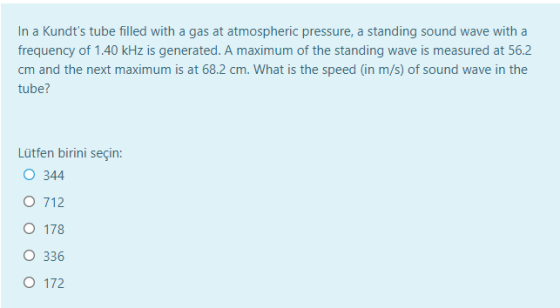

In a Kundt's tube filled with a gas at atmospheric pressure, a standing sound wave with...
The figure shows a standing sound wave in an 80-cm- long tube. The tube is filled...
The figure shows a standing sound wave in an 80-cm- long tube. The tube is filled with an unknown gas. Take f = 580 Hz (Figure 1) What is the speed of sound in this gas? Express your answer to two significant figures and include the appropriate units.
2. [1pt] A standing sound wave in a hollow tube is shown below What is the...
2. [1pt] A standing sound wave in a hollow tube is shown below What is the harmonic number for this mode of oscillation? You only have 2 tries! Answer Incorrect, ONE try left!! Submit All Answers Last Answer: S 3. [lpt] If the frequency of this standing wave is 278 Hz, what is the fundamental frequency of the tube? Use 336 m/s for the phase speed of sound in air. Submit All Answers Answer
A long cylindrical gas-tight tube, with a sound source at one end and sensor at the other
1. A long cylindrical gas-tight tube, with a sound source at one end and sensor at the other, was constructed to measure the speed by recording the time it take a sound wave to travel the length of the tube (see diagram). i. Initially, the tube was filled with air at atmospheric pressure (P=1.012x105Pa & T=295.2K). When a sound wave is produced by the source, the elapsed time for the wave to reach the sensor was 3.64x10-3s. Determine the length of...
A closed tube of length 0.60 m is used to create a standing sound wave. Assume...
A closed tube of length 0.60 m is used to create a standing sound wave. Assume that the standing wave created in the tube has the second longest wavelength possible (out of all possible standing waves that fit in the tube). If this tube is then placed on a truck that moves away (at a speed of 90.0 km/hr) from a stationary observer, what frequency does the observer hear?
A 0.75m long instrument tube has two open sides as a standing sound wave moves through...
A 0.75m long instrument tube has two open sides as a standing sound wave moves through it (speed of sound is 343 m/s). You count 4 nodes in the tube. (a) Find the wavelength and frequency. (b) You suddenly close both ends of the tube. The number of nodes doesn't change, but their positions do What is different about the air pressure and displacement? How did the wavelength and frequency change?
A sound wave in air has a pressure amplitude equal to 4.04 ✕ 10-3 Pa. Calculate...
A sound wave in air has a pressure amplitude equal to 4.04 ✕ 10-3 Pa. Calculate the displacement amplitude of the wave at a frequency of 9.4 kHz. (Note: Use the following values, as needed. The equilibrium density of air is ρ = 1.20 kg/m3; the speed of sound in air is v = 343 m/s. Pressure variations ΔP are measured relative to atmospheric pressure, 1.013 105 Pa.)
S.a) What is the wavelength of a sound wave general fundamental frequency is 128 Hz and...
S.a) What is the wavelength of a sound wave general fundamental frequency is 128 Hz and it travels with spo the tube? sound wave generated in a tube with two open ends whose d it travels with speed of sound v = 340 m/s? (b) What is the length of (a) = (b) L= = 340 m/s, 11 o. (a) What length should a tube closed at one end have on a day when the speed of sound its fundamental...
Help please with full explanation. For like and comment. 4. Consider a horizontal tube filled with...
Help please with full
explanation. For like and comment.
4. Consider a horizontal tube filled with air which is closed at one end. By blowing across the open end the fundamental standing wave of the air column inside the tube is produced. [You can assume the speed of sound in air is 344ms-1] (a) Sketch the tube, clearly labelling all of the pressure and displacement nodes (b) If the length of the air column in the tube is 32.0 cm,...
The amplitude of a standing sound wave in a long pipe closed at the left end...
The amplitude of a standing sound wave in a long pipe closed at the left end is sketched below. The vertical axis is the maximum displacement of the air, and the horizontal axis is along the length of the pipe. What is the harmonic number for the mode of oscillation illustrated? Submit Answer Tries 0/20 The length of the pipe is 0.380 m. What is the pitch (frequency) of the sound? Use 340 m/s for the speed of sound in...
A typical loud sound wave that has a frequency of 1.20 kHz has a pressure amplitude...
A typical loud sound wave that has a frequency of 1.20 kHz has a pressure amplitude of about 1.08 x10-4 atm (a) At t-0, the pressure is a maximum at some point x1. What is the displacement at that point att 07 Cm (b) Assuming the density of air is 1.29 kg/m3, what is the maximum value of the displacement at any time and place?
The figure shows a standing sound wave in an 80-cm- long tube. The tube is filled with an unknown gas. Take f = 580 Hz (Figure 1) What is the speed of sound in this gas? Express your answer to two significant figures and include the appropriate units.
2. [1pt] A standing sound wave in a hollow tube is shown below What is the harmonic number for this mode of oscillation? You only have 2 tries! Answer Incorrect, ONE try left!! Submit All Answers Last Answer: S 3. [lpt] If the frequency of this standing wave is 278 Hz, what is the fundamental frequency of the tube? Use 336 m/s for the phase speed of sound in air. Submit All Answers Answer
1. A long cylindrical gas-tight tube, with a sound source at one end and sensor at the other, was constructed to measure the speed by recording the time it take a sound wave to travel the length of the tube (see diagram). i. Initially, the tube was filled with air at atmospheric pressure (P=1.012x105Pa & T=295.2K). When a sound wave is produced by the source, the elapsed time for the wave to reach the sensor was 3.64x10-3s. Determine the length of...
S.a) What is the wavelength of a sound wave general fundamental frequency is 128 Hz and it travels with spo the tube? sound wave generated in a tube with two open ends whose d it travels with speed of sound v = 340 m/s? (b) What is the length of (a) = (b) L= = 340 m/s, 11 o. (a) What length should a tube closed at one end have on a day when the speed of sound its fundamental...
Help please with full
explanation. For like and comment.
4. Consider a horizontal tube filled with air which is closed at one end. By blowing across the open end the fundamental standing wave of the air column inside the tube is produced. [You can assume the speed of sound in air is 344ms-1] (a) Sketch the tube, clearly labelling all of the pressure and displacement nodes (b) If the length of the air column in the tube is 32.0 cm,...
The amplitude of a standing sound wave in a long pipe closed at the left end is sketched below. The vertical axis is the maximum displacement of the air, and the horizontal axis is along the length of the pipe. What is the harmonic number for the mode of oscillation illustrated? Submit Answer Tries 0/20 The length of the pipe is 0.380 m. What is the pitch (frequency) of the sound? Use 340 m/s for the speed of sound in...
A typical loud sound wave that has a frequency of 1.20 kHz has a pressure amplitude of about 1.08 x10-4 atm (a) At t-0, the pressure is a maximum at some point x1. What is the displacement at that point att 07 Cm (b) Assuming the density of air is 1.29 kg/m3, what is the maximum value of the displacement at any time and place?
