The battery provides V-52 volts. The capacitors are C1-5 pF, C2-5 pF, and C3-4 pF Calculate...

Question

Question

science physics

Answer 1

Answer #1

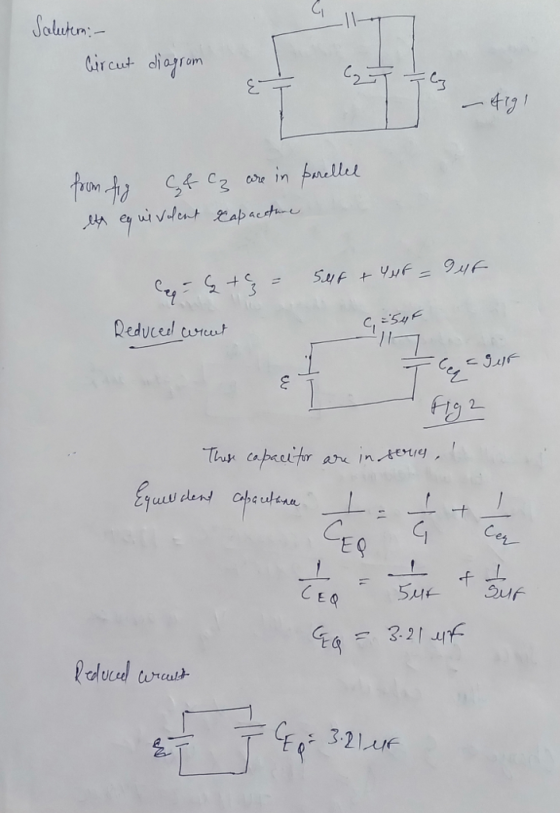

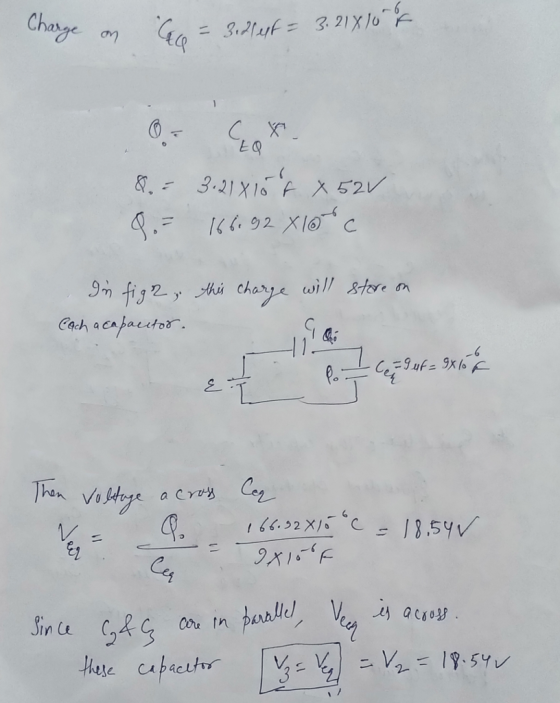

lircut diaom e dn G, Ce Ey hael.hr | V2-e | ニV.2-ー19. 5YV

Answer 2
