Part A Three capacitors, with capacitances C1 = 4.1 pF, C2 = 3.2 pF, and C3...

Question

Question

Part A Three capacitors, with capacitances C1 = 4.1 pF, C2 = 3.2 pF, and C3 = 2.4 PF, are connected to a 10-V voltage source,

science Advanced-Physics

Answer 1

Answer #1

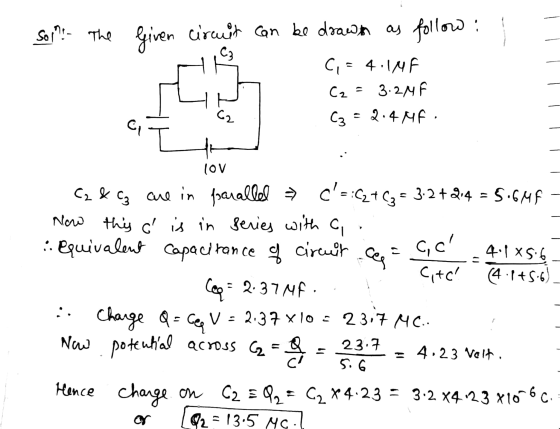

son! - The Given circuit can be draw in as follow : C3 C, = 4.11F C2 = 3.2M Cz = 2.4MF. C2 lov C2 & C3 are in parallel C=:<z

Answer 2

Similar Homework Help Questions

Part A Three capacitors, with capacitances C1 = 5.0 ?F, C2 = 2.4 ?F, and C3...

Part A Three capacitors, with capacitances C1 = 5.0 ?F, C2 = 2.4 ?F, and C3 = 6.0 ?F, are connected to a 19 -V voltage source, as shown in the figure. What is the charge on capacitor C2 ? Part AThree capacitors, with capacitances C1 = 5.0 ?F, C2 = 2.4 ?F, and C3 = 6.0 ?F, are connected to a 19 -V voltage source, as shown in the figure. What is the charge on capacitor C2 ?
Three capacitors, with capacitances C1 = 4.5 uF, C2 = 2.9 uF, and C3 = 2.1...

Three capacitors, with capacitances C1 = 4.5 uF, C2 = 2.9 uF, and C3 = 2.1 uF, are connected to a 20 -V voltage source, as shown in the figure. What is the charge on capacitor C2 ? C a. Ca C3 b. ΑΣΦ ? YC
Three capacitors with capacitances C1 = 6.3 ?F, C2 = 1.1 ?F, and C3 = 4.3...

Three capacitors with capacitances C1 = 6.3 ?F, C2 = 1.1 ?F, and C3 = 4.3 ?F are connected in a circuit as shown in the figure, with an applied potential of V. After the charges on the capacitors have reached their equilibrium values, the charge Q2 on the second capacitor is found to be 55. ?C. a) What is the charge, Q1, on capacitor C1? b) What is the charge, Q3, on capacitor C3? c) How much voltage, V,...

10) Three capacitors hree capacitors, with capacitances C, -4.0 uF, C2 - 3.0 pF, and C3...

10) Three capacitors hree capacitors, with capacitances C, -4.0 uF, C2 - 3.0 pF, and C3 - 2.0 pF, are nected to a 12.V voltage source, as shown in the figure. What is the charge on capacitor C2? be a. 16 uc b. 32 C c. 2.0 C d. 8,0 C e. 4.0 C
In Fig. below three capacitors with capacitances C1 4 μΕ C2-3LLE, and C3: 2 μΕ are...

In Fig. below three capacitors with capacitances C1 4 μΕ C2-3LLE, and C3: 2 μΕ are connected to a battery of voltage V 12 V. What is the charge on capacitor C2? C1
The battery provides V-52 volts. The capacitors are C1-5 pF, C2-5 pF, and C3-4 pF Calculate...

The battery provides V-52 volts. The capacitors are C1-5 pF, C2-5 pF, and C3-4 pF Calculate the voltage across capacitor C3 PAPER SOLUTION Solve the problem on paper first, including all four IDEA steps. You will become a better physicist that way! Have you finished your paper solution already? Oyes no INTERPRET Identify all of the true statements. A. The charge on C2 is equal to the charge on C3 because they are connected in parallel. C. The voltage across...

hree capacitors of capacitance C1-1.50 pF, C2-5.50 uF, and C3-11.0 uF are connected to a 36.0...

hree capacitors of capacitance C1-1.50 pF, C2-5.50 uF, and C3-11.0 uF are connected to a 36.0 V battery as shown in the figure C1 Дез C2 Calculate the charge on C3. Submit Answer Tries 0/20 Calculate the voltage across C1 Submit Answer Tries 0/20
JUST EXPRESSION FOR V3 The battery provides V-52 volts. The capacitors are C1-5 pF, C2-5 pF,...

JUST EXPRESSION FOR V3 The battery provides V-52 volts. The capacitors are C1-5 pF, C2-5 pF, and C3-4 pF Calculate the voltage across capacitor C3 PAPER SOLUTION Solve the problem on paper first, including all four IDEA steps. You will become a better physicist that way! Have you finished your paper solution already? Oyes no INTERPRET Identify all of the true statements. A. The charge on C2 is equal to the charge on C3 because they are connected in parallel....
Three capacitors with capacitances C1, C2, and C3 are connected in different ways. Which of the...

Three capacitors with capacitances C1, C2, and C3 are connected in different ways. Which of the following statements concerning the equivalent capacitance C is incorrect? Question 20 options: 1) C is the same no matter how C1, C2, and C3 are connected. 2) C is smallest if C1, C2, and C3 are connected in series. 3) C depends on how C1, C2, and C3 are connected. 4) C is greatest if C1, C2, and C3 are connected in parallel.

5. (5 points) Three capacitors with capacitances C1 = 3.50 nF, C2 = 2.30 nF, and...

5. (5 points) Three capacitors with capacitances C1 = 3.50 nF, C2 = 2.30 nF, and C3 = 4,80 nF are wired to a battery with V = 16.0 V, as shown in the figure. What is the potential drop across capacitor C2? 5. (5 points) Three capacitors with capacitances C1 = 3.50 nF, C2 = 2.30 nF, and C3 = 4.80 nF are wired to a battery with V-16.0 V, as shown in the figure. What is the potential...
