Homework Answers
(i) trA' = (12.41 - 1.13) min = 11.28 min
(ii) 11.28/12.41 = 0.9089, kA = (1- 0.9089)/0.9089 = 0.10018
(iii) trA' = (13.34 - 1.13) min = 12.21 min
(iv) 12.21/13.34 = 0.9153, kA = (1- 0.9153)/0.9153 = 0.09255
Add Answer to:

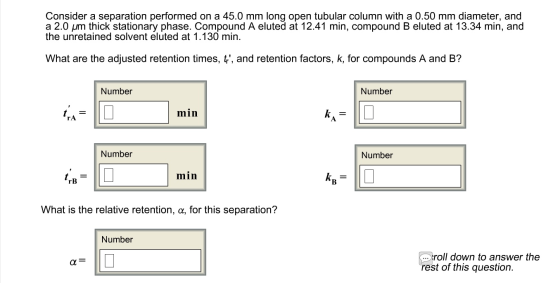

Consider a separation performed on a 45.0 mm long open tubular column with a 0.50 mm...
Two compounds C and D are separated on a column 34 cm long . Given the...
Two compounds C and D are separated on a column 34 cm long . Given the chromatographic data below calculate The column resolution? , the number of theoretical plates ?the height of theoretical plate and what length of column would be required to give a resolution of 1.5? Compound C retention time 18.3 width at base of peak(min) = 2.18 Compound D retention time 17.7, width at base 1.23
A student researcher performed a chromatographic separation of caffeine and aspartame. The retention time for caffeine,...
A student researcher performed a chromatographic separation of caffeine and aspartame. The retention time for caffeine, is, was found to be 218.0 s with a baseline peak width, wc, of 14.4 s. The retention time for aspartame, 1., was 250.5 s with a baseline peak width, w of 21.1 s. The retention time for the unretained solvent methanol was 40.4 s. Calculate the average plate height, H, in micrometers for this separation, given that it was performed on a 27.7...
A student researcher performed a chromatographic separation of caffeine and aspartame. The retention time for caffeine,...
A student researcher performed a chromatographic separation of caffeine and aspartame. The retention time for caffeine, tc,was found to be 207.6 s with a baseline peak width, wc, of 16.2 s. The retention time for aspartame, ta, was 253.7 s with a baseline peak width, wa, of 18.7 s. The retention time for the unretained solvent methanol was 40.7 s. Calculate the average plate height, H, in micrometers for this separation, given that it was performed on a 27.3 cmlong...
A student researcher performed a chromatographic separation of caffeine and aspartame. The retent...
A student researcher performed a chromatographic separation of caffeine and aspartame. The retention time for caffeine, lc, was found to be 203.8 s with a baseline peak width, wc, of 13.8 s. The retention time for aspartame, ta, was 272.4 s with a baseline peak width, wa, of 21.5 s. The retention time for the unretained solvent methanol was 43.7 s Calculate the average plate height, H, in micrometers for this separation, given that it was performed on a 22.7...
1. Listed below are retention times and peak widths for an HPLC chromatographic separation on a...
1. Listed below are retention times and peak widths for an HPLC chromatographic separation on a 10 cm C18 column a) Calculate the resolution between benzene and benzo[e]pyrene. Compound Unretained Benzene Benzo[e]pyrene Pyrene Coronene Time (min) Baseline Width (min) 0.9 10.9 13.3 16.7 26.1 0.40 0.40 0.45 0.50 b) Is this a good resolution, yes, no, why? c) Calculate the theoretical number of plates for benzo[elpyrene.
Consider the data below for a liquid chromatography separation of four compounds, A, B, C, and...
Consider the data below for a liquid chromatography separation of four compounds, A, B, C, and D on a 45.0 cm column. Calculate the number of theoretical plates, N, for each peak. Retention Width at the Time (min) Base (min) 5.24 0.424 Number Number 12.8 1.08 NA = II 14.2 1.12 D 24.1 1.85 Number Number NB = 10 N= What is the average number of theoretical plates, Navg, for the column? Number Navy = avg What is the plate...
Q. A) An open tubular column is 30 m long and has an inner diameter of...
Q. A) An open tubular column is 30 m long and has an inner diameter of 0.500 mm. It is coated on the inside wall with a layer of stationary phase which is 30 um thick. Unretained solute passed through in 2.00 min whereas a particular solute has a retention time of 15.20 min. What is the volume flow rate in mL/min. B) Calculate the capacity factor for the solute. C) What was the fraction of time spent in the...
The table contains data for a liquid chromatography separation of four compounds, A, B, C, and...
The table contains data for a liquid chromatography separation of four compounds, A, B, C, and D, on a 40.0 cm column Retention Compound time (min) Width at the base (min) A 5.17 0.436 B 1.02 13.0 15.0 C 1.10 23.4 1.91 Calculate the number of theoretical plates, N, for each peak. NA NB Nc ND = What is the average number of theoretical plates, Navg, for Navg the column? What is the plate height, H, for the column? Н-...
2.0 EXAMPLEI : The following data were obtained for a separation using a 0.5 mm id,...
2.0 EXAMPLEI : The following data were obtained for a separation using a 0.5 mm id, 10 meter open tubular column: Retention time (min) Peak base width (min) Methane Cyclohexane 8.0 0.65 Methylcyclohexane 8.17 0.72 Toluene 10.2 0.95 a)Draw the chromatogram and label the peaks b) Calculate the number of theoriticla plate for each compound (N) and palte height (H) c) Calculate the capacity factor for each compound d) the resolution between tow consequent peak R, e) Calculate the length...
consider the peaks for trans-chlordane and for cis-chlordane where its retention time is 458.5 seconds and...
consider the peaks for trans-chlordane and for cis-chlordane where its retention time is 458.5 seconds and 475.0 seconds respectively. The elution time for unretained solute is 25 seconds. The width base for t-chlordane is 4 seconds and c-chlordane is 4.5 seconds. The open tubular column is 12.5m in length and 0.32 in diameter. Find the adjusted retention time, retention factor, number of theoretical plates and plate height for t-chlordane and c-chlordane peaks. in addition calculate the selectivity factor and resolution...
A student researcher performed a chromatographic separation of caffeine and aspartame. The retention time for caffeine, is, was found to be 218.0 s with a baseline peak width, wc, of 14.4 s. The retention time for aspartame, 1., was 250.5 s with a baseline peak width, w of 21.1 s. The retention time for the unretained solvent methanol was 40.4 s. Calculate the average plate height, H, in micrometers for this separation, given that it was performed on a 27.7...
A student researcher performed a chromatographic separation of caffeine and aspartame. The retention time for caffeine, lc, was found to be 203.8 s with a baseline peak width, wc, of 13.8 s. The retention time for aspartame, ta, was 272.4 s with a baseline peak width, wa, of 21.5 s. The retention time for the unretained solvent methanol was 43.7 s Calculate the average plate height, H, in micrometers for this separation, given that it was performed on a 22.7...
1. Listed below are retention times and peak widths for an HPLC chromatographic separation on a 10 cm C18 column a) Calculate the resolution between benzene and benzo[e]pyrene. Compound Unretained Benzene Benzo[e]pyrene Pyrene Coronene Time (min) Baseline Width (min) 0.9 10.9 13.3 16.7 26.1 0.40 0.40 0.45 0.50 b) Is this a good resolution, yes, no, why? c) Calculate the theoretical number of plates for benzo[elpyrene.
Consider the data below for a liquid chromatography separation of four compounds, A, B, C, and D on a 45.0 cm column. Calculate the number of theoretical plates, N, for each peak. Retention Width at the Time (min) Base (min) 5.24 0.424 Number Number 12.8 1.08 NA = II 14.2 1.12 D 24.1 1.85 Number Number NB = 10 N= What is the average number of theoretical plates, Navg, for the column? Number Navy = avg What is the plate...
The table contains data for a liquid chromatography separation of four compounds, A, B, C, and D, on a 40.0 cm column Retention Compound time (min) Width at the base (min) A 5.17 0.436 B 1.02 13.0 15.0 C 1.10 23.4 1.91 Calculate the number of theoretical plates, N, for each peak. NA NB Nc ND = What is the average number of theoretical plates, Navg, for Navg the column? What is the plate height, H, for the column? Н-...
2.0 EXAMPLEI : The following data were obtained for a separation using a 0.5 mm id, 10 meter open tubular column: Retention time (min) Peak base width (min) Methane Cyclohexane 8.0 0.65 Methylcyclohexane 8.17 0.72 Toluene 10.2 0.95 a)Draw the chromatogram and label the peaks b) Calculate the number of theoriticla plate for each compound (N) and palte height (H) c) Calculate the capacity factor for each compound d) the resolution between tow consequent peak R, e) Calculate the length...
