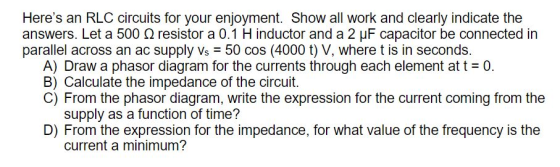

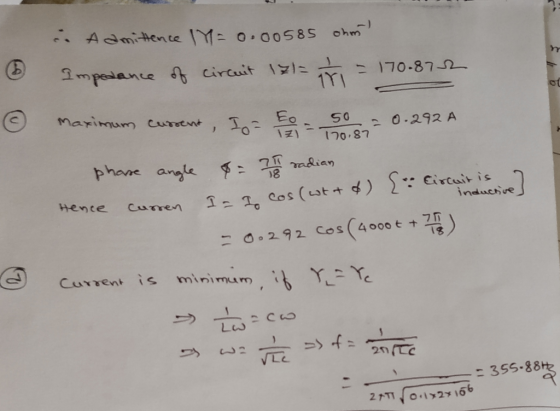

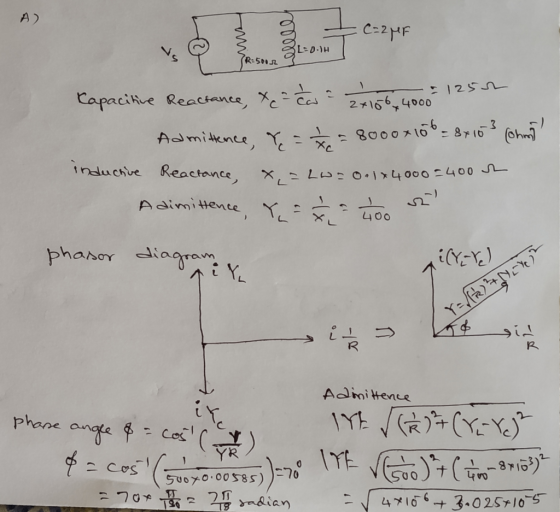

Here's an RLC circuits for your enjoyment. Show all work and clearly indicate the answers. Let...
Please help with question 28, 29, 30, show all
your work and formulas
series ACRI resistor voltage is AC RLC circuit is set up with a 45 mH inductor, a 2.5 uF capacitor, a 60 92 resistor, and a signal genera voltage is measured with an oscilloscope to be AVR = 30 sin(4000 t). AVR-7AV: AVC 000 L Esupply 28. What is the RMS voltage across the resistor? a. 15 V b. 21 V c. 30 V d. 42 V...
PLEASE ANSWER VERY QUICKLY!! I RATE HIGH!!
The experiment is on RC circuits and the aim is to determine the time constant. Your group sets up the circuit with a resistor R and a capacitor C connected to a switch and an ideal battery (E). The circuit diagram is shown in the figure. You close the switch at time Os and the voltage across the capacitor Ve and current I in the ammeter are recorded in a spreadsheet using a...
please help, if you're able to explain a-f that would be great, but
i mainly need help with G
<Ch31. AC Circuits Part Part A Exercise 31.12 - Enhanced - with Feedback What is the impedance of the circuit? Express your answer with the appropriate units. What is the voltage amplitude across the resistor? Express your answer with the appropriate units. 2 = 251 VR = 19.7V Previous Answers Sube Previous Answers You have a 170 resistor, a 0.800 H...
Review Part A. Find the relationship between the phasor voltage and phasor current for a resistance The resistor shown here has been transformed into the phasor domain: Ik 4k Suppose that the phasor current is given by IR = 752120 mA. Find the phasor voltage VR. Enter a complex number in polar form, with phase angle in degrees. View Available Hint(s) 3002120 V Submit Previous Answers Correct Part B - Draw the phasor diagram of the resistance from Part A...
solve all parts.
Problem 4. On the circuit shown below, Vst) = 100 sin (300x3/4) volts a. Convert this problem to a phasor problem. Label all the variables and specify the reference directions for the voltages and currents. Write down a set of linearly independent algebraic equations necessary to calculate the circuit variables. b. Solve the equations to find the phasor corresponding to the voltage across the 10 resistor Ans. Val"R=40.6 c. From the phasor answer in part bwrite down...
Please show detailed step by step with explanation
(20%) Problem 5: An RLC series circuit has a 2.6 22 resistor, a 85 uH inductor, and a 87.5 uF capacitor. 17% Part (a) Find the circuit's impedance, in ohms, at 110 Hz. Z = 16.74 Correct! > A 17% Part (b) Find the circuit's impedance, in ohms, at 4.5 kHz. 22= Grade Summary Deductions 0% Potential 100% E sin cos t an() cotano asin() acoso atan acotan sinh( cosh) tanh() cotanh0...
just do question 26 and 30 and show all your work
(a) Select R so that 26. For the cincuit of Fig. 943,.40 30u-) m v(0+) 6 V. (b) Compute (2 ms). (c) Determine the settling time of the capacitor voltage. (d) Is the inductor current settling time the same as your answer to part (c)? 27. The current source in Fig. 9.43 is id) = 101(1-1) μ A. (a) Select Ri such that iLO")-2 μΑ. Compute L at t-500...
1. Why can the DSO only measure node voltages when the Function Generator is the power supply in a circuit (unless it is using a current probe)? 2. Consider Figure 1. According to the calculations in the lab handout, if Z-1kΩ +/6914, then the phase difference (фи-фі) between u(t) and i (t) is 34.6". a. If this v(t) and i(t) were displayed on a DSO (v(t) being a node voltage and using a current probe for i(t) as shown in...
B oth 100 Day PH262 Page 1 of 5 Lab #13 AC Circuits, Part 1 RC & RL, Phase Measurements THEORY The rotating phase representation for series AC circuits should be familiar from textbook and lecture notes A brief outline of the essential points is provided here. If a series RLC circuit is connected across a source of om which is a sinusoidal function of time, then und all its derivatives will also be inside. Sonce all demits in a...
Course and Section cto EXPERIMENT ac series-Parallel Sinusoidal Circuits OBJECTIVES 1. Measure the currents of series-parallel R-L and R-C networks using sensing resistors 2. Demonstrate the Pythagorean relationship between the currents of the networks. 3. Measure the phase angles associated with the currents of the networks. 4. Calculate the input impedance of a parallel network using measured values EQUIPMENT REQUIRED Instruments Resistors 1-10-Q, 470-Ω, l-kM (14.W) Inductors 1-10-mH Capacitors 1-0.02-pF I-DMM 1--Oscilloscope 1-Audio oscillator or function generator 1--Frequency counter (if...
