Homework Answers
Add Answer to:

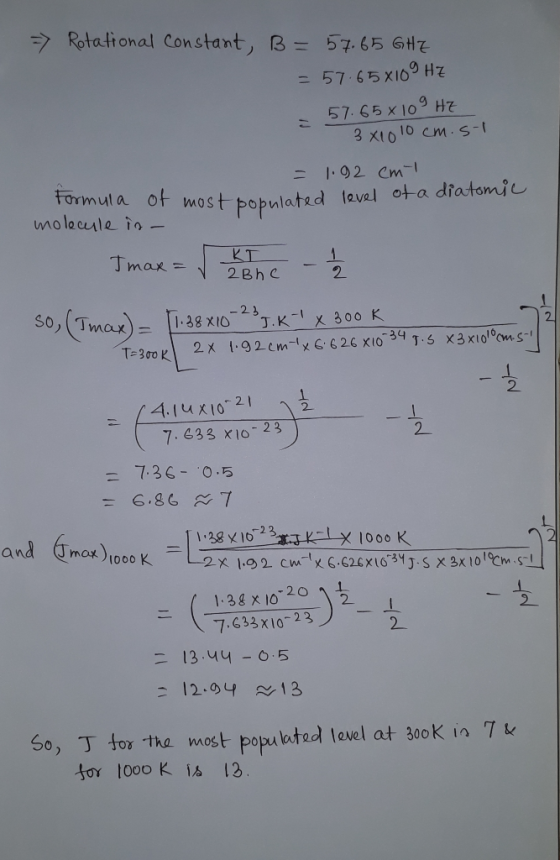

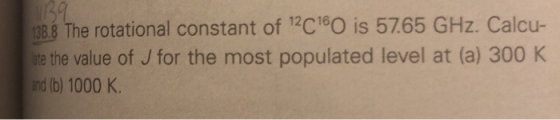

133.8 The rotational constant of 12C160 is 57.65 GHz. Calcu- late the value of J for...
Question 5 The rotational energy levels of a diatomic molecule are given by E,= BJ(J+1) with...
Question 5 The rotational energy levels of a diatomic molecule are given by E,= BJ(J+1) with B the rotational constant equal to 8.02 cm Each level is (2) +1)-times degenerate. (wavenumber units) in the present case (a) Calculate the energy (in wavenumber units) and the statistical weight (degeneracy) of the levels with J =0,1,2. Sketch your results on an energy level diagram. (4 marks) (b) The characteristic rotational temperature is defined as where k, is the Boltzmann constant. Calculate the...
Please leave a step by step guide on how to do this please? Thank you so much a) Derive an expression for the value ofl corresponding to the most highly populated rotational energy level of a spherica...
Please leave a step by step guide on how to do this please?
Thank you so much
a) Derive an expression for the value ofl corresponding to the most highly populated rotational energy level of a spherical rotator(Umax). For spherical rotator each energy level is (2) +1)2 - fold degenerate and energy is given by E-hcBJ1). The population N, of molecules in energy level J is given by the Boltzmann expression gje where N is the total number of molecules...
Consider rotational motion of heteronuclear diatomic molecules at a temperature T using the rigid-rotator approximation. (a)...
Consider rotational motion of heteronuclear diatomic molecules at a temperature T using the rigid-rotator approximation. (a) Write expression for the probability to find a diatomic molecule in a particular rotational level using the Boltzmann distribution. (b) Find the most populated rotational level for ^127 I ^35 Cl at 300 K.
Q 3(a) [5.33 Marks] Indicate which of the following molecules you expect will show microwave (rotational)...
Q 3(a) [5.33 Marks] Indicate which of the following molecules you expect will show microwave (rotational) spectra; O2, CH4, O3, N2, CHCl3 and CS2. In each case, briefly explain your answers. Q 3(b) [18 Marks] The microwave spectrum of 12C16O shows a series of lines spaced 3.824 cm-1 apart. Assuming a rigid rotor: (i) Calculate the moment of inertia for this molecule. (ii) Estimate the C-O bond length. (iii) Determine which rotational level (J) is most populated at 300 K....
(a) Find an expression for the value J which corresponds to the most populated energy level...
(a) Find an expression for the value J which corresponds to the most populated energy level of a rigid rotor at temperature T. (b) You are given for HCl that B = 10.59 cm-1. Calculate J for the maximum population of 298 K using the expression you found in (a) (J must be a whole number) (c) For HCl, calculate and sketch the ratio of the electron grouping between level J to the ground state as a function of J...
Assuming that the characteristic vibrational wave number is 1000 cm-1, and the characteristio rotational constant is...
Assuming that the characteristic vibrational wave number is 1000 cm-1, and the characteristio rotational constant is B 1 cm i Which rotational level of the ground vibrational state would reach the energy of the first excited vibrational state?
OB-5 cm OB-10 cm RT) + expi-B 2 3 266 / 50 Rotational quantum number J...
OB-5 cm OB-10 cm RT) + expi-B 2 3 266 / 50 Rotational quantum number J Figure 2.4 The Boltzmann populations of the rotational energy levels of Fig. 2.2. The diagram has been drawn taking values of B-5 and 10 cm and T - 300 K in Eq. (2.18). Rotational quantum number. J Figure 2.7 The total relative populations, including degeneracy, of the rotational energy levels of a diatomic molecule. The diagram has been drawn for the same conditions as...
2. The P-branch of the 2n- 22t transition of CdH shows a band head at J-25. The rotational constant of the ground the b...
2. The P-branch of the 2n- 22t transition of CdH shows a band head at J-25. The rotational constant of the ground the bond length increased or decreased in the transition? state is 5.437 cm1. What is the rotational constant of the upper state? Has
2. The P-branch of the 2n- 22t transition of CdH shows a band head at J-25. The rotational constant of the ground the bond length increased or decreased in the transition? state is 5.437 cm1....
Relative to other lines in a rotational absorption spectrum, the intensity of any given line depends...
Relative to other lines in a rotational absorption spectrum, the intensity of any given line depends primarily rotational level from which the transition originates. on the size of the population in the In a rotational spectrum of gaseous HCl the most intense absorption line originates in the level for which rotational quantum number J = 3. At what temperature was the spectrum measured ? [Given: Ztran V(2xmKT)3/2/h3; Zrot = 8n2IKT/h2; Zvib-exp(-hv/2KT)/[ 1 -exp(-hv/KT)] ; Erot=j (j + 1 ) h2/8721;...
3. a) For the molecule 16O18O, write an equation for the probability that the rotational quantum...
3. a) For the molecule 16O18O, write an equation for the probability that the rotational quantum number J is greater than 25. b) The rotational constant B for 16O18O is 2.69686 × 10-23 J. Calculate the probability that the rotational quantum number J for 16O18O is greater than or equal to 25 at T = 1500 K.
Question 5 The rotational energy levels of a diatomic molecule are given by E,= BJ(J+1) with B the rotational constant equal to 8.02 cm Each level is (2) +1)-times degenerate. (wavenumber units) in the present case (a) Calculate the energy (in wavenumber units) and the statistical weight (degeneracy) of the levels with J =0,1,2. Sketch your results on an energy level diagram. (4 marks) (b) The characteristic rotational temperature is defined as where k, is the Boltzmann constant. Calculate the...
Please leave a step by step guide on how to do this please?
Thank you so much
a) Derive an expression for the value ofl corresponding to the most highly populated rotational energy level of a spherical rotator(Umax). For spherical rotator each energy level is (2) +1)2 - fold degenerate and energy is given by E-hcBJ1). The population N, of molecules in energy level J is given by the Boltzmann expression gje where N is the total number of molecules...
Consider rotational motion of heteronuclear diatomic molecules at a temperature T using the rigid-rotator approximation. (a) Write expression for the probability to find a diatomic molecule in a particular rotational level using the Boltzmann distribution. (b) Find the most populated rotational level for ^127 I ^35 Cl at 300 K.
Assuming that the characteristic vibrational wave number is 1000 cm-1, and the characteristio rotational constant is B 1 cm i Which rotational level of the ground vibrational state would reach the energy of the first excited vibrational state?
OB-5 cm OB-10 cm RT) + expi-B 2 3 266 / 50 Rotational quantum number J Figure 2.4 The Boltzmann populations of the rotational energy levels of Fig. 2.2. The diagram has been drawn taking values of B-5 and 10 cm and T - 300 K in Eq. (2.18). Rotational quantum number. J Figure 2.7 The total relative populations, including degeneracy, of the rotational energy levels of a diatomic molecule. The diagram has been drawn for the same conditions as...
2. The P-branch of the 2n- 22t transition of CdH shows a band head at J-25. The rotational constant of the ground the bond length increased or decreased in the transition? state is 5.437 cm1. What is the rotational constant of the upper state? Has
2. The P-branch of the 2n- 22t transition of CdH shows a band head at J-25. The rotational constant of the ground the bond length increased or decreased in the transition? state is 5.437 cm1....
Relative to other lines in a rotational absorption spectrum, the intensity of any given line depends primarily rotational level from which the transition originates. on the size of the population in the In a rotational spectrum of gaseous HCl the most intense absorption line originates in the level for which rotational quantum number J = 3. At what temperature was the spectrum measured ? [Given: Ztran V(2xmKT)3/2/h3; Zrot = 8n2IKT/h2; Zvib-exp(-hv/2KT)/[ 1 -exp(-hv/KT)] ; Erot=j (j + 1 ) h2/8721;...
