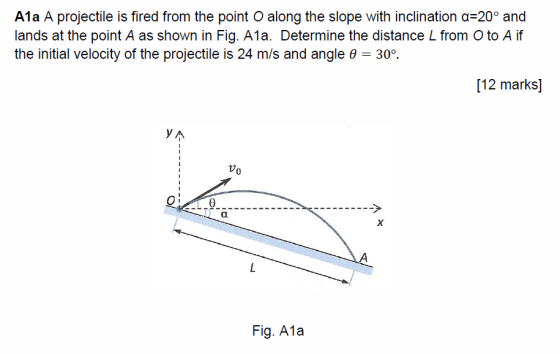

![Ala A projectile is fired from the point O along the slope with inclination α-200 and lands at the point A as shown in Fig. A1a. Determine the distance L from O to A if the initial velocity of the projectile is 24 m/s and angle -30°. [12 marks] Vo Fig. A1a](http://img.homeworklib.com/questions/6d89a500-6f6f-11ea-86f6-d9521859ca57.png?x-oss-process=image/resize,w_560)
Homework Answers
Add Answer to:
Ala A projectile is fired from the point O along the slope with inclination α-200 and...
A1 (a) A projectile is fired at an angle of 40% from a point A along...
A1 (a) A projectile is fired at an angle of 40% from a point A along a slope of 20% as shown in Fig. A1a. Determine the distance OB if the initial velocity of the projectile V% is 200 m/s. [16 marks] Vo 400 2 m 20° Fig. A1a
A1 (a) A projectile is fired at an angle of 40% from a point A along...
A1 (a) A projectile is fired at an angle of 40% from a point A along a slope of 20% as shown in Fig. A1a. Determine the distance OB if the initial velocity of the projectile V% is 200 m/s. [16 marks] Vo 400 2 m 20° Fig. A1a
A1 (a) A projectile is fired at an angle of 40% from a point A along...
A1 (a) A projectile is fired at an angle of 40% from a point A along a slope of 20% as shown in Fig. A1a. Determine the distance OB if the initial velocity of the projectile V% is 200 m/s. [16 marks] Vo 400 2 m 20° Fig. A1a
A projectile is fired from point O at the edge of a cliff with an initial...
A projectile is fired from point O at the edge of a cliff with an initial speed v0 = 187 m/s. The initial horizontal velocity component is v0x = 175 m/s. The projectile rises and then falls into the sea at point P at distance D = 2660 m from the bottom of the cliff. Ignore air resistance. 1a. What is the projectile’s speed 6.73 s after the launch? b. What is the height of the cliff? c. What is...
Ala A ball is launched from point A at angle 30° as shown in Fig. Ala....
Ala A ball is launched from point A at angle 30° as shown in Fig. Ala. Determine the maximum and minimum speed vA it can have so that it lands in the container [10 marks] 30° 1 m 0.25 n 2.5 m 4 m
A cannonball is fired from a gun and lands 520 meters away at a time 20...
A cannonball is fired from a gun and lands 520 meters away at a time 20 seconds. What is the y-component of the initial velocity? What is the maximum height of the cannonball? What is the x-component of the initial velocity? What is the muzzle velocity of this projectile? What is the angle of inclination of this projectile?
P. The horizontal distance of a projectile (in feet) is given by x (vo cos e)t,...
P. The horizontal distance of a projectile (in feet) is given by x (vo cos e)t, and the height of the projectile is given by y = -16t2 + (vo sin 0)t + yo where vo is the initial velocity, e is the angle of inclination, and yo is the initial height. Suppose an object is propelled upward from the ground at an angle e to the horizontal with an initial velocity of vo ft/sec. a. Find a formula for...
A projectile is fired from the ground, reaches a maximum height of 50.8 m and lands...
A projectile is fired from the ground, reaches a maximum height of 50.8 m and lands a distance of 39.1 m away from the launch point. What was the projectile s launch velocity? You launch a projectile toward a tall building, from a position on the ground 39.3 m away from the base of the building. The projectile s initial velocity is 45.9 m/s at an angle of 58.7 degrees above the horizontal. At what height above the ground does...
A projectile fired from a gun has initial horizontal and vertical components of velocity equal to...
A projectile fired from a gun has initial horizontal and vertical components of velocity equal to 30 m/s and 40 m/s, respectively. a. determine the initial speed of the projectile b. at what angle is the projectile fired (measured with respect to the horizontal)? c. approximately how long does it take the projectile to reach the highest point in its trajectory?
A1 (a) A projectile is fired at an angle of 40% from a point A along a slope of 20% as shown in Fig. A1a. Determine the distance OB if the initial velocity of the projectile V% is 200 m/s. [16 marks] Vo 400 2 m 20° Fig. A1a
A1 (a) A projectile is fired at an angle of 40% from a point A along a slope of 20% as shown in Fig. A1a. Determine the distance OB if the initial velocity of the projectile V% is 200 m/s. [16 marks] Vo 400 2 m 20° Fig. A1a
A1 (a) A projectile is fired at an angle of 40% from a point A along a slope of 20% as shown in Fig. A1a. Determine the distance OB if the initial velocity of the projectile V% is 200 m/s. [16 marks] Vo 400 2 m 20° Fig. A1a
Ala A ball is launched from point A at angle 30° as shown in Fig. Ala. Determine the maximum and minimum speed vA it can have so that it lands in the container [10 marks] 30° 1 m 0.25 n 2.5 m 4 m
P. The horizontal distance of a projectile (in feet) is given by x (vo cos e)t, and the height of the projectile is given by y = -16t2 + (vo sin 0)t + yo where vo is the initial velocity, e is the angle of inclination, and yo is the initial height. Suppose an object is propelled upward from the ground at an angle e to the horizontal with an initial velocity of vo ft/sec. a. Find a formula for...
