8. [1] An object is undergoing simple harmonic motion. The graph shows the position of the...

Question

Question

science physics

Answer 1

Answer #1

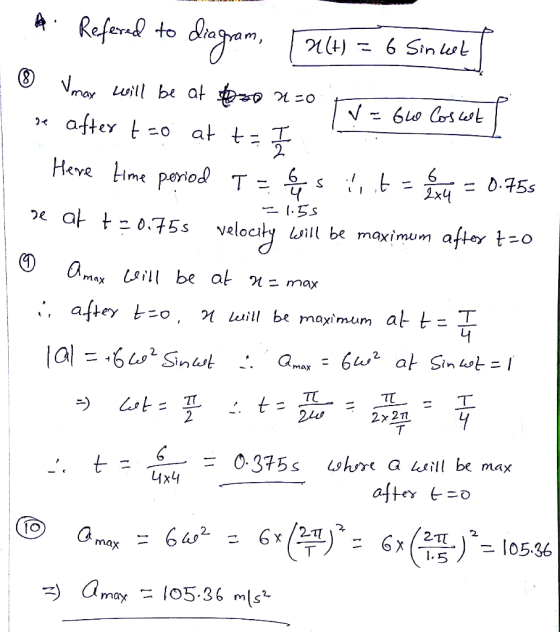

- 1.55 A Refered to diagram, 2(+) = 6 Sincest 8 Vmax will be at o n =0 to T=60 Coscut se after tao at t= I Here time period T

Answer 2

Similar Homework Help Questions

8. [1pt] An object is undergoing simple harmonic motion. The graph shows the position of the...

8. [1pt] An object is undergoing simple harmonic motion. The graph shows the position of the object as a function of time. What is the first time after t = 0 s when the speed reaches a maximum? Answer: 9. [1pt] What is the first time after t = 0 s, when the magnitude of the acceleration is a maximum? Answer: 10. [1pt] What is the maximum acceleration that the object experiences? Answer: 6 דיוי די, ידידידידידין 5 4 t...
An object is undergoing simple harmonic motion. The graph shows the position of the object as...

An object is undergoing simple harmonic motion. The graph shows the position of the object as a function of time. What is the first time after t = 0 s when the speed reaches a maximum? x (cm) á ábOENWA 0 1 2 4 5 6 3 t (s)
An object is undergoing simple harmonic motion in the -direction such that is equilibrium position is...

An object is undergoing simple harmonic motion in the -direction such that is equilibrium position is at z 0. At time t 0 the objects position, velocity, and acceleration are z = 0.448 m, u = 0.207 m/s, and a =-0.359 rn/82. respectively. For radians, enter 'rad" as the unit. For a full list of accepted units, use the "Units Help" link below. (a) What is the angular frequency of the object's motion? Number Units (b) What is the amplitude...

Question 7 1 pts A block attached to a spring is undergoing simple harmonic motion. At...

Question 7 1 pts A block attached to a spring is undergoing simple harmonic motion. At one point in its motion, its kinetic energy is 5 J and its potential energy is 3 J. When the block reaches the point of maximum displacement from equilibrium, the kinetic and potential energies are: K-0 and U--8 Previous Submit Quiz No new data to save. Last checked at 10:39am
5. [1pt] Consider a perfectly elastic collision between two objects of equal mass. Object 1 is...

5. [1pt] Consider a perfectly elastic collision between two objects of equal mass. Object 1 is initially moving with a velocity v = 3.07 m/s while object 2 is at rest. What are the final velocities after the collision? Enter the final velocity of object 1 first. Correct, computer gets: 0.002+00 m/s, 3.07e+00 m/s 6. [1pt] If the objects have masses m = 2.37 kg and m2 = 4.94 kg, what are the final velocities of the objects after the...
The position function of a particle undergoing Simple Harmonic Motion is given below: D. 2 =...

The position function of a particle undergoing Simple Harmonic Motion is given below: D. 2 = 5 sin (36), where x is in m, and t is in s. Round your answers to the nearest tenth. Do not include units in your answers. (1) What is the particle's period of motion, in s, ? (2) Where will the particle be at t=3s, in m, ? (3) How fast will the particle move at t=1 s, in m/s, ? (4) What...

An object undergoing simple harmonic motion in the x-direction has a period of 2.0 seconds, an...

An object undergoing simple harmonic motion in the x-direction has a period of 2.0 seconds, an amplitude of 5 cm and begins its oscillation at t = 0 at its maximum value of x. What equation could describe its motion?
13) An object undergoing simple harmonic motion has a maximum displacement from equilibrium of 6.2 m...

13) An object undergoing simple harmonic motion has a maximum displacement from equilibrium of 6.2 m att =0.00 s. If the frequency of oscillation is 0.255 Hz, what is the object's displacement from equilibrium when i 3.5 s? A) 4.8 m B) 5.6 m C) 3.7 m D) 3.1 m
of 26 2 -0.5+ -1+ t(s The graph above shows the position of an object in...

of 26 2 -0.5+ -1+ t(s The graph above shows the position of an object in simple harmonic motion as a function of time. What are the first two times after zero at which the object has its maximum acceleration? What is the absolute value of the maximum acceleration? Hints: F = ma and by Hooke's law F = kAx. The period of a mass-spring system in SHM is T = 2(mk). Solve for km, then find a amax m/s2

1. An object is undergoing simple harmonic motion with a period of 9.45 seconds and an...

1. An object is undergoing simple harmonic motion with a period of 9.45 seconds and an amplitude of A = 0.110 meters. At t = 0 the object is at x = 0.00 meters and is moving in the positive direction. How far from the equilibrium position is the object when t = 6.00 seconds? 2. Write an equation that correctly describes a traveling wave disturbance y(x,t) propagating in the +x direction that satisfies the following conditions: a. The maximum...
