8. [1pt]
An object is undergoing simple harmonic motion. The graph shows the position of the object as a function of time. What is the first time after t = 0 s when the speed reaches a maximum?


6 דיוי די, ידידידידידין 5 4 t (s) 3 2 1 0 ? ? * ה א ר י ת פי ס = N x (כו)

Answer:

9. [1pt]
What is the first time after t = 0 s, when the magnitude of the acceleration is a maximum?

Answer:

10. [1pt]
What is the maximum acceleration that the object experiences?

Answer:

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

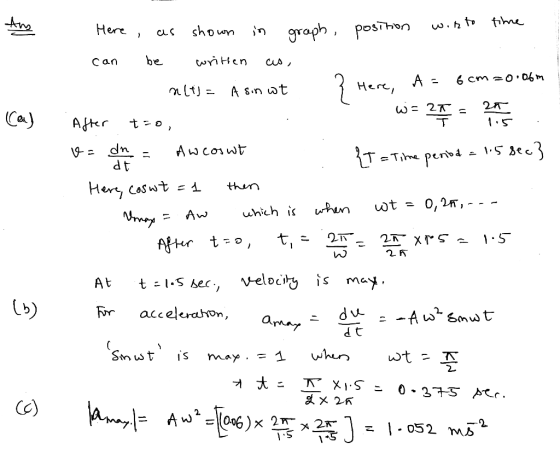

Ang nity= Asin wt Here, W-27 21 1.5 Here , as shown in graph position wirto time can be written as, e, A= 6cm =0.06m After tr

0 0
Add a comment
Know the answer?
Add Answer to:
8. [1pt] An object is undergoing simple harmonic motion. The graph shows the position of the...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • 8. [1] An object is undergoing simple harmonic motion. The graph shows the position of the...

    8. [1] An object is undergoing simple harmonic motion. The graph shows the position of the object as a function of time. What is the first time after when the speed reaches a maximum? Answer: Submit All Answers Last Answer: 0.5s Not yet correct, tries 2/15 9. [1pt What is the first time after r 0s, when the magnitude of the acceleration is a maximum? Answer: Sub Not yet correct, tries 1/15 Al Answers Last Answer: 0.3s 10.[1pt) What is...

  • An object is undergoing simple harmonic motion. The graph shows the position of the object as...

    An object is undergoing simple harmonic motion. The graph shows the position of the object as a function of time. What is the first time after t = 0 s when the speed reaches a maximum? x (cm) á ábOENWA 0 1 2 4 5 6 3 t (s)

  • An object is undergoing simple harmonic motion in the -direction such that is equilibrium position is...

    An object is undergoing simple harmonic motion in the -direction such that is equilibrium position is at z 0. At time t 0 the objects position, velocity, and acceleration are z = 0.448 m, u = 0.207 m/s, and a =-0.359 rn/82. respectively. For radians, enter 'rad" as the unit. For a full list of accepted units, use the "Units Help" link below. (a) What is the angular frequency of the object's motion? Number Units (b) What is the amplitude...

  • The position function of a particle undergoing Simple Harmonic Motion is given below: D. 2 =...

    The position function of a particle undergoing Simple Harmonic Motion is given below: D. 2 = 5 sin (36), where x is in m, and t is in s. Round your answers to the nearest tenth. Do not include units in your answers. (1) What is the particle's period of motion, in s, ? (2) Where will the particle be at t=3s, in m, ? (3) How fast will the particle move at t=1 s, in m/s, ? (4) What...

  • An object undergoing simple harmonic motion in the x-direction has a period of 2.0 seconds, an...

    An object undergoing simple harmonic motion in the x-direction has a period of 2.0 seconds, an amplitude of 5 cm and begins its oscillation at t = 0 at its maximum value of x. What equation could describe its motion?

  • A particle is undergoing simple harmonic motion with an equlibirum position of x=0 m. At t=0...

    A particle is undergoing simple harmonic motion with an equlibirum position of x=0 m. At t=0 s, the position, velocity, and acceleration are given as: x =0.454 m v=0.166 m/s a=−0.34 m/s2 a) What is the angular frequency of the particle? ω = rad/s b) What is the amplitude of the particle? A = m c) What is the phase constant of the particle? ϕ0 = rad d) What is the particle's position at t=11.3 s? x = m e)...

  • 3. A particle moving along the x axis in simple harmonic motion starts from its equilibrium...

    3. A particle moving along the x axis in simple harmonic motion starts from its equilibrium position, the origin, at t=0 s and moves to the right. The amplitude of its motion is 2.00 cm, and the frequency is 1.50 Hz. (a) Determine the position, velocity, and acceleration equations for this particle. (b) Determine the maximum speed of this particle and the first time it reaches this speed after t=0 s.

  • of 26 2 -0.5+ -1+ t(s The graph above shows the position of an object in...

    of 26 2 -0.5+ -1+ t(s The graph above shows the position of an object in simple harmonic motion as a function of time. What are the first two times after zero at which the object has its maximum acceleration? What is the absolute value of the maximum acceleration? Hints: F = ma and by Hooke's law F = kAx. The period of a mass-spring system in SHM is T = 2(mk). Solve for km, then find a amax m/s2

  • We know that objects undergoing simple harmonic motion have an acceleration that is proportional to their...

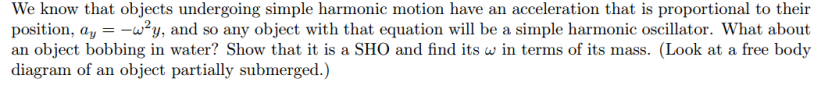

    We know that objects undergoing simple harmonic motion have an acceleration that is proportional to their position, ay = -w^2 y, and so any object with that equation will be a simple harmonic oscillator. What about an object bobbing in water? Show that it is a SHO and find its w in terms of its mass. (Look at a free body diagram of an object partially submerged.)

  • 7. An object is undergoing SHM(simple harmonic motion) with period 0.900 s and amplitude 0.320 m....

    7. An object is undergoing SHM(simple harmonic motion) with period 0.900 s and amplitude 0.320 m. At t = 0 the object is at x = 0.320 m and is instantaneously at rest. Calculate the time it takes the object to go (a) from x= 0.320 m to x = 0.160 m and (b) from x = 0.160 m to x = 0.
