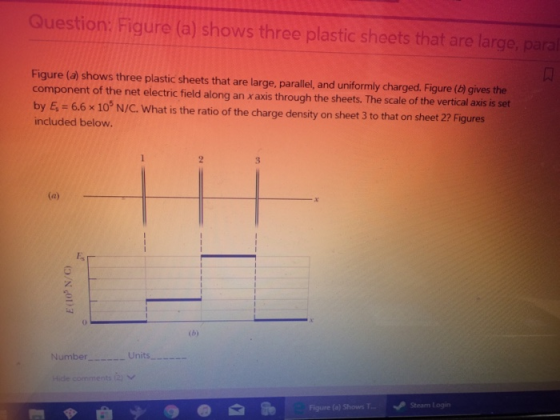

Question: Figure (a) shows three plastic sheets that are large, paral Figure (a) shows three plastic...
Figure (a) shows three plastic sheets that are large, parallel, and uniformly charged. Figure (b) gives the component of the net electric field along an x axis through the sheets.
Figure (a) shows three plastic sheets that are large, parallel, and uniformly charged. Figure (b) gives the component of the net electric field along an x axis through the sheets. The scale of the vertical axis is set by Es = 6.6 x 105 N/C. what is the ratio of the charge density on sheet 3 to that on sheet 2?
Figure a shows three plastic sheets that are large, parallel, and uniformly charged. Figure b gives...
Figure a shows three plastic sheets that are large, parallel,
and uniformly charged. Figure b gives the component of the net
electric field along an x axis through the sheets. The scale of the
vertical axis is set by Es = 5 × 105 N/C. What is the ratio of the
charge density on sheet 3 to that on sheet 2?
