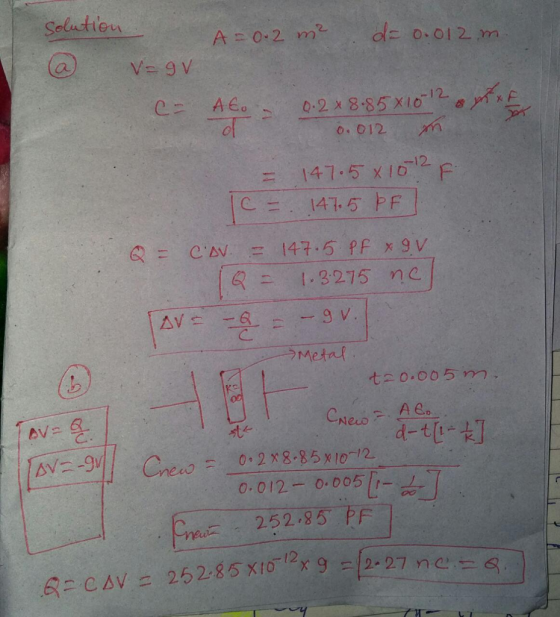

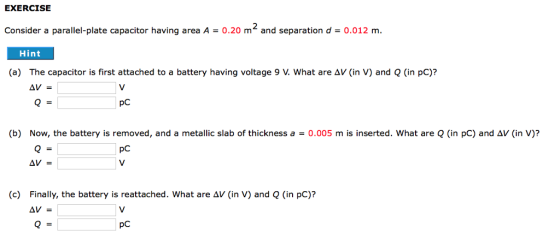

EXERCISE Consider a parallel-plate capacitor having area A0.20 mand separation d-0.012 m. Hint (a) The capacitor...
Effect of a Metallic Slab A parallel-plate capocitor has a plate separation d and plate area...
Effect of a Metallic Slab A parallel-plate capocitor has a plate separation d and plate area A. An uncharged metallic slab of thickness a is inserted midway between the plates (b) The equivalent circuit of the device in part (a) consists of two capacitors in series, each having a plate separation (a) A parallel-plate capacitor of plate separation d partially filled with a metalic slab of (d-a) (a) Find the capacitance of the device. SOLUTION Conceptualize Figure (a) shows the...
A parallel-plate capacitor has plate area of 0.12 m2and plate separation 1.2 cm. It is charged...
A parallel-plate capacitor has plate area of 0.12 m2and plate separation 1.2 cm. It is charged by a battery to potential difference of 120 V, then disconnected. A dielectric slab, thickness 4.0 mm and dielectric constant 4.8, is placed symmetrically between the plates.(a) Calculate the capacitance before and after the slab is inserted.(b) Calculate the free charge q before and after the slab is inserted.(c) Calculate the magnitude of the electric field in the space between the plates and the...
A parallel-plate air capacitor of area A = 21.3 cm2 and plate separation of d =...
A parallel-plate air capacitor of area A = 21.3 cm2 and plate separation of d = 2.70 mm is charged by a battery to a voltage of 63.0 V. What is the charge on the capacitor? If a dielectric material with κ = 3.60 is inserted so that it fills the volume between the plates (with the capacitor still connected to the battery), how much additional charge will flow from the battery onto the positive plate?
A parallel-plate capacitor of capacitance Co, plate area A, spacing d is charged to voltage V....
A parallel-plate capacitor of capacitance Co, plate area A, spacing d is charged to voltage V. and then disconnected from the charging battery. A slab with dielectric constant K and thickness d/2 is thrust into the capacitor, as shown in the figure below; the slab is exactly halfway between the plates. к (a) What is the new capacitance in terms of Co? (b) What is the ratio of the stored energy before to that after the slab is inserted (U/0.)?...
A parallel-plate air capacitor of area A = 12.1 cm2 and plate separation of d = 3.90...
A parallel-plate air capacitor of area A = 12.1 cm2 and plate separation of d = 3.90 mm is charged by a battery to a voltage of 53.0 V. a)What is the charge on the capacitor? b)If a dielectric material with κ = 5.00 is inserted so that it fills the volume between the plates (with the capacitor still connected to the battery), how much additional charge will flow from the battery onto the positive plate?
3. Energy of a capacitor. [20] A parallel-plate capacitor has area A and plate separation d....
3. Energy of a capacitor. [20] A parallel-plate capacitor has area A and plate separation d. Initially the capacitor has an air gap (K=1). (a) The capacitor is connected to a battery with voltage (EMF) E. What is the strength of the clectric field inside the capacitor? (5) (b) What is the charge on the capacitor? [5] The capacitor is disconnected from the battery. Then a metal block (K=0 ) with the same area and thickness d/2 is inserted into...
A parallel-plate capacitor has plates of area 0.13 m2 and a separation of 1.9 cm. A battery...
A parallel-plate capacitor has plates of area 0.13 m2 and a separation of 1.9 cm. A battery charges the plates to a potential difference of 150 V and is then disconnected. A dielectric slab of thickness 9.3 mm and dielectric constant 4.0 is then placed symmetrically between the plates. (a) What is the capacitance before the slab is inserted? (b) What is the capacitance with the slab in place? What is the free charge q (c) before and (d) after the slab is inserted? What is the magnitude of the...
A parallel plate capacitor with adjustable plate separation d and adjustable area A is connected to...
A parallel plate capacitor with adjustable plate separation d and adjustable area A is connected to a battery. The capacitor is fully charged to Q Coulombs and a voltage of V Volts. (C is the capacitance and U is the stored energy.) Give all correct answers concerning a parallel-plate capacitor charged by a battery (e.g. B. AC, CDF). A) After being disconnected from the battery. increasing d increases V. B) After being disconnected from the battery increasing the area A...
The figure shows a parallel-plate capacitor of plate area A and plate separation d. A potential differenceV0 is applied between the plates.
The figure shows a parallel-plate capacitor of plate area A and plate separation d. A potential differenceV0 is applied between the plates. While the
battery remains connected, a dielectric slab of thickness b and dielectric constant κ is placed between the plates
as shown. Assume A = 130 cm2, d = 1.94
cm, V0 = 72.6 V, b = 0.735 cm, and κ =
3.15. Calculate (a) the capacitance,(b) the charge on the capacitor plates,(c) the electric field in the gap, and(d)...
Two parallel plates, each having area A 3676cm are connected to the terminals of a battery of voltage V, 6 V A as shown...
Two parallel plates, each having area A 3676cm are connected to the terminals of a battery of voltage V, 6 V A as shown. The plates are separated by a distance d 0.42cm. You may assume (contrary to the drawing) that the separation between the plates is small compared to a linear dimension of the plate + A 1) What is C, the capacitance of this parallel plate capacitor? 7.746E-4 uF Submit 2) What is Q, the charge stored on...
Effect of a Metallic Slab A parallel-plate capocitor has a plate separation d and plate area A. An uncharged metallic slab of thickness a is inserted midway between the plates (b) The equivalent circuit of the device in part (a) consists of two capacitors in series, each having a plate separation (a) A parallel-plate capacitor of plate separation d partially filled with a metalic slab of (d-a) (a) Find the capacitance of the device. SOLUTION Conceptualize Figure (a) shows the...
A parallel-plate capacitor of capacitance Co, plate area A, spacing d is charged to voltage V. and then disconnected from the charging battery. A slab with dielectric constant K and thickness d/2 is thrust into the capacitor, as shown in the figure below; the slab is exactly halfway between the plates. к (a) What is the new capacitance in terms of Co? (b) What is the ratio of the stored energy before to that after the slab is inserted (U/0.)?...
3. Energy of a capacitor. [20] A parallel-plate capacitor has area A and plate separation d. Initially the capacitor has an air gap (K=1). (a) The capacitor is connected to a battery with voltage (EMF) E. What is the strength of the clectric field inside the capacitor? (5) (b) What is the charge on the capacitor? [5] The capacitor is disconnected from the battery. Then a metal block (K=0 ) with the same area and thickness d/2 is inserted into...
A parallel plate capacitor with adjustable plate separation d and adjustable area A is connected to a battery. The capacitor is fully charged to Q Coulombs and a voltage of V Volts. (C is the capacitance and U is the stored energy.) Give all correct answers concerning a parallel-plate capacitor charged by a battery (e.g. B. AC, CDF). A) After being disconnected from the battery. increasing d increases V. B) After being disconnected from the battery increasing the area A...
Two parallel plates, each having area A 3676cm are connected to the terminals of a battery of voltage V, 6 V A as shown. The plates are separated by a distance d 0.42cm. You may assume (contrary to the drawing) that the separation between the plates is small compared to a linear dimension of the plate + A 1) What is C, the capacitance of this parallel plate capacitor? 7.746E-4 uF Submit 2) What is Q, the charge stored on...
