A parallel-plate capacitor has plates of area 0.13 m2 and a separation of 1.9 cm. A battery...

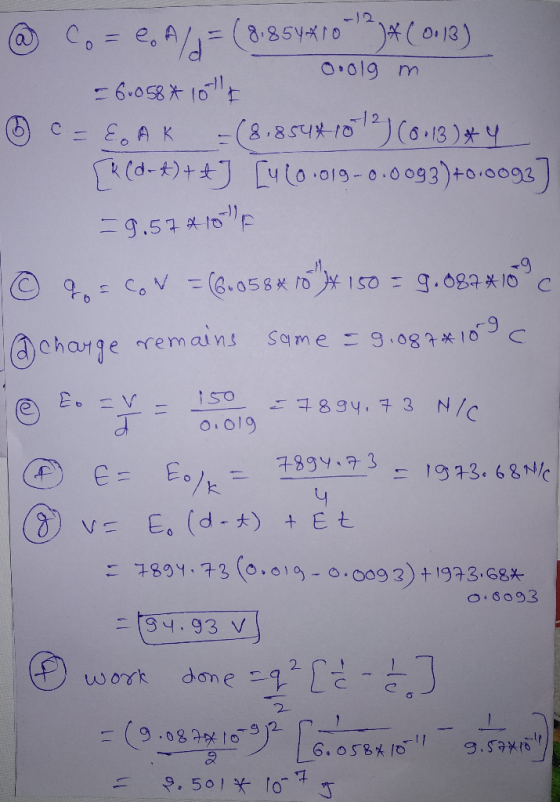

A parallel-plate capacitor has plates of area 0.13 m2 and a separation of 1.9 cm. A battery charges the plates to a potential difference of 150 V and is then disconnected. A dielectric slab of thickness 9.3 mm and dielectric constant 4.0 is then placed symmetrically between the plates. (a) What is the capacitance before the slab is inserted? (b) What is the capacitance with the slab in place? What is the free charge q (c) before and (d) after the slab is inserted? What is the magnitude of the electric field (e) in the space between the plates and dielectric and (f) in the dielectric itself? (g) With the slab in place, what is the potential difference across the plates? (h) How much external work is involved in inserting the slab?
Homework Answers
Add Answer to:
A parallel-plate capacitor has plates of area 0.13
m2 and a separation of 1.9 cm. A battery...
A parallel-plate capacitor has plate area of 0.12 m2and plate separation 1.2 cm. It is charged...
A parallel-plate capacitor has plate area of 0.12 m2and plate separation 1.2 cm. It is charged by a battery to potential difference of 120 V, then disconnected. A dielectric slab, thickness 4.0 mm and dielectric constant 4.8, is placed symmetrically between the plates.(a) Calculate the capacitance before and after the slab is inserted.(b) Calculate the free charge q before and after the slab is inserted.(c) Calculate the magnitude of the electric field in the space between the plates and the...
A parallel-plate capacitor has a plate area of A = 250 cm2 and a separation of...
A parallel-plate capacitor has a plate area of A = 250 cm2 and a separation of d = 2.00 mm. The capacitor is charged to a potential difference of V0 = 150 V by a battery. A dielectric sheet (κ = 3.50) of the same area but thickness ℓ = 1.00 mm is placed between the plates without disconnecting the battery. (See figure 24-18 on page 642). Determine the initial capacitance of the air-filled capacitor. Determine the charge on the...
The plates of an air-filled parallel-plate capacitor with a plate area of 16.5 cm2 and a...
The plates of an air-filled parallel-plate capacitor with a plate area of 16.5 cm2 and a separation of 8.80 mm are charged to a 130-V potential difference. After the plates are disconnected from the source, a porcelain dielectric with κ = 6.5 is inserted between the plates of the capacitor. (a) What is the charge on the capacitor before and after the dielectric is inserted? Qi = ___C Qf = ____C (b) What is the capacitance of the capacitor after...
A parallel-plate capacitor has a plate area of A = 250 cm2 and a separation of...
A parallel-plate capacitor has a plate area of A = 250 cm2 and a separation of d = 2.00 mm. The capacitor is charged to a potential difference of V0 = 150 V by a battery. A dielectric sheet (κ = 3.50) of the same area but thickness ℓ = 1.00 mm is placed between the plates without disconnecting the battery. (See figure 24-18 on page 642). Determine the electric field in the dielectric. Determine the free charge on the...
The figure shows a parallel-plate capacitor of plate area A and plate separation d. A potential differenceV0 is applied between the plates.
The figure shows a parallel-plate capacitor of plate area A and plate separation d. A potential differenceV0 is applied between the plates. While the
battery remains connected, a dielectric slab of thickness b and dielectric constant κ is placed between the plates
as shown. Assume A = 130 cm2, d = 1.94
cm, V0 = 72.6 V, b = 0.735 cm, and κ =
3.15. Calculate (a) the capacitance,(b) the charge on the capacitor plates,(c) the electric field in the gap, and(d)...
A parallel plate capacitor of capacitance Co has plates of area A with separation d between...
A parallel plate capacitor of capacitance Co has plates of area A with separation d between them. When it is connected to a battery of voltage Vo, it has a charge of magnitude Qo on its plates. It is then disconnected from the battery and the space between the plates is filled with a material of dielectric constant 3. After the dielectric is added, the magnitudes of the charge on the plates and the potential difference between them are 15.
A parallel-plate capacitor of capacitance Co, plate area A, spacing d is charged to voltage V....
A parallel-plate capacitor of capacitance Co, plate area A, spacing d is charged to voltage V. and then disconnected from the charging battery. A slab with dielectric constant K and thickness d/2 is thrust into the capacitor, as shown in the figure below; the slab is exactly halfway between the plates. к (a) What is the new capacitance in terms of Co? (b) What is the ratio of the stored energy before to that after the slab is inserted (U/0.)?...
A parallel-plate capacitor has a capacitance of 1.9 µF and a plate separation of 1.9 mm....
A parallel-plate capacitor has a capacitance of 1.9 µF and a plate separation of 1.9 mm. (a) What is the maximum potential difference between the plates such that dielectric breakdown of the air between the plates does not occur? (Use Emax = 3 MV/m.) ________________kV (b) How much charge is stored at this maximum potential difference? ___________________mC
A parallel plate capacitor of capacitance Co has plates of area A with separation d between...
A parallel plate capacitor of capacitance Co has plates of area A with separation d between them. When it is connected to a battery of voltage Vo, it has charge of magnitude Qo on its plates. It is then disconnected from the battery and the plates are pulled apart to a separation 2d without discharging them. After the plates are 2d apart, by what factor does the capacitance change? By what factor does the potential difference between the plates change?
A parallel plate capacitor with plate separation d is connected to a battery. The capacitor is...
A parallel plate capacitor with plate separation d is connected to a battery. The capacitor is fully charged to Q Coulombs and a voltage of V. (C is the capacitance and U is the stored energy.) Answer the following questions regarding the capacitor charged by à battery. For each statement below, select True or False After being disconnected from the battery, inserting a dielectric with K will decrease V After being disconnected from the battery, increasing d decreases V E...
A parallel plate capacitor of capacitance Co has plates of area A with separation d between them. When it is connected to a battery of voltage Vo, it has a charge of magnitude Qo on its plates. It is then disconnected from the battery and the space between the plates is filled with a material of dielectric constant 3. After the dielectric is added, the magnitudes of the charge on the plates and the potential difference between them are 15.
A parallel-plate capacitor of capacitance Co, plate area A, spacing d is charged to voltage V. and then disconnected from the charging battery. A slab with dielectric constant K and thickness d/2 is thrust into the capacitor, as shown in the figure below; the slab is exactly halfway between the plates. к (a) What is the new capacitance in terms of Co? (b) What is the ratio of the stored energy before to that after the slab is inserted (U/0.)?...
A parallel plate capacitor with plate separation d is connected to a battery. The capacitor is fully charged to Q Coulombs and a voltage of V. (C is the capacitance and U is the stored energy.) Answer the following questions regarding the capacitor charged by à battery. For each statement below, select True or False After being disconnected from the battery, inserting a dielectric with K will decrease V After being disconnected from the battery, increasing d decreases V E...
