Question

1. A parallel-plate capacitor has a plate area of A = 250 cm² and a separation of d = 2.00 mm. The capacitor is charged to a potential difference of V₀ = 150 V by a battery. A dielectric sheet (κ = 3.50) of the same area but thickness ℓ = 1.00 mm is placed between the plates without disconnecting the battery. (See figure 24-18 on page 642).
   1. Determine the electric field in the dielectric.
   2. Determine the free charge on the plates after the dielectric is added.
   3. Determine the charge induced on each face of the dielectric after it is inserted.
   4. Determine the capacitance after the dielectric is in place.

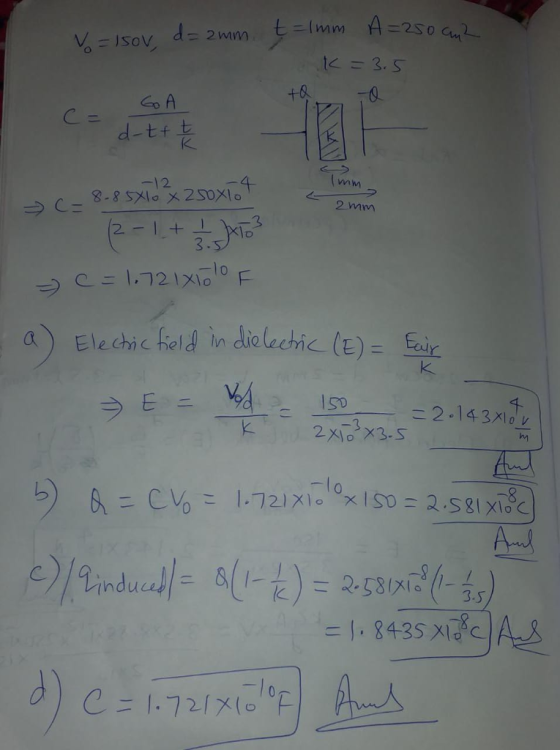

Answer 1

Dear student,

Find this solution.if any issue with that don't forget to write in comment section.I will rectify them as soon as possible.

If you find the solution helpful and kindly RATE THE ANSWER it would be appreciated.

Your rating is important to me.

Thanks for asking..

3.5 0 +各 d-tt上 -12 千 min 2 mm す Cz a Elecic herd in holecic(t)-Ei ラE 1so 3.S
