A parallel-plate capacitor has a capacitance of 140 pF, a plate area of 125 cm2, and...

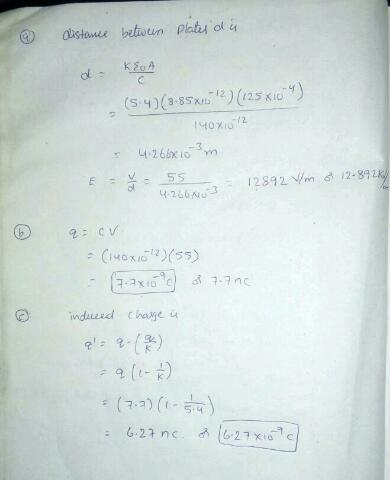

A parallel-plate capacitor has a capacitance of 140 pF, a plate area of 125 cm2, and a mica dielectric (κ = 5.4). At 55 V potential difference, calculate the following values.
(a) E in the mica
???V/m
(b) the magnitude of the free charge on the plates
???C
(c) the magnitude of the induced surface charge on the mica
???C
Homework Answers
