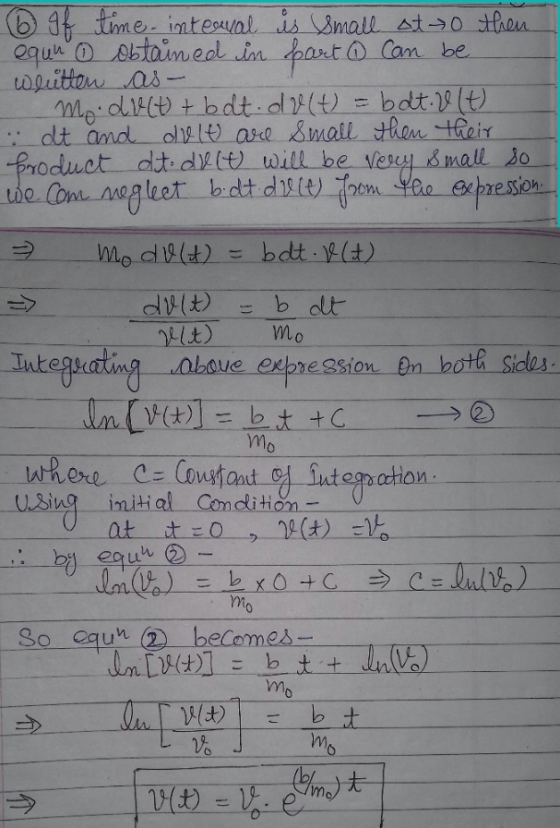

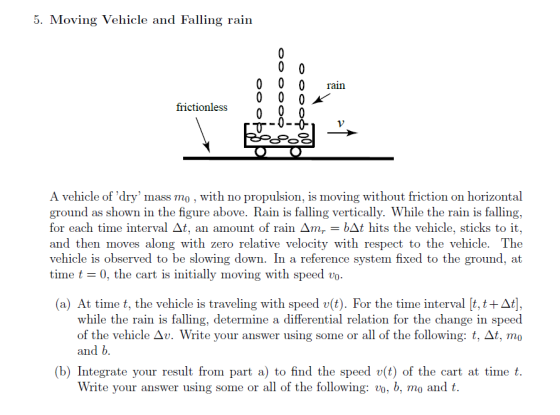

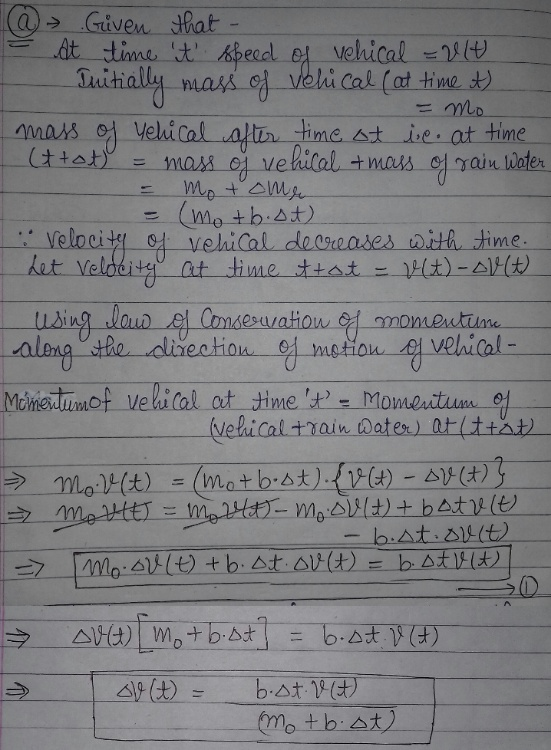

![5. Moving Vehicle and Falling rain 0 0 0 rain frictionless A vehicle ofdry mass mo , with no propulsion, is moving without friction on horizontal ground as shown in the figure above. Rain is falling vertically. While the rain is falling, for each time interval Δt, an amount of rain Δmr-łAt hits the vehicle, sticks to it and then moves along with zero relative velocity with respect to the vehicle. The vehicle is observed to be slowing down. In a reference system fixed to the ground, at time t 0, the cart is initially moving with speed vo a) At time t, the vehicle is traveling with speed v(t). For the time interval t, t +At], while the rain is falling, determine a differential relation for the change in speed of the vehicle Δυ. Write your answer using some or all of the following: t. At, m0 and b (b) Integrate your result from part a) to find the speed v(t) of the cart at time t. Write your answer using some or all of the following: vo, b, mo andt](http://img.homeworklib.com/questions/94f4f0c0-6fcf-11ea-82cb-5926074b1e5f.png?x-oss-process=image/resize,w_560)
Homework Answers
Add Answer to:
5. Moving Vehicle and Falling rain 0 0 0 rain frictionless A vehicle of'dry' mass mo...
