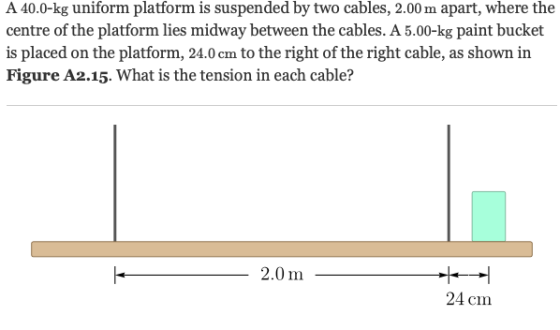

A 40.0-kg uniform platform is suspended by two cables, 2.00m apart, where the center of the platform lies midway between the cables. A 5.00-kg paint bucket is placed on the platform, 24.0cm to the right of the right cable, as shown in Figure A2.15. What is the tension in each cable?

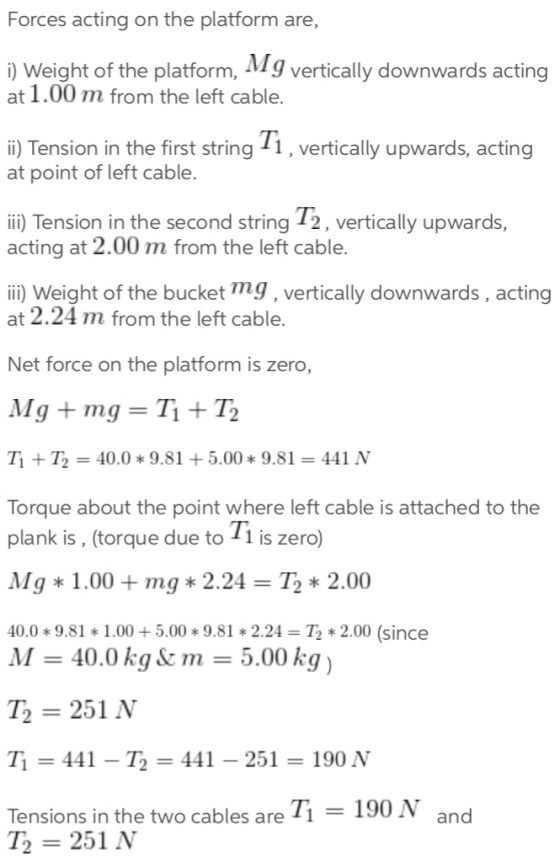

Homework Answers
Add Answer to:
A 40.0-kg uniform platform is suspended by two cables, 2.00m
apart, where the center of the...
A uniform 50-kg scaffold of length 7.0 m is supported by two light cables, as shown...
A uniform 50-kg scaffold of length 7.0 m is supported by two light cables, as shown below. A 58-kg painter stands 1.0 m from the left end of the scaffold, and his paint bucket is 1.5 m from the right end. If the tension in the left cable is twice that in the right cable, find the tensions in the cables and the mass of the bucket. Express all answers rounded to one decimal place.
1. A uniform 40.0-kg scaffold of length 6.0 m is supported by two light cables, as...
1. A uniform 40.0-kg scaffold of length 6.0 m is supported by two light cables, as shown below. An 80.0-kg painter stands 1.0 m from the right end of the scaffold, and his 2.5 kg painting equipment is 1.5 m from the left end. a) Draw an FBD of the scaffold and clearly label all the forces acting on the scaffold b) Summing the torques acting on the scaffold, find the tension in the right-hand cable. Summing the forces acting...
A 18.8 kg traffic light is suspended from two cables as shown in the figure below.
A 18.8 kg traffic light is suspended from two cables as shown in the figure below. Find the tension in each cable in newtons. left cable _______ right cable _______
In a rescue, a 77.4 kg police officer is suspended by two cables, as shown in...
In a rescue, a 77.4 kg police officer is suspended by two
cables, as shown in the figure. Cable A makes an angle
?A = 29.0° with respect to the horizontal, and cable B,
?B = 67.0°. Sketch a free body diagram. Calculate the
tension in cable A.
A weight of 800 pounds is suspended from two cables, as shown in the figure. What...
A weight of 800 pounds is suspended from two cables, as shown in the figure. What are the tensions in the two cables? Round to one decimal place. 35° 50° 800 pounds Left cable tension: Right cable tension:
d-f Reasoning Problem 2. (28 pts) A uniform 35.0-kg aluminum platform of length 5.0 m is supported b two light cables, as shown below. An 7o.o-kg painter stands o.8 m from the left end of the scaf...
d-f
Reasoning Problem 2. (28 pts) A uniform 35.0-kg aluminum platform of length 5.0 m is supported b two light cables, as shown below. An 7o.o-kg painter stands o.8 m from the left end of the scaffold, and his painting equipment is 1.o m from the right end. If the tension in the left cable is twice that in the right cable, find: d. the tensions in the cables (10 pts) e. the mass of the equipment.(10 pts) f. How...
A 397-N, uniform, 1.32-m bar is suspended horizontally by two vertical cables at each end. Cable...
A 397-N, uniform, 1.32-m bar is suspended horizontally by two vertical cables at each end. Cable A can support a maximum tension of 510.0 N without breaking, and cable B can support up to 413.0 N . You want to place a small weight on this bar. Part APart complete What is the heaviest weight you can put on without breaking either cable? Part B Where should you put this weight, what is d?
A 338- N , uniform, 1.41- m bar is suspended horizontally by two vertical cables at...
A 338- N , uniform, 1.41- m bar is suspended horizontally by two vertical cables at each end. Cable A can support a maximum tension of 509.0 N without breaking, and cable B can support up to 445.0 N . You want to place a small weight on this bar. A-What is the heaviest weight you can put on without breaking either cable? B-Where should you put this weight?
A uniform board of length 2.40 m and mass 4.00 kg is pivoted at one end and has a rope attached at the other end, as sho...
A uniform board of length 2.40 m and mass 4.00 kg is pivoted at
one end and has a rope attached at the other end, as shown in the
figure below. A bucket of mass 2.00 kg is suspended 40.0 cm from
the rope. Find: (a) the tension in the rope; (b) the horizontal and
vertical forces exerted by the pivot.
27.2 kg mass is suspended by the cable assembly as shown in the figure below. The...
27.2 kg mass is suspended by the cable assembly as shown in the figure below. The cables have no mass of their own. The cable to the left (cable 1) of the mass makes an angle, theta θ1 = 0.00° with the horizontal, and the cable to the right (cable 2) makes an angle, theta θ2 = 38.5°. If the mass is at rest what is the tension in each of the cables, T1 and T2? The acceleration due to...
1. A uniform 40.0-kg scaffold of length 6.0 m is supported by two light cables, as shown below. An 80.0-kg painter stands 1.0 m from the right end of the scaffold, and his 2.5 kg painting equipment is 1.5 m from the left end. a) Draw an FBD of the scaffold and clearly label all the forces acting on the scaffold b) Summing the torques acting on the scaffold, find the tension in the right-hand cable. Summing the forces acting...
In a rescue, a 77.4 kg police officer is suspended by two
cables, as shown in the figure. Cable A makes an angle
?A = 29.0° with respect to the horizontal, and cable B,
?B = 67.0°. Sketch a free body diagram. Calculate the
tension in cable A.
A weight of 800 pounds is suspended from two cables, as shown in the figure. What are the tensions in the two cables? Round to one decimal place. 35° 50° 800 pounds Left cable tension: Right cable tension:
d-f
Reasoning Problem 2. (28 pts) A uniform 35.0-kg aluminum platform of length 5.0 m is supported b two light cables, as shown below. An 7o.o-kg painter stands o.8 m from the left end of the scaffold, and his painting equipment is 1.o m from the right end. If the tension in the left cable is twice that in the right cable, find: d. the tensions in the cables (10 pts) e. the mass of the equipment.(10 pts) f. How...
A uniform board of length 2.40 m and mass 4.00 kg is pivoted at
one end and has a rope attached at the other end, as shown in the
figure below. A bucket of mass 2.00 kg is suspended 40.0 cm from
the rope. Find: (a) the tension in the rope; (b) the horizontal and
vertical forces exerted by the pivot.
