A 338- N , uniform, 1.41- m bar is suspended horizontally by two vertical cables at...

A 338- N , uniform, 1.41- m bar is suspended horizontally by two vertical cables at each end. Cable A can support a maximum tension of 509.0 N without breaking, and cable B can support up to 445.0 N . You want to place a small weight on this bar. A-What is the heaviest weight you can put on without breaking either cable? B-Where should you put this weight?

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

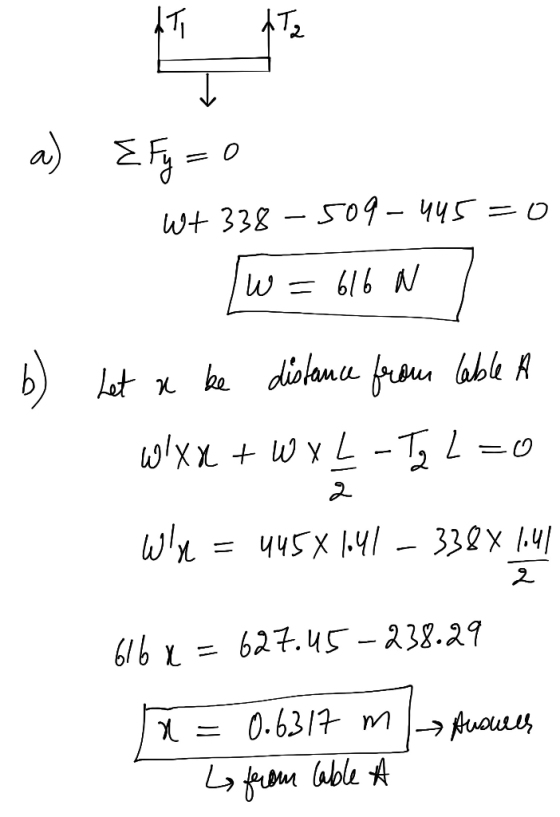

Answer #1

0 0
Add a comment
Know the answer?
Add Answer to:
A 338- N , uniform, 1.41- m bar is suspended horizontally by two vertical cables at...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • A 338-N, uniform, 1.62-m bar is suspended horizontally by two vertical cables at each end. Cable...

    A 338-N, uniform, 1.62-m bar is suspended horizontally by two vertical cables at each end. Cable A can support a maximum tension of 549.0 N without breaking, and cable B can support up to 417.0 N . You want to place a small weight on this bar. Here is what I have so far... Part A What is the heaviest weight you can put on without breaking either cable? w = 628   N <--- Correct Correct Part B Where should...

  • A 380-N, uniform, 1.25-m bar is suspended horizontally by two vertical cables at each end. Cable...

    A 380-N, uniform, 1.25-m bar is suspended horizontally by two vertical cables at each end. Cable A can support a maximum tension of 512.0 N without breaking, and cable B can support up to 443.0 N. You want to place a small weight on this bar. What is the heaviest weight you can put on without breaking either cable? Where should you put this weight?

  • A 352-N, uniform, 1.68-m bar is suspended horizontally by two vertical cables at each end. Cable...

    A 352-N, uniform, 1.68-m bar is suspended horizontally by two vertical cables at each end. Cable A can support a maximum tension of 516.0 N without breaking, and cable B can support up to 434.0 N . You want to place a small weight on this bar Part A What is the heaviest weight you can put on without breaking either cable? Part B Where should you put this weight?

  • A 397-N, uniform, 1.32-m bar is suspended horizontally by two vertical cables at each end. Cable...

    A 397-N, uniform, 1.32-m bar is suspended horizontally by two vertical cables at each end. Cable A can support a maximum tension of 510.0 N without breaking, and cable B can support up to 413.0 N . You want to place a small weight on this bar. Part A What is the heaviest weight you can put on without breaking either cable?Part B Where should you put this weight?

  • A 358-N, uniform, 1.44-m bar is suspended horizontally by two vertical cables at each end. Cable...

    A 358-N, uniform, 1.44-m bar is suspended horizontally by two vertical cables at each end. Cable A can support a maximum tension of 459.0 N without breaking, and cable B can support up to 439.0 N . You want to place a small weight on this bar. A) What is the heaviest weight you can put on without breaking either cable? w=_____N B) Where should you put this weight? d=______m from the cable A

  • A 397-N, uniform, 1.32-m bar is suspended horizontally by two vertical cables at each end. Cable...

    A 397-N, uniform, 1.32-m bar is suspended horizontally by two vertical cables at each end. Cable A can support a maximum tension of 510.0 N without breaking, and cable B can support up to 413.0 N . You want to place a small weight on this bar. Part APart complete What is the heaviest weight you can put on without breaking either cable? Part B Where should you put this weight, what is d?

  • A 12.0 m uniform beam is hinged to a vertical wall and held horizontally by a...

    A 12.0 m uniform beam is hinged to a vertical wall and held horizontally by a 5.00 m cable attached to the wall 4.00 m above the hinge, as shown in the figure below (Figure 1).The metal of this cable has a test strength of 0.900 kN which means that it will break if the tension in it exceeds that amount. You may want to review For related problem solving tips and strategies, you may want to view a Video...

  • The uniform steel beam of mass m and length is suspended by the two cables at...

    The uniform steel beam of mass m and length is suspended by the two cables at A and B. If the cable at B suddenly breaks, determine the tension Tin the cable at A immediately after the break occurs. Treat the beam as a slender rod and show the result is independent of the length of the beam. 60° 60°

  • 2)A 3 meter rod with a weight of 1000 N is suspended by two cables and...

    2)A 3 meter rod with a weight of 1000 N is suspended by two cables and has a large box(3500 N in weight ) tied to the right hand side hanging vertically. The center of mass of the rod is.5 min from the leftmost edge. One cable is exactly on the leftmost end of rod with a tension of 4000 N at an angle of 30 degrees to rod . The second cable is 1 m to the right of...

  • A weight W= 500 N is suspended from two identical cables AB and BC, each with a weight of q= 10 N...

    A weight W= 500 N is suspended from two identical cables AB and BC, each with a weight of q= 10 N/m. If the maximum horizontal force allowed on the support cable is of 800 N, find: a) The shortest possible length of cable ABC. b) The height h on the previous situation. a= 20 m.
