86. Two uniformly charged plates carrying opposite charges are separated by a distance of 20 mm....
86. Two uniformly charged plates carrying opposite charges are separated by a distance of 20 mm....

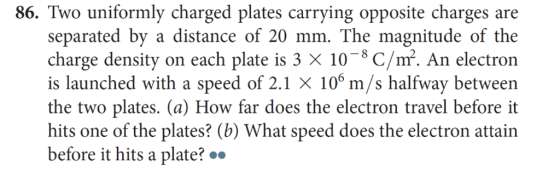

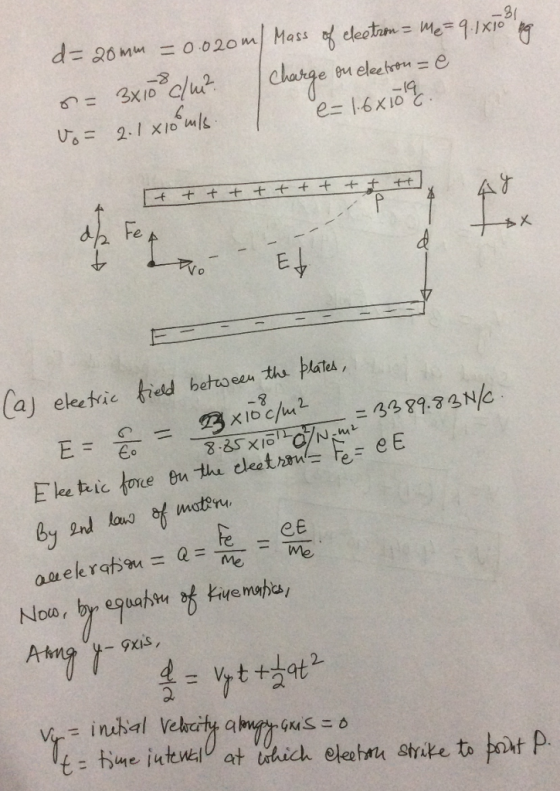

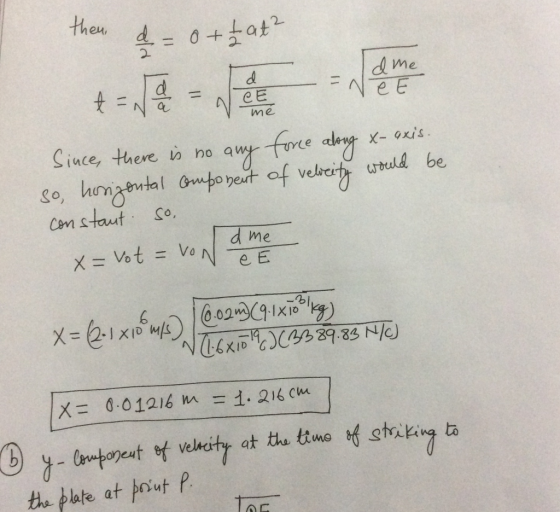

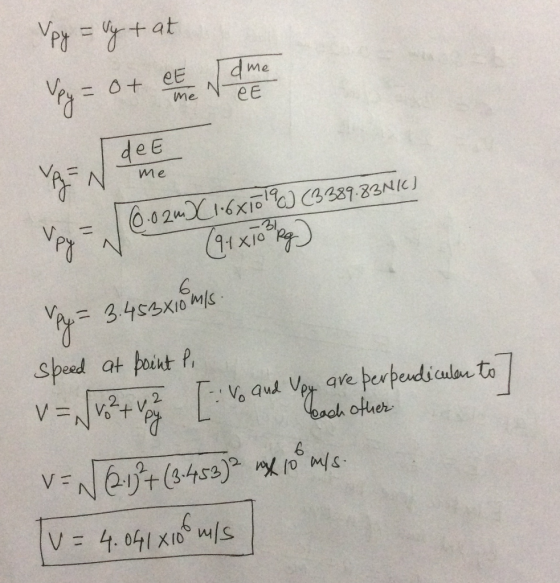

86. Two uniformly charged plates carrying opposite charges are separated by a distance of 20 mm. The magnitude of the charge density on each plate is 3 X 10-8 C/m. An electron is launched with a speed of 2.1 X 106 m/s halfway between the two plates. (a) How far does the electron travel before it hits one of the plates? (b) What speed does the electron attain before it hits a plate?.
Two plates separated by a distance 16.3 mm are charged to a potential difference of 7.25...
Two plates separated by a distance 16.3 mm are charged to a potential difference of 7.25 volts. A constant 6 81 N force pushes a -8.30 mC charge from the positively charged plate to the negatively charged plate. Using the concept of work-energy. Calculate the change In When energy deltaT. potential energy and total energy deltaE of the charge as it travels from one plate to the other Assume the initial speed of the electron is 0.
A pair of closely spaced parallel conducting plates, charged with equal and opposite electric charges, produces...
A pair of closely spaced parallel conducting plates, charged with equal and opposite electric charges, produces a uniform electric field in the region between them. In designing a cutting‑edge device that will revolutionize the electronics industry, Leticia sets up such a pair of plates separated by a distance 0.955 mm, then charges them so that the direction of the electric field in their interior region points from plate A to plate B. Her idea requires that electrons, when released from...
Two parallel plates having charges of equal magnitude but opposite sign are separated by 34.0 cm.
Two parallel plates having charges of equal magnitude but opposite sign are separated by 34.0 cm. Each plate has a surface charge density of 33.0 nC/m2, A proton is released from rest at the positive plate. (a) Determine the magnitude of the electric field between the plates from the charge density. (b) Determine the potential difference between the plates. (c) Determine the kinetic energy of the proton when it reaches the negative plate. (d) Determine the speed of the proton just before it strikes...
Two parallel plates having charges of equal magnitude but opposite sign are separated by 30.0 cm....
Two parallel plates having charges of equal magnitude but opposite sign are separated by 30.0 cm. Each plate has a surface charge density of 48.0 nC/m2 A proton is released from rest at the positive plate. (a) Determine the magnitude of the electric field between the plates from the charge density. kN/C (b) Determine the potential difference between the plates. (c) Determine the kinetic energy of the proton when it reaches the negative plate. (d) Determine the speed of the...
A pair of closely spaced parallel conducting plates, charged with equal and opposite electric charges, produces...
A pair of closely spaced parallel conducting plates, charged with equal and opposite electric charges, produces a uniform electric field in the region between them. In designing a cutting-edge device that will revolutionize the electronics industry, you set up such a pair of plates with a separation of 0.953 mm between them and charge them so that the direction of the electric field in their interior region is from plate A to plate B. Your idea requires that electrons, when...
Question Two parallel conducting plates are separated by 1 mm and carry equal but opposite surface...
Question Two parallel conducting plates are separated by 1 mm and carry equal but opposite surface charge densities. If the potential difference between them is 5 V, what is the magnitude of the surface charge density on each plate?
2) Consider two large, metal plates with equal and opposite charges as shown below: OV 300...
2) Consider two large, metal plates with equal and opposite charges as shown below: OV 300 V 3.0 mm 100 V 200 v a) Which plate, left or right, is the positively charged plate? How do you know? (1 pt) b) What is the magnitude and direction of the electric field at point A located halfway between the plates: y=0 m, x= 1.5mm? (2 pts) c) What is the magnitude and direction of the electric force felt by an electron...
1. A capacitor consists of two 4.8-cm-diameter circular plates separated by 1.0 mm. The plates are...
1. A capacitor consists of two 4.8-cm-diameter circular plates separated by 1.0 mm. The plates are charged to 170 V , then the battery is removed. How much work must be done to pull the plates apart to where the distance between them is 2.0 mm? (Express your answer in joules.) 2. A 2.5 mm -diameter sphere is charged to -4.4 nC . An electron fired directly at the sphere from far away comes to within 0.30 mm of the...
Two neutrally charged conducting square plates that are 23cm×23cm are separated by a distance of 1.3mm....
Two neutrally charged conducting square plates that are 23cm×23cm are separated by a distance of 1.3mm. Each plate is then connected to the opposite end of a 3.4V battery. What is the capacitance of the plates? F
86. Two uniformly charged plates carrying opposite charges are separated by a distance of 20 mm. The magnitude of the charge density on each plate is 3 X 10-8 C/m. An electron is launched with a speed of 2.1 X 106 m/s halfway between the two plates. (a) How far does the electron travel before it hits one of the plates? (b) What speed does the electron attain before it hits a plate?.
Two plates separated by a distance 16.3 mm are charged to a potential difference of 7.25 volts. A constant 6 81 N force pushes a -8.30 mC charge from the positively charged plate to the negatively charged plate. Using the concept of work-energy. Calculate the change In When energy deltaT. potential energy and total energy deltaE of the charge as it travels from one plate to the other Assume the initial speed of the electron is 0.
Two parallel plates having charges of equal magnitude but opposite sign are separated by 30.0 cm. Each plate has a surface charge density of 48.0 nC/m2 A proton is released from rest at the positive plate. (a) Determine the magnitude of the electric field between the plates from the charge density. kN/C (b) Determine the potential difference between the plates. (c) Determine the kinetic energy of the proton when it reaches the negative plate. (d) Determine the speed of the...
A pair of closely spaced parallel conducting plates, charged with equal and opposite electric charges, produces a uniform electric field in the region between them. In designing a cutting-edge device that will revolutionize the electronics industry, you set up such a pair of plates with a separation of 0.953 mm between them and charge them so that the direction of the electric field in their interior region is from plate A to plate B. Your idea requires that electrons, when...
2) Consider two large, metal plates with equal and opposite charges as shown below: OV 300 V 3.0 mm 100 V 200 v a) Which plate, left or right, is the positively charged plate? How do you know? (1 pt) b) What is the magnitude and direction of the electric field at point A located halfway between the plates: y=0 m, x= 1.5mm? (2 pts) c) What is the magnitude and direction of the electric force felt by an electron...
