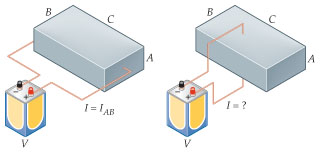

Consider a rectangular block of metal of height A = 1.70 cm , width B = 3.90 cm , and length C = 7.00 cm , as shown in the figure (Figure 1). If a potential difference V = 1.5 V is maintained along the length C of the block, a current IC = 1.50 mA is observed to flow. Find the current that flows if the same potential difference V = 1.5V is applied along the height A of the block?
Homework Answers
Add Answer to:
