Suppose you have a ray of light going from water to glass. If the angle of...

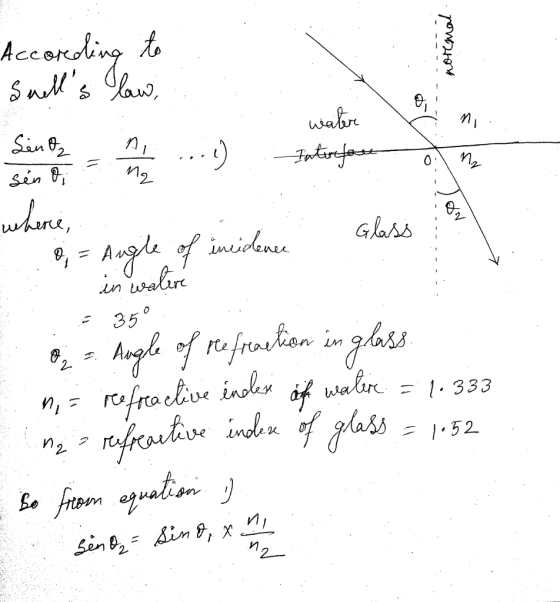

Suppose you have a ray of light going from water to glass. If the angle of incidence (in water) is 35.0 degrees what will be the angle of refraction (in glass)?

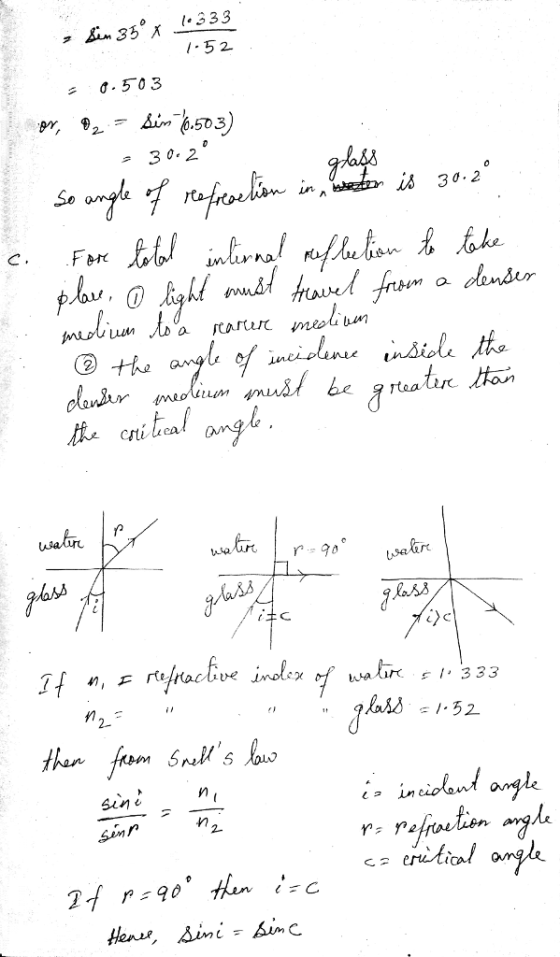

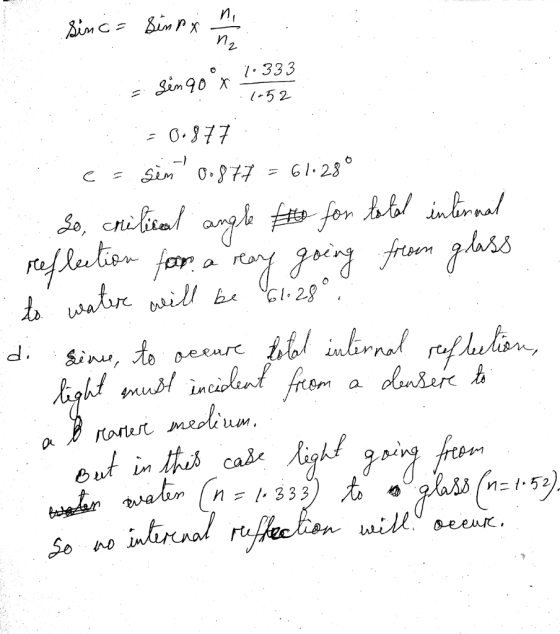

c. What is the critical angle for total internal reflection for a ray going from glass to water?
d. What is the critical angle for total internal reflection for a ray going from water to glass?
Homework Answers
Add Answer to:
Suppose you have a ray of light going from water to glass. If
the angle of...
The critical angle for total internal reflection when going from one type of glass to water...
The critical angle for total internal reflection when going from one type of glass to water is 56 degrees. If light has an angle of incidence of 20 degrees when going from the water to the glass, what is the angle of the transmitted ray to the normal of the interface?
A ray of light enters a piece of glass from air at an angle of 73...
A ray of light enters a piece of glass from air at an angle of 73 degrees to the normal. nair = 1.000 and nglass = 1.50, (a) What is the angle of the refracted ray in the glass (b) What is the critical angle for total internal reflection within the glass? Please explain your answer and upload a clear photo or explanation! Thank you.
A ray in glass is incident onto a water-glass interface, at an angle of incidence equal...
A ray in glass is incident onto a water-glass interface, at an angle of incidence equal to half the critical angle for that interface. The indices of refraction for water and the glass are 1.33 and 1.88, respectively. The angle that the refracted ray in the water makes with the normal is closest to: a) 23 degrees b) 33 degrees c) 28 degrees d) 38 degrees e) 43 degrees
A ray of yellow light crosses the boundary between glass and air, going from the glass...
A ray of yellow light crosses the boundary between glass and air, going from the glass into air. If the angle of incidence is 25°, what is the angle of refraction? (Assume that the index of refraction of glass is 1.5.)
A light ray enters glass from water at an angle of incidence of 30. Calculate the...
A light ray enters glass from water at an angle of incidence of 30. Calculate the angle of refraction in glass. Refractive index of water and glass are 4/3 and 13 respectively. A. 8.185 B. 45.287 C. 38.378 D. 33.288 E. 26.388
A light ray is incident on the horizontal surface of a transparent tank of water at...
A light ray is incident on the horizontal surface of a transparent tank of water at an angle of 50o . a) Find the refraction angle in the water, b) what is the speed of light in water, c) what is the critical angle for total internal reflection for ray going from water back into the air. d) If an object at the bottom of the tank appears 50 cm deep, what is the true depth?
ht is incident on an air-glass-water interface with an angle 0, 22 from the normal.(shown below)....
ht is incident on an air-glass-water interface with an angle 0, 22 from the normal.(shown below). air (n 1) water (n 1.33) a) (2 pts) The refracted light in the glass is at angle of 8, 19. What is the index of refraction of the glass? b) (2 pts) What is 8, refracted angle of the light as it travels from glass to water? c) (2 pts) As the light travels from glass to water, at what angle will the...
1. A ray of light travels from glass (ng-1.52) to air (na-1.0) at θǐ-350. (a) Find...
1. A ray of light travels from glass (ng-1.52) to air (na-1.0) at θǐ-350. (a) Find the angle of refraction. (b) At what angle of incidence does the light under go the total internal reflection?
At an interface between an unknown transparent material and water, a ray of light is incident...
At an interface between an unknown transparent material and water, a ray of light is incident from the water side at an angle of 30.0 degrees to the normal. The refracted ray makes an angle of 25.0 degrees. A) what is the index of refraction for the unknown material? B) what is the critical angle for total internal reflection for the interface described? C) Make a drawing showing the geometry for rays that would undergo total internal reflection at this...
A light ray enters a glass slab at point A at an angle of 56.9° with...
A light ray enters a glass slab
at point A at an angle of 56.9° with respect to the surface normal
and then undergoes total internal reflection at point B. What
minimum value for the index of refraction of the glass can be
inferred from this?
The critical angle for total internal reflection when going from one type of glass to water is 56 degrees. If light has an angle of incidence of 20 degrees when going from the water to the glass, what is the angle of the transmitted ray to the normal of the interface?
A light ray enters glass from water at an angle of incidence of 30. Calculate the angle of refraction in glass. Refractive index of water and glass are 4/3 and 13 respectively. A. 8.185 B. 45.287 C. 38.378 D. 33.288 E. 26.388
ht is incident on an air-glass-water interface with an angle 0, 22 from the normal.(shown below). air (n 1) water (n 1.33) a) (2 pts) The refracted light in the glass is at angle of 8, 19. What is the index of refraction of the glass? b) (2 pts) What is 8, refracted angle of the light as it travels from glass to water? c) (2 pts) As the light travels from glass to water, at what angle will the...
1. A ray of light travels from glass (ng-1.52) to air (na-1.0) at θǐ-350. (a) Find the angle of refraction. (b) At what angle of incidence does the light under go the total internal reflection?
A light ray enters a glass slab
at point A at an angle of 56.9° with respect to the surface normal
and then undergoes total internal reflection at point B. What
minimum value for the index of refraction of the glass can be
inferred from this?
