At an interface between an unknown transparent material and water, a ray of light is incident...

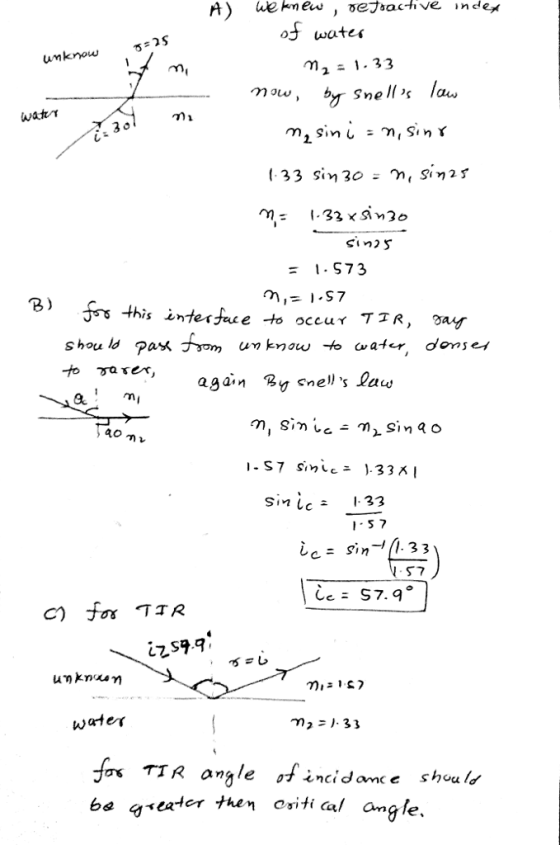

At an interface between an unknown transparent material and water, a ray of light is incident from the water side at an angle of 30.0 degrees to the normal. The refracted ray makes an angle of 25.0 degrees.
A) what is the index of refraction for the unknown material?
B) what is the critical angle for total internal reflection for the interface described?
C) Make a drawing showing the geometry for rays that would undergo total internal reflection at this interface. Label the two media and any angles carefully.
Homework Answers
Add Answer to:
At an interface between an unknown transparent material and
water, a ray of light is incident...
At an interface between an unknown transparent materials and water, a ray of light is incident...
At an interface between an unknown transparent materials and water, a ray of light is incident from the water side at an angle of 45 degree to the normal. The refracted ray makes an angle of 36.8 degree with the normal. A) What is the index of refraction for the unknown materials? B) what is the critical angle for total internal reflection for the interface described? C) make a drawing showing the geometry for rays that would undergo total internal reflection...
P[roble# 1. A light ray is incident normally (.e. perpendicularly on the interface) from WATER on...
P[roble# 1. A light ray is incident normally (.e. perpendicularly on the interface) from WATER on one face of a 30-60-90-degree prism of dense flint glass. The index of refraction of the prism is n2= 1.66. The index of refraction of the WATER is n = 1.33. A. Calculate the angle Bo and show that the ray will Have total internal reflection. B. What are the value of the angles C. If we added solution to the WATER to increase...
P[roble# 1. A light ray is incident normally (i.e. perpendicularly on the interface) from WATER on...
P[roble# 1. A light ray is incident normally (i.e. perpendicularly on the interface) from WATER on one face of a 30-60-90-degree prism of dense flint glass. The index of refraction of the prism is n2=1.66. The index of refraction of the WATER is n=1.33. - A. Calculate the angle bi and show that the ray will Have total internal reflection B. What are the value of the angles C. If we added solution to the WATER to increase its index...
The figure shows the vertical interface between two transparent materials with different indices of refraction. You...
The figure shows the vertical interface between two transparent
materials with different indices of refraction. You do not know the
exact value of
for each material, but you are told that total internal reflection
is possible for light rays incident on the interface from the right
side.
Given this information, which of the numbered rays is a possible
refracted ray for the incident ray shown?
UIDE QUESTIONS 1. If the transparent material has an index of refraction of 1.60, what is...
UIDE QUESTIONS 1. If the transparent material has an index of refraction of 1.60, what is the angle of incidence beyond which total internal reflection occurs? 2. Is it possible for the critical angle to exist when light goes from air ( n = 1.00 ) into water (n 1.33)? Explain your answer. PROBLEMS 1. A ray of light from air, incident at an angle of 60° on top of a transparent surface, is refracted and reflected partly. It is...
water interface (the surface of the lake), it is partly reflected back into the air and...
water interface (the surface of the lake), it is partly
reflected back into the air and partly refracted
or transmitted into the water. This explains why on the surface of
a lake sometimes you see the reflection of the surrounding
landscape and other times the underwater vegetation.
These effects on light propagation occur because light travels at
different speeds depending on the medium. The index of refraction
of a material, denoted by n, gives an indication of the speed of...
A light ray is incident on the horizontal surface of a transparent tank of water at...
A light ray is incident on the horizontal surface of a transparent tank of water at an angle of 50o . a) Find the refraction angle in the water, b) what is the speed of light in water, c) what is the critical angle for total internal reflection for ray going from water back into the air. d) If an object at the bottom of the tank appears 50 cm deep, what is the true depth?
A ray of light is incident on the surface of a transparent material shown below. The...
A ray of light is incident on the surface of a transparent material shown below. The angle of incident is θ1 = 45 deg. The index of refraction of air is n1 = 1. If the angle of refraction is θ2 = 35.7 deg, what is the index of refraction n2 of the material?
REFLECTION AND REFRACTION OF LIGHT t incident on a reflecting surface. Add the reflected ray to...
REFLECTION AND REFRACTION OF LIGHT t incident on a reflecting surface. Add the reflected ray to the figure and Figure label 8.3 shows a ray of light on the angles of incidence and reflection. reflecting surface Figure 8.3 Under what conditions is the angle of refraction greater than the angle of incidence? 2. A light ray is incident on a plane interface between two media. The ray makes an incident angle with the normal of 25.0° in a medium whose...
PH 142 Labs Normal Material 1: Refractive index n Incident Ray 0 1Rflected Ray Material 2:...
PH 142 Labs Normal Material 1: Refractive index n Incident Ray 0 1Rflected Ray Material 2: Refractive index n I Refracted Ray Figure 5.1. Reflection and refraction of a light ray at the interface of two optically different media.
P[roble# 1. A light ray is incident normally (.e. perpendicularly on the interface) from WATER on one face of a 30-60-90-degree prism of dense flint glass. The index of refraction of the prism is n2= 1.66. The index of refraction of the WATER is n = 1.33. A. Calculate the angle Bo and show that the ray will Have total internal reflection. B. What are the value of the angles C. If we added solution to the WATER to increase...
P[roble# 1. A light ray is incident normally (i.e. perpendicularly on the interface) from WATER on one face of a 30-60-90-degree prism of dense flint glass. The index of refraction of the prism is n2=1.66. The index of refraction of the WATER is n=1.33. - A. Calculate the angle bi and show that the ray will Have total internal reflection B. What are the value of the angles C. If we added solution to the WATER to increase its index...
The figure shows the vertical interface between two transparent
materials with different indices of refraction. You do not know the
exact value of
for each material, but you are told that total internal reflection
is possible for light rays incident on the interface from the right
side.
Given this information, which of the numbered rays is a possible
refracted ray for the incident ray shown?
UIDE QUESTIONS 1. If the transparent material has an index of refraction of 1.60, what is the angle of incidence beyond which total internal reflection occurs? 2. Is it possible for the critical angle to exist when light goes from air ( n = 1.00 ) into water (n 1.33)? Explain your answer. PROBLEMS 1. A ray of light from air, incident at an angle of 60° on top of a transparent surface, is refracted and reflected partly. It is...
water interface (the surface of the lake), it is partly
reflected back into the air and partly refracted
or transmitted into the water. This explains why on the surface of
a lake sometimes you see the reflection of the surrounding
landscape and other times the underwater vegetation.
These effects on light propagation occur because light travels at
different speeds depending on the medium. The index of refraction
of a material, denoted by n, gives an indication of the speed of...
REFLECTION AND REFRACTION OF LIGHT t incident on a reflecting surface. Add the reflected ray to the figure and Figure label 8.3 shows a ray of light on the angles of incidence and reflection. reflecting surface Figure 8.3 Under what conditions is the angle of refraction greater than the angle of incidence? 2. A light ray is incident on a plane interface between two media. The ray makes an incident angle with the normal of 25.0° in a medium whose...
PH 142 Labs Normal Material 1: Refractive index n Incident Ray 0 1Rflected Ray Material 2: Refractive index n I Refracted Ray Figure 5.1. Reflection and refraction of a light ray at the interface of two optically different media.
