Determine if the OCS molecule is polar or non-polar. Draw in the net dipole moment. I...

Question

Question

Determine if the OCS molecule is polar or non-polar. Draw in the net dipole moment. I...

Determine if the OCS molecule is polar or non-polar. Draw in the net dipole moment. I am confused on how to determine the directions of the dipole arrows.

science chemistry

Add a comment Improve this question Transcribed image text

Answer 1

Answer #1

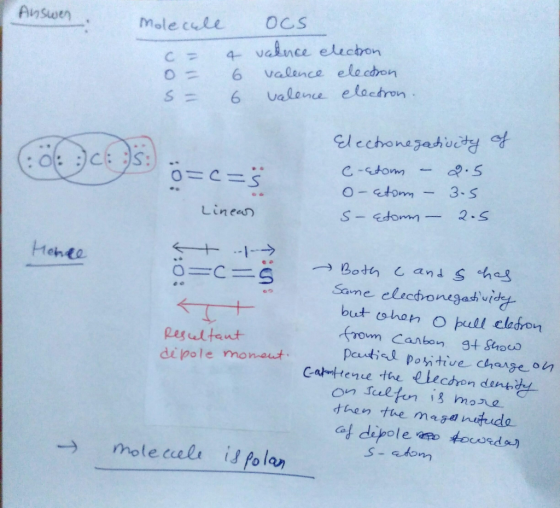

Answen Molecull c = o= s = 4 6 6 OCS valence electron valence electron valence electron 0 ::: ö=c=s Electronegativity of e-st

Add a comment

Answer 2

Similar Homework Help Questions

Explain why carbon tetrachloride is a non polar (has a net zero dipole moment) molecule while...

Explain why carbon tetrachloride is a non polar (has a net zero dipole moment) molecule while chloroform is polar molecule.
A CO2 molecule contains two polar bonds, but the net dipole moment is zero. It is because

A CO2 molecule contains two polar bonds, but the net dipole moment is zero. It is because (a) the molecule has symmetrical linear geometry and dipole moments cancel out each other (b) the molecule is non-linear (c) the electronegativity difference between the two atoms is too large (d) the electronegativity difference between the two atoms is too small
a ) Draw an isomer of C2Cl2 that would result in a non-zero dipole moment, and...

a ) Draw an isomer of C2Cl2 that would result in a non-zero dipole moment, and explain why it has a dipole moment. Also, please draw the dipole moment. The zero dipole moment structure is Cl - C triple bond C - Cl b ) what structural features are required to generate a structure with a zero dipole moment for a molecule containing more than one highly polar bond?

Compounds: Name & Condensed structure Polar bonds? Polar or Non- polar Molecule? Dipole moment (D) (YES...

Compounds: Name & Condensed structure Polar bonds? Polar or Non- polar Molecule? Dipole moment (D) (YES or NO) Water: Yes Polar Molecule 1.8546 d H2O Hexane: No 0.08 d Non-Polar Molecule CH3CH2)4CH3 Ethanol: Yes Polar Molecule CH3CH2OH Acetone: CH3C(EOẠCH Classify the substances from the least polar to the most polar: Least Polar Most Polar What are the dominant intermolecular forces occurring between molecules of each of the substances? Water: Ethanol: Acetone: What are the dominant intermolecular forces occurring between molecules...
Among BeF2, BF3, NH3 and CCI4, the molecule with net dipole moment (polar) is

4. Among BeF2, BF3, NH3 and CCI4, the molecule with net dipole moment (polar) is: (you need to know the Lewis structure of those molecules) a) BeF2 b) BF3 C) NH3 d) CCI4 5. According to VSEPR theory, (a) the non-bonding electron pairs (lone pairs) only decide the structure of the molecule (b) the bonding pairs only decide the structure of the molecule (c) the lone pairs and bonding pairs both decide the structure of the molecule (d) none of these
Among BeF2, BF3, NH3, and CCI4, the molecule with net dipole moment (polar) is

4- Among BeF2, BF3, NH3, and CCI4, the molecule with net dipole moment (polar) is: (you need to know the Lewis structure of those molecules) a) BeF2 b) BF3 c) NH3 d) CCI4 5- According to VSEPR theory, (a) the non-bonding electron pairs (lone pairs) only decide the structure of the molecule (b) the bonding pairs only decide the structure of the molecule (c) the lone pairs and bonding pairs both decide the structure of the molecule (d) none of these 6- In which of the followings, the central atom is...

A molecule which contains polar bonds will always have a net dipole moment greater than zero

A molecule which contains polar bonds will always have a net dipole moment greater than zero. True False
How do you determine whether a molecule is polar? Choose all that apply. Determine whether the molecule has...

How do you determine whether a molecule is polar? Choose all that apply. Determine whether the molecule has resonance structures. Determine whether the molecule contains nonpolar bonds. Draw the Lewis structure for the molecule and determine the molecular geometry. Determine whether the polar bonds add together to form a net dipole moment. Determine whether the molecule contains polar bonds.
Is it possible for a molecule to have no polar bonds and a net dipole?

Is it possible for a molecule to have no polar bonds and a net dipole? Which of the molecules, if any, have no polar bonds and a net dipole?

Draw all dipole arrows and indicate which of the four molecules has a net dipole moment...

Draw all dipole arrows and indicate which of the four molecules has a net dipole moment (dipole arrows that do not cancel out. a) CO2 b) SF4 c) XeF4 d) CF4
