Draw all dipole arrows and indicate which of the four molecules has a net dipole moment...

Question

Question

Draw all dipole arrows and indicate which of the four molecules has a net dipole moment (dipole arrows that do not cancel out.

a) CO₂

b) SF₄

c) XeF₄

d) CF₄

science chemistry

Answer 1

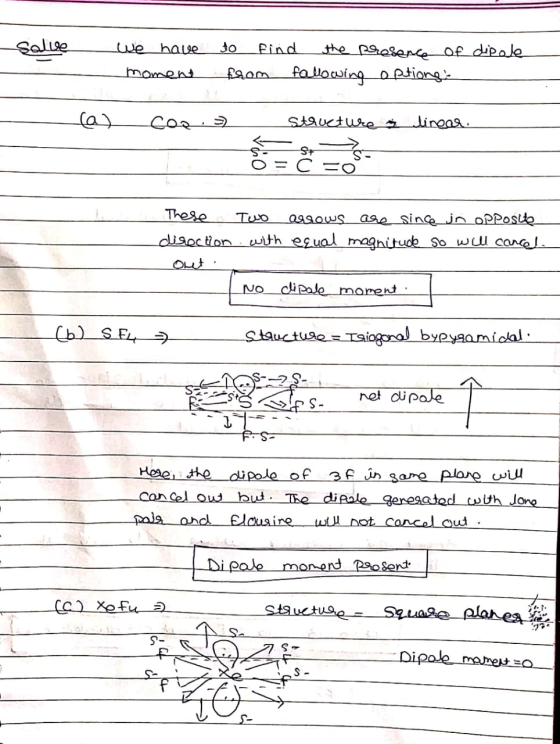

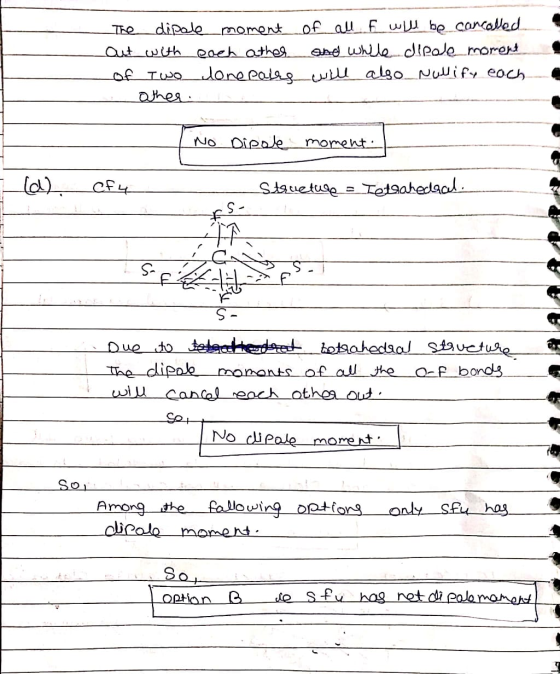

Answer #1

Hope This Answer Helps You.

Please Do Like and Upvote.

Thank You.

Best of Luck.

Answer 2
