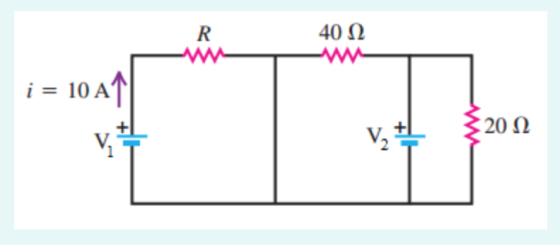

Reference the circuit shown below. (Assume V1=100V and V2=160V)
A) Calculate the resistance of R.
B)
Calculate the current through the 40 Ω resistor. (Assume that the batteries have no internal resistance.)
C) Calculate the power supplied by the 160 V battery. (Assume that the batteries have no internal resistance.)

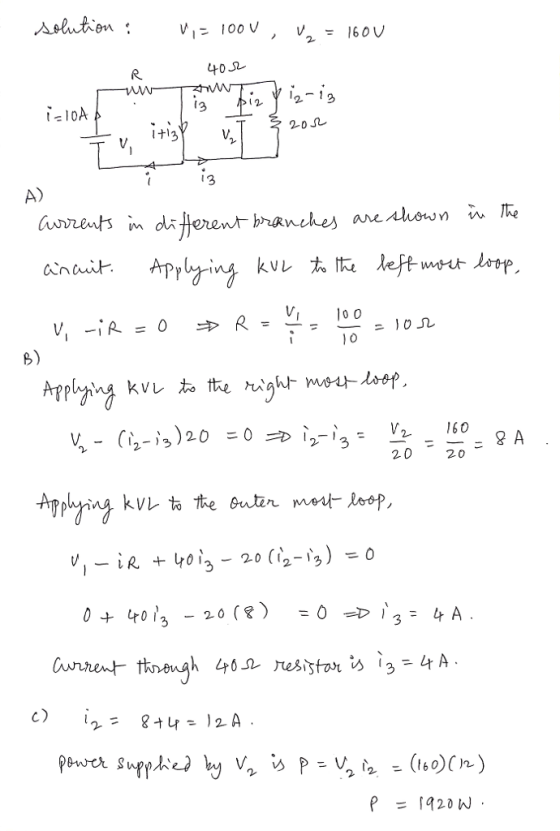

Homework Answers
Add Answer to:
Reference the circuit shown below. (Assume V1=100V and
V2=160V)
A) Calculate the resistance of R.
B)...
